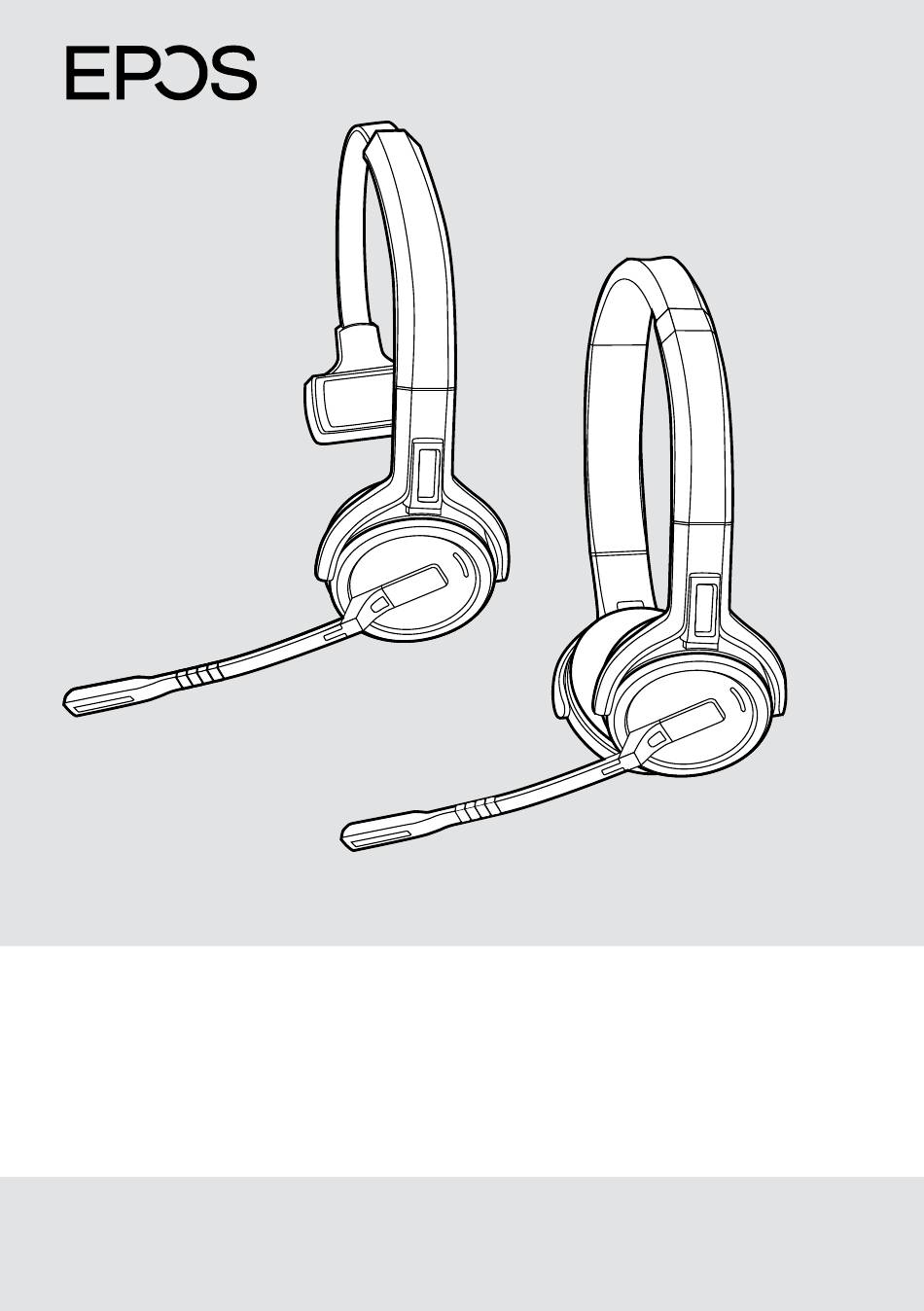

- Page 1 IMPACT SDW 30 HS IMPACT SDW 60 HS Headset: Replacing the rechargeable battery pack Disassembly / Assembly Instructions...
-
Page 2: Table Of Contents
Contents Safety instructions ������������������������������������������������������������������������������������������������������������2 General ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 2 Safety instructions for rechargeable batteries ������������������������������������������������������������������������ 3 Disassembling the rechargeable battery pack �����������������������������������������4 Required material ��������������������������������������������������������������������������������������������������������������������������������������������� 4 Opening the battery compartment �������������������������������������������������������������������������������������������������� 4 Removing the rechargeable battery ������������������������������������������������������������������������������������������������ 5 Assembling the new battery pack �����������������������������������������������������������������������6 Testing the battery and final adjustments �����������������������������������������������������8... -
Page 3: Safety Instructions
Safety instructions Safety instructions General Always check the safety and testing regulations that are § § currently valid for your country and abide by the following regulations: • Repair-related (e�g� in accordance with VDE 0701 in Germany)� Device-related in accordance with IEC 62368-1� •... -
Page 4: Safety Instructions For Rechargeable Batteries
Safety instructions Safety instructions for rechargeable batteries WARNING! In extreme cases, abuse or misuse of Lithium-Polymer battery pack can lead to: explosion, fire, heat or smoke or gas� Do not crush, puncture, short circuit, disassemble, expose to moisture, > heat or store above 70°C/158°F or dispose of in fire or water� Only use the battery pack for designated product(s)�... -
Page 5: Disassembling The Rechargeable Battery Pack
Disassembling the rechargeable battery pack Disassembling the rechargeable battery pack Required material new Battery pack for SDW 30 HS | SDW 60 HS – ID No� AHB732038TPCT • • Tool such as a small plastic rod and paper clip for SDW 60 HS Opening the battery compartment CAUTION! Damage to the product due to improper handling! -
Page 6: Removing The Rechargeable Battery
Disassembling the rechargeable battery pack Removing the rechargeable battery SDW 30 HS SDW 60 HS Use a plastic tool (e�g� small plastic lifting rod) to lift the rechargeable battery� > Please note, that the battery is attached with an adhesive� SDW 30 HS SDW 60 HS Remove the rechargeable battery�... -
Page 7: Assembling The New Battery Pack
Assembling the new battery pack Assembling the new battery pack SDW 30 HS SDW 60 HS Rotate the battery so that the marking signs are visible at the top� > Insert the connector plug of the new rechargeable battery into the connection >... - Page 8 Assembling the new battery pack SDW 30 HS SDW 60 HS Insert the battery and assure that the marking signs are visible at the top� Place > the battery centered to secure an air gap around it� Make sure that the wires are aligned and not crossing over each other� Gently >...
-
Page 9: Testing The Battery And Final Adjustments
Testing the battery and final adjustments Testing the battery and final adjustments Test the function of the headset: Press the Hook button to switch on the > headset� The LED lights up blue� Charge the battery for at least 20 minutes before using the headset� See User >... - Page 10 Testing the battery and final adjustments DSEA A/S Kongebakken 9, DK-2765 Smørum, Denmark www.eposaudio.com Publ. 07/21, A05...
