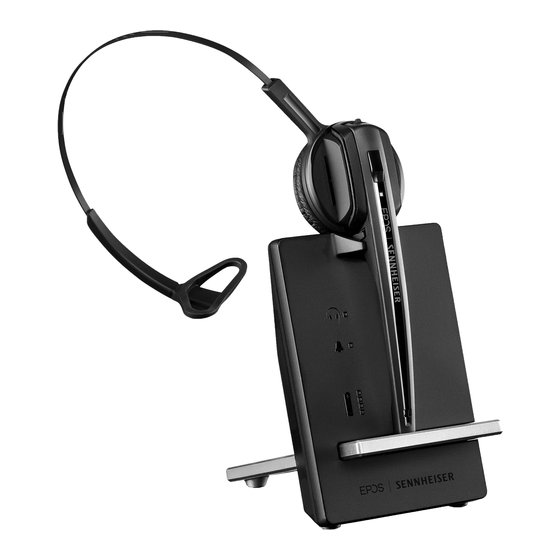

IMPACT D 10 Series
Wireless DECT Headset System
User Guide
1
Contents
Contents
Package contents .......................................................................................................................................................................................................2
Base stations with components ...................................................................................................................................................................................................................... 2
Headsets with components................................................................................................................................................................................................................................ 2
Product overview ........................................................................................................................................................................................................3
Overview of the base station ............................................................................................................................................................................................................................ 3
Overview of the headset....................................................................................................................................................................................................................................... 5
Overview of the buttons ...................................................................................................................................................................................................................................... 6
Overview of the LEDs ...............................................................................................................................................................................................................................................7
Setting up and connecting the base station ..........................................................................................................................................8
Setting up the base station .................................................................................................................................................................................................................................8
Connecting the base station to the mains power supply ..........................................................................................................................................................8
Connecting the base station to a fixed line phone ........................................................................................................................................................................ 9
Connecting the base station to a computer .......................................................................................................................................................................................11
Charging the headset .............................................................................................................................................................................................................................................11
Individually adjusting the headset ................................................................................................................................................................12
Using the headset with the ear hook ........................................................................................................................................................................................................12
Using the headset with the headband .....................................................................................................................................................................................................13
Configuring the headset system ...................................................................................................................................................................14
Adjusting the headset system using the DIP switches ...............................................................................................................................................................14
Adjusting the audio signal by means of the dial tone .................................................................................................................................................................18
Adjusting the volume of the transmission .............................................................................................................................................................................................18
Adjusting the volume of the ring tone ..................................................................................................................................................................................................... 19
Making calls using the headset .................................................................................................................................................................... 20
Adjusting the volume ............................................................................................................................................................................................................................................20
Muting the headset's microphone ...............................................................................................................................................................................................................21
If you leave the DECT range ........................................................................................................................................................................................................................... 22
Calling via the fixed line phone using the headset ...................................................................................................................................................................... 23
Calling via the computer using the headset ..................................................................................................................................................................................... 25
Making a conference call ..................................................................................................................................................................................................................................27
Charging the headset and storing the headset system ..............................................................................................................29
Charging the headset .......................................................................................................................................................................................................................................... 29
Charging the headset using the optional CH 10 headset charger ............................................................................................................................... 30
Switching the headset system off during extended non-use ........................................................................................................................................... 30
Sharing a workplace ............................................................................................................................................................................................... 31
Using the headset with a third party base station (DECT-GAP telephone) .............................................................................................................31
Cleaning and maintaining the headset system ..................................................................................................................................32
Replacing the ear pads ....................................................................................................................................................................................................................................... 33
Replacing the headset's rechargeable battery ............................................................................................................................................................................... 34
If a problem occurs ... ............................................................................................................................................................................................35
Specifications ............................................................................................................................................................................................................. 37
IMPACT D 10 Series
headset system
Advertisement
Table of Contents
Related Manuals for EPOS SENNHEISER IMPACT D 10 Series
Summary of Contents for EPOS SENNHEISER IMPACT D 10 Series
-
Page 1: Table Of Contents
Contents Contents Package contents ........................................2 Base stations with components ............................................2 Headsets with components..............................................2 Product overview ........................................3 Overview of the base station ............................................3 Overview of the headset............................................... 5 Overview of the buttons ..............................................6 Overview of the LEDs ................................................7 Setting up and connecting the base station ............................8 Setting up the base station ..............................................8 Connecting the base station to the mains power supply ................................8... -
Page 2: Package Contents
Package contents Product overview Package contents Product overview The scope of delivery includes – depending on the product purchased – a base station and/or a headset with Overview of the base station corresponding components. Overview of the front Base stations with components Magnetic holder with charging contacts Link LED... -
Page 3: Overview Of The Headset
Product overview Product overview Overview of the headset Overview of the rear – Phone version Ear hook, adjustable Charging contacts DIP switch row 1 to 6 Microphone ABC switch Audio button volume control Battery compartment Ear piece Set button Microphone ACC socket Handset socket Headset LED... -
Page 4: Overview Of The Buttons
Product overview Product overview Overview of the buttons Overview of the LEDs Overview of the base station LEDs Functions Page Link button Base station Meaning Establishes/disconnects the link between Link LED Active link to the headset headset and base station No link to the headset Accepts/ends a call Headset is muted... -
Page 5: Setting Up And Connecting The Base Station
Setting up and connecting the base station Setting up and connecting the base station Setting up and connecting the base station Connecting the base station to a fixed line phone Check which connection possibility is best suited for your telephone. Follow the instructions in the corresponding chapter. -
Page 6: Connecting The Base Station To A Computer
Connecting the base station to an optional mechanical handset lifter The EPOS HSL 10 II mechanical handset lifter is an optional accessory available from your EPOS partner. The handset lifter allows you to answer calls even when you are away from your desk. -
Page 7: Individually Adjusting The Headset
Individually adjusting the headset Individually adjusting the headset Individually adjusting the headset Using the headset with the headband Using the headset with the ear hook click Remove the ear hook by carefully pulling it upwards. Attach the headset to the headset holder of the headband. -
Page 8: Configuring The Headset System
Configuring the headset system Configuring the headset system Configuring the headset system Adjusting the ring tones of the base station – DIP switches 1 and 2 Adjusting the headset system using the DIP switches Switch position Function Ring tone is off Extra Extra Settings... - Page 9 Configuring the headset system Configuring the headset system Automatically establishing the wireless link between headset and base station (Auto Link) – DIP switch 4 Limiting the volume – DIP switch 6 Switch position Function Switch position Function Manual link establishment Standard limitation When taking the headset out of the base station, you have to manually establish the wireless link between headset and base station.
-
Page 10: Adjusting The Audio Signal By Means Of The Dial Tone
Configuring the headset system Configuring the headset system Adjusting the audio signal by means of the dial tone Adjusting the volume of the ring tone Adjusting the headset‘s ring tone volume and the volume of the acoustic signals click Put on the headset. Press the Link button on the headset. -
Page 11: Making Calls Using The Headset
Making calls using the headset Making calls using the headset Making calls using the headset Changing the direction of the volume up/down function Adjusting the volume CAUTION Hearing damage due to high volumes! Listening at high volume levels for long periods can lead to permanent hearing defects. Set the volume to a low level before putting on the headset. -
Page 12: If You Leave The Dect Range
Making calls using the headset Making calls using the headset If you leave the DECT range Calling via the fixed line phone using the headset Establishing/disconnecting a wireless link If you want to use the headset to accept, make or end calls, you have to establish a wireless link between headset and base station. -
Page 13: Calling Via The Computer Using The Headset
Making calls using the headset Making calls using the headset Calling via the computer using the headset Managing calls using a call control functionality (EHS, HSL 10 II) Accepting a call: You hear a ring tone in the headset. Establishing/disconnecting a wireless link If you want to use the headset to accept, make or end calls, you have to establish a wireless link between headset and base station. -
Page 14: Making A Conference Call
Making calls using the headset Making a conference call Managing calls using the “EPOS Connect” call control functionality Accepting a call: The softphone signals that you are receiving a call. You hear a ring tone in the headset. The headset system allows you to make a conference call with up to 4 D 10 series headsets. -
Page 15: Charging The Headset And Storing The Headset System
Making calls using the headset Charging the headset and storing the headset system Charging the headset and storing the headset system MASTER GUEST 1 Charging the headset Always store the headset in the base station to ensure that it is fully charged when needed. The intelligent battery charging technology prevents over-charging. -
Page 16: Charging The Headset Using The Optional Ch 10 Headset Charger
Sharing a workplace The CH 10 headset charger is an optional accessory available from your EPOS partner. The CH 10 allows you to charge The headsets and base stations of the D 10 series are compatible with each other. If, for example, you share a workplace, additional D 10 series headsets, e.g. -
Page 17: Cleaning And Maintaining The Headset System
Cleaning and maintaining the headset system Cleaning and maintaining the headset system Replacing the ear pads For reasons of hygiene, you should replace the ear pads from time to time. Spare ear pads are available from your EPOS partner. CAUTION Liquids can damage the electronics of the product! Liquids entering the housing of the device can cause a short circuit and damage the electronics. -
Page 18: Replacing The Headset's Rechargeable Battery
Base station is not connected to Connect the base station to the mains In extreme cases, abuse or misuse of rechargeable batteries or non-original EPOS batteries can lead to explosion, fire the base station but the the mains power supply power supply. -
Page 19: If A Problem Occurs
180 m please contact your local EPOS partner for assistance. in office buildings: up to 55 m To find a EPOS partner in your country, search at www.eposaudio.com. Rechargeable battery (built-in) Lithium Polymer; 3.7 V; 215 mAh Output power... - Page 20 Specifications DSEA A/S Kongebakken 9, DK-2765 Smørum, Denmark www.eposaudio.com Publ. 04/21, A07 IMPACT D 10 Series headset system...
