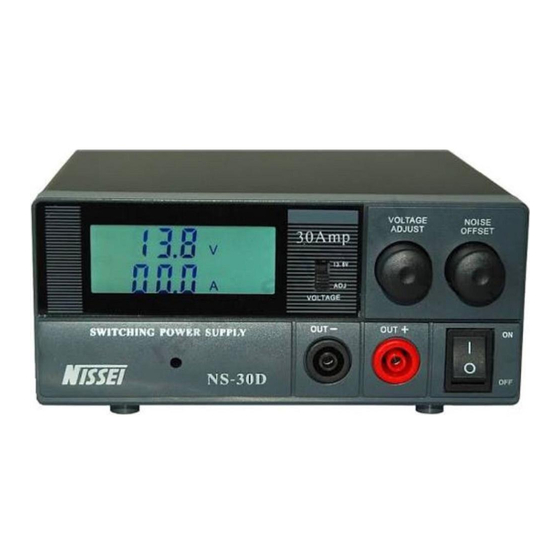

- Page 1 SWITCHING MODE f the ely， DC REGULATED POWER SUPPLY input Digital display meter unit urned event Model: NS-30D unit make INSTRUCTION MANUAL...
- Page 2 INTRODUCTION NS-30D is a high efficiency， compact， lightweight， high performance switching power supply. It is also engineered to minimize the noise specifically for the communication. Even when the noise occurs， it can be eliminated by the Noise-Offset control. Many convenient...
- Page 3 rmance noise curs， enient power 9. Output terminal：30A max; Red positive; black negative. 10.Cooling fan 11.FUSE SPECIFICATIONS 1. input voltage： 220VAC 2. output voltage： 13.8VDC Adjusts voltage between 9.0 and 15.0 volts. Turn clockwise to increase and counter clockwise to decrease the voltage.
- Page 4 CAUTION 1. Even though the chassis of the unit is negatively grounded， use correct terminals to connect cable. 2. When plugging the unit into a wall outlet，it must be turned off. 3. Place the unit in a dry and well ventilated area. 4.
