INSTRUCTION MANUAL
INTRODUCTION

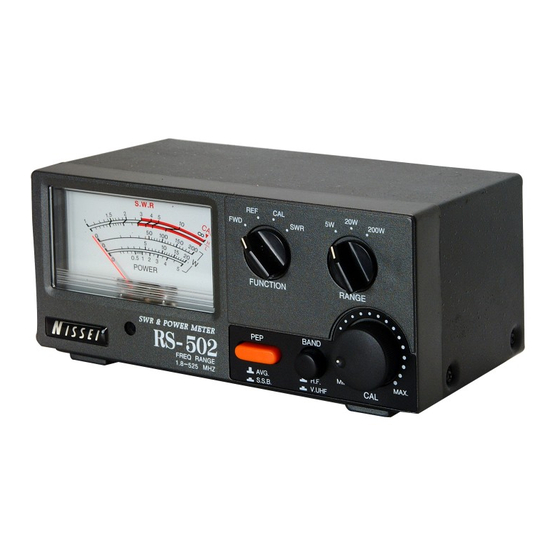

This SWR & POWER meter is a highly accurate RF meter for measuring Forward Power, Reversed Power,
and VSWR .
Main Features:
1. Large meter display for ease of reading.
2. Forward RF power readings (switchable to indicate either average power or Peak Envelope Power [PEP],
for SSB and AM transmitters).
3. Reversed RF power readings.
4. VSWR rations.
5. Illuminated meter.
6. Convenient control layout for ease operation.
SPECIFICATIONS
MODEL
Frequency Range
Power Range
Power Scale
Maximum Power
Accuracy 5W Range
Accuracy 20-200W Range
Minimum Power for SWR
Insertion loss
Input/Output Impedance
Input/Output Connectors
Dimension (W/H/D) mm
Weight (Net)
Accessories
SWR/POWER METER
Model : RS-102, RS-402, RS-502
RS-102
1.8 - 200 MHz
790 g
RS-402
125 - 525 MHz
0 - 200W
5/20/200W
200W
(AVG) +/- 10%
(PEP) +/- 15%
(AVG) +/- 5%
(PEP) +/- 10%
1W
Less than 0.1 dB
50 OHM
PL
190 x 85 x 135
800 g
Operation Manual, 13.8 DC Wire
RS-502
1.8 - 525 MHz
950 g
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nissei RS-102
Summary of Contents for Nissei RS-102
- Page 1 SWR/POWER METER Model : RS-102, RS-402, RS-502 INSTRUCTION MANUAL INTRODUCTION This SWR & POWER meter is a highly accurate RF meter for measuring Forward Power, Reversed Power, and VSWR . Main Features: 1. Large meter display for ease of reading.
- Page 2 <FRONT PANEL> <FRONT & REAR PANEL> 1. Meter Display : Indicates FWD/REV power in watts and VSWR ratio 2. Function switch : Selects FWD/REV power, Calibration, and VSWR 3. Range switch : Selects RF power range of 5/20/200W 4. Calibration control knob : Sets full scale deflection when measuring VSWR 5.
