Viking Microfast M-6 Quick Start Manual

August 29, 1997

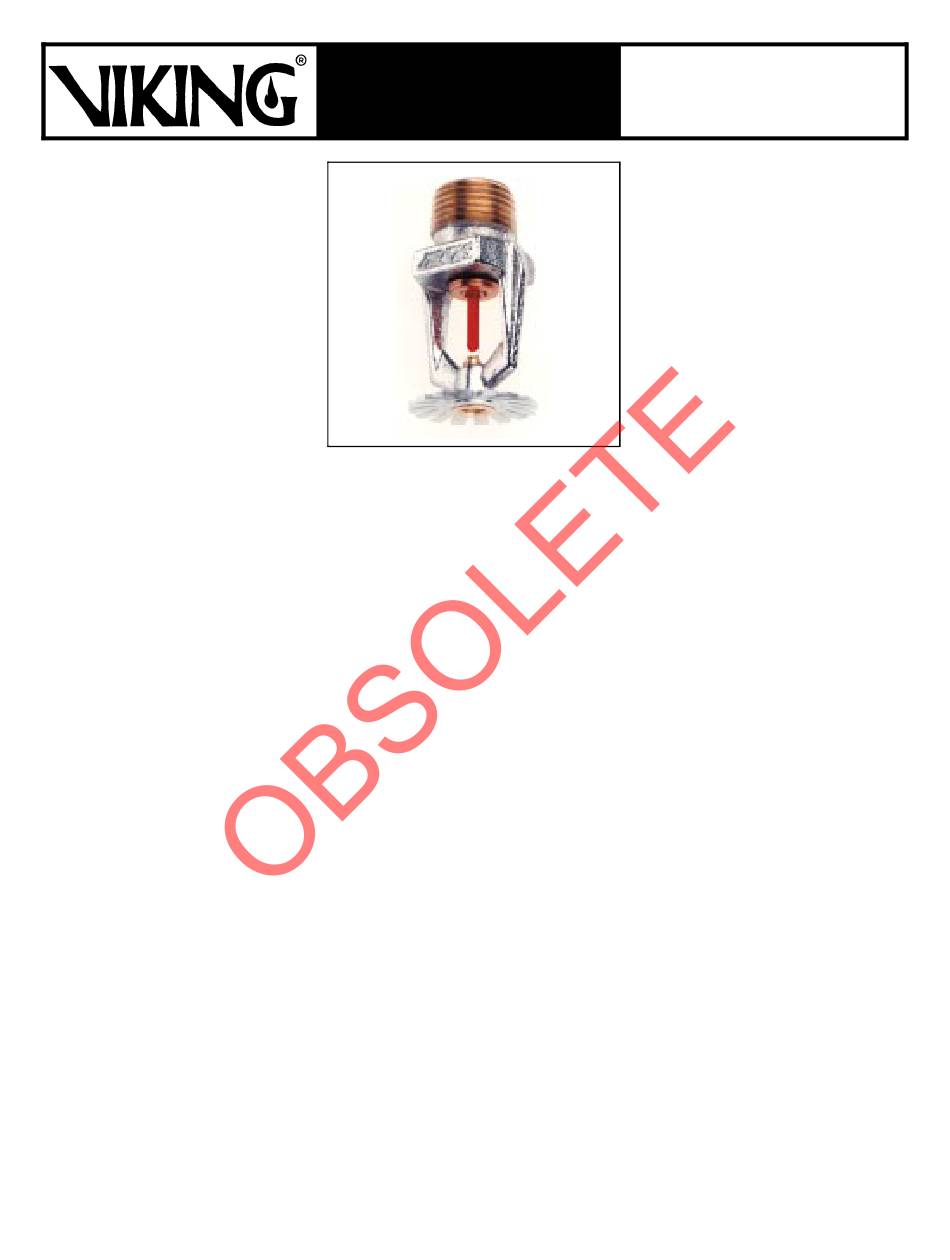

1. PRODUCT NAME
®
VIKING Microfast Model M-6
Low-Flow Residential Pendent
Sprinkler
Sprinkler Base Part No. 10149
Manufactured 1997-
2. MANUFACTURER
THE VIKING CORPORATION
210 N. Industrial Park Road
Hastings, Michigan 49058 USA
Telephone: (616) 945-9501
(800) 968-9501
Fax No: (616) 945-9599
From outside U.S.A.
Telephone: +1 (616) 945-9501
Fax: +1 (616) 945-9599
3. PRODUCT DESCRIPTION
®
The Viking Microfast Model M-6, Low-
Flow Residential Pendent Sprinkler, is a
small, high sensitivity, glass-bulb resi-
dential spray sprinkler. The sprinkler is
available in several finishes, with tem-
perature ratings to meet varying design
requirements. The orifice design, with a
K Factor of 3.1, allows efficient use of
available water supplies for the hydrau-
lically designed fire protection system.
The small rugged 3mm glass bulb, and
special deflector combine speed of op-
eration and area of coverage to meet
residential sprinkler standards, while
providing a pleasing aesthetic appear-
ance. The sprinkler is listed for use be-
low smooth, flat horizontal ceilings only.
During fire conditions, the heat sensitive
liquid in the glass bulb expands, causing
the glass to shatter, releasing the pip cap
and sealing spring assembly. The water
flowing through the sprinkler orifice
strikes the sprinkler deflector forming a
uniform spray pattern to extinguish or
control the fire.
4. TECHNICAL DATA
See chart (Page 150 c) for approvals.
See chart for minimum water supply re-
quirements and maximum areas of
coverage.
Glass Bulb Fluid Temperature rated to -
0 0
65 F (-55 C)
Rated to 175 PSI (1 207 kPa) water
working pressure
Factory tested hydrostatically to 500 PSI
(3 448 kPa)
Spring: USA Patent No. 4,167,974
Bulb: USA Patent No. 4,796,710
Units of measure in parentheses may be approximations.
Form No. 082197
TECHNICAL DATA
Testing: USA Patent No. 4,831,870
Thread Size: 1/2" (15 mm) NPT
Orifice Size: Nominal 3/8"
K Factor: 3.1 (4,5 Metric*)
*See footnote 8 on Approval Chart
(Page 150 c)
SPRINKLER MATERIALS:
Frame: Brass Castings
UNS-C84400
Deflector: Copper UNS-C19500
Bulb: Glass
Nominal 3 mm diameter
®
Tape
Seal: Teflon
Spring: Nickel Alloy
Screw: Brass UNS-C36000
Pip Cap: Copper UNS-C14500
ACCESSORIES:
Sprinkler Wrench
Standard: P/N 05000CM
Recessed: P/N 07398W
Refer to "SPRINKLER ACCESSORIES"
for escutcheons.
5. AVAILABILITY AND SERVICE
Viking Sprinklers are available through
a network of Domestic, Canadian, and
International Distributors. See the Yel-
low Pages of the telephone directory
(listed under "Sprinklers Automatic
Fire") or write to The Viking Corporation,
Hastings, Michigan USA Attention:
Sales Department.
6. GUARANTEES
For details of warranty, refer to Viking's
current price schedule or contact Viking
directly.
7. INSTALLATION
WARNING: Viking sprinklers are manu-
factured and tested to meet the rigid
requirements of approving agencies.
The sprinklers are designed to be in-
stalled in accordance with recognized
Sprinkler 150 a
®
Microfast MODEL M-6
LOW-FLOW RESIDENTIAL
PENDENT SPRINKLER
installation standards. Deviation from
the standards or any alteration to the
sprinkler after it leaves the factory in-
cluding, but not limited to, painting, plat-
ing, coating, or modification, may render
the sprinkler inoperative and will auto-
matically nullify the approval and any
guarantee made by The Viking Corpora-
tion.
A. Sprinklers are to be installed in ac-
cordance with the latest published
standards of the National Fire Protec-
tion Association, Factory Mutual,
Loss Prevention Council, Assemblee
Pleniere, Verband der Sachver-
sicherer or other similar organiza-
tions, and also with provisions of gov-
ernmental codes, ordinances, and
standards whenever applicable. For
conditions not specifically covered by
the Standards, refer to the "Viking
Residential Installation Guide". Fi-
nal approval and acceptance of all
Residential Sprinkler Installations
must be obtained from the Author-
ity Having Jurisdiction. Residen-
tial sprinklers are special service
sprinklers for use in one and two fam-
ily dwellings, mobile homes, and resi-
dential portions of other occupancies
where allowed. The use of Residen-
tial Pendent sprinklers may be lim-
ited due to occupancy and hazard.
The minimum flow rate indicated for a
listed area of coverage must be pro-
vided at the sprinkler, therefore, the
system must be hydraulically calcu-
lated. Refer to the Authority Having
Jurisdiction prior to installation.
B. Sprinklers must be handled with care.
They must be stored in a cool, dry
place in their original container.
Never install sprinklers that have
been dropped or damaged in any
way. Never install any glass bulb
sprinkler if the bulb is cracked or if
there is a loss of liquid from the bulb.
Never install sprinklers which have
been exposed to temperatures in ex-
cess of maximum ambient tempera-
ture allowed. Such sprinklers should
be destroyed immediately.
C. Corrosion resistant sprinklers must
be installed when subject to corrosive
atmospheres. Viking Microfast
Residential Pendent Sprinklers are
not intended for use in corrosive en-
vironments.
D. Use care when locating sprinklers
near fixtures that can generate heat.
Do not install sprinklers where they
will be exposed to temperatures that
exceed the maximum recommended
New Page issued August 29, 1997
®
