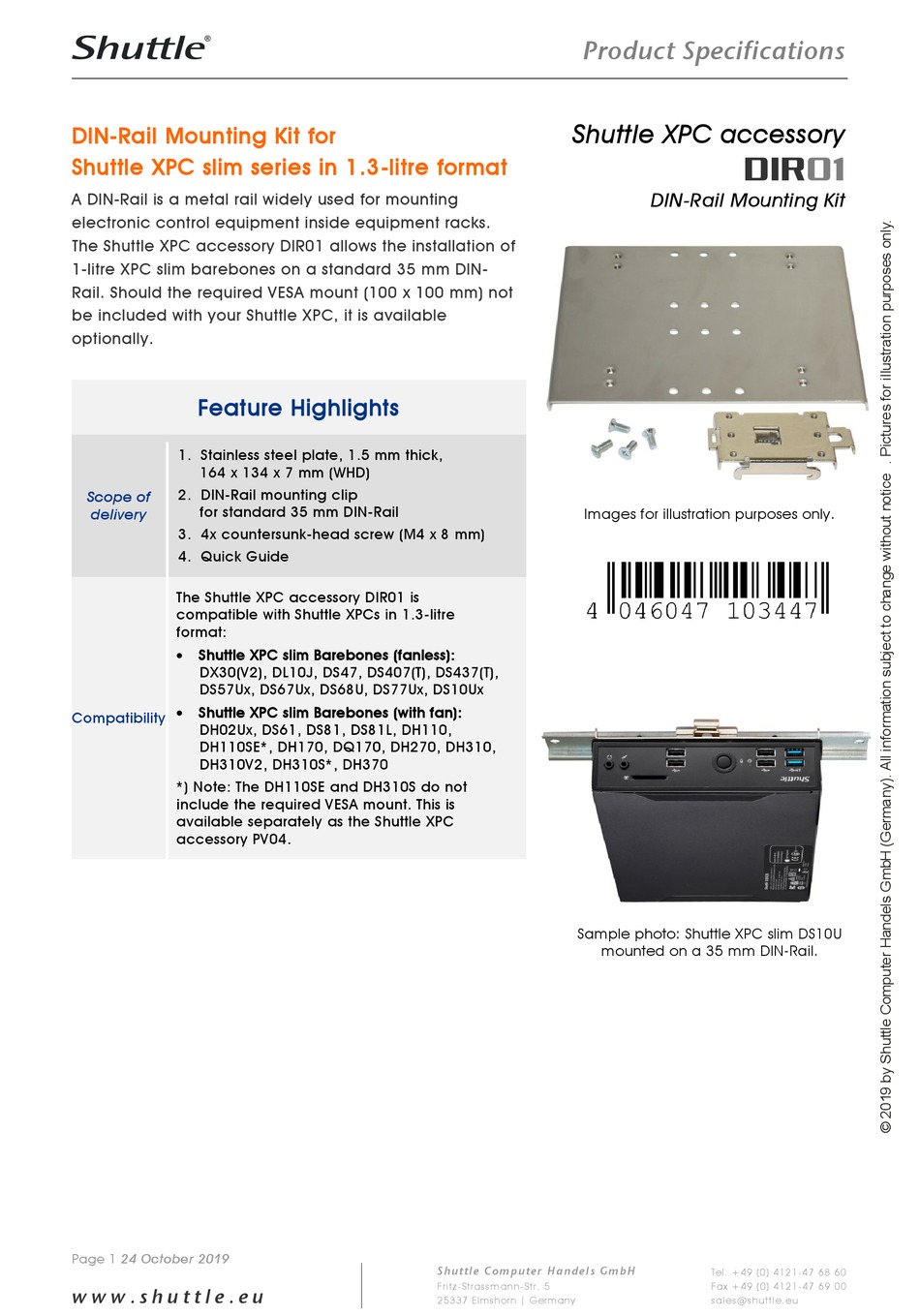

Shuttle DIR01 Quick Installation Manual

DIN-Rail Mounting Kit for
Shuttle XPC slim series in 1.3-litre format
A DIN-Rail is a metal rail widely used for mounting
electronic control equipment inside equipment racks.
The Shuttle XPC accessory DIR01 allows the installation of
1-litre XPC slim barebones on a standard 35 mm DIN-
Rail. Should the required VESA mount (100 x 100 mm) not
be included with your Shuttle XPC, it is available
optionally.

Feature Highlights

1. Stainless steel plate, 1.5 mm thick,
164 x 134 x 7 mm (WHD)
2. DIN-Rail mounting clip
Scope of
for standard 35 mm DIN-Rail
delivery
3. 4x countersunk-head screw (M4 x 8 mm)
4. Quick Guide
The Shuttle XPC accessory DIR01 is
compatible with Shuttle XPCs in 1.3-litre
format:
 Shuttle XPC slim Barebones (fanless):
DX30(V2), DL10J, DS47, DS407(T), DS437(T),
DS57Ux, DS67Ux, DS68U, DS77Ux, DS10Ux

Shuttle XPC slim Barebones (with fan):

Compatibility

DH02Ux, DS61, DS81, DS81L, DH110,
DH110SE*, DH170, DQ170, DH270, DH310,
DH310V2, DH310S*, DH370
*) Note: The DH110SE and DH310S do not
include the required VESA mount. This is
available separately as the Shuttle XPC
accessory PV04.
Page 1 24 October 2019
w w w . s h u t t l e . e u

Product Specifications

Shuttle XPC accessory
Images for illustration purposes only.
Sample photo: Shuttle XPC slim DS10U
mounted on a 35 mm DIN-Rail.
