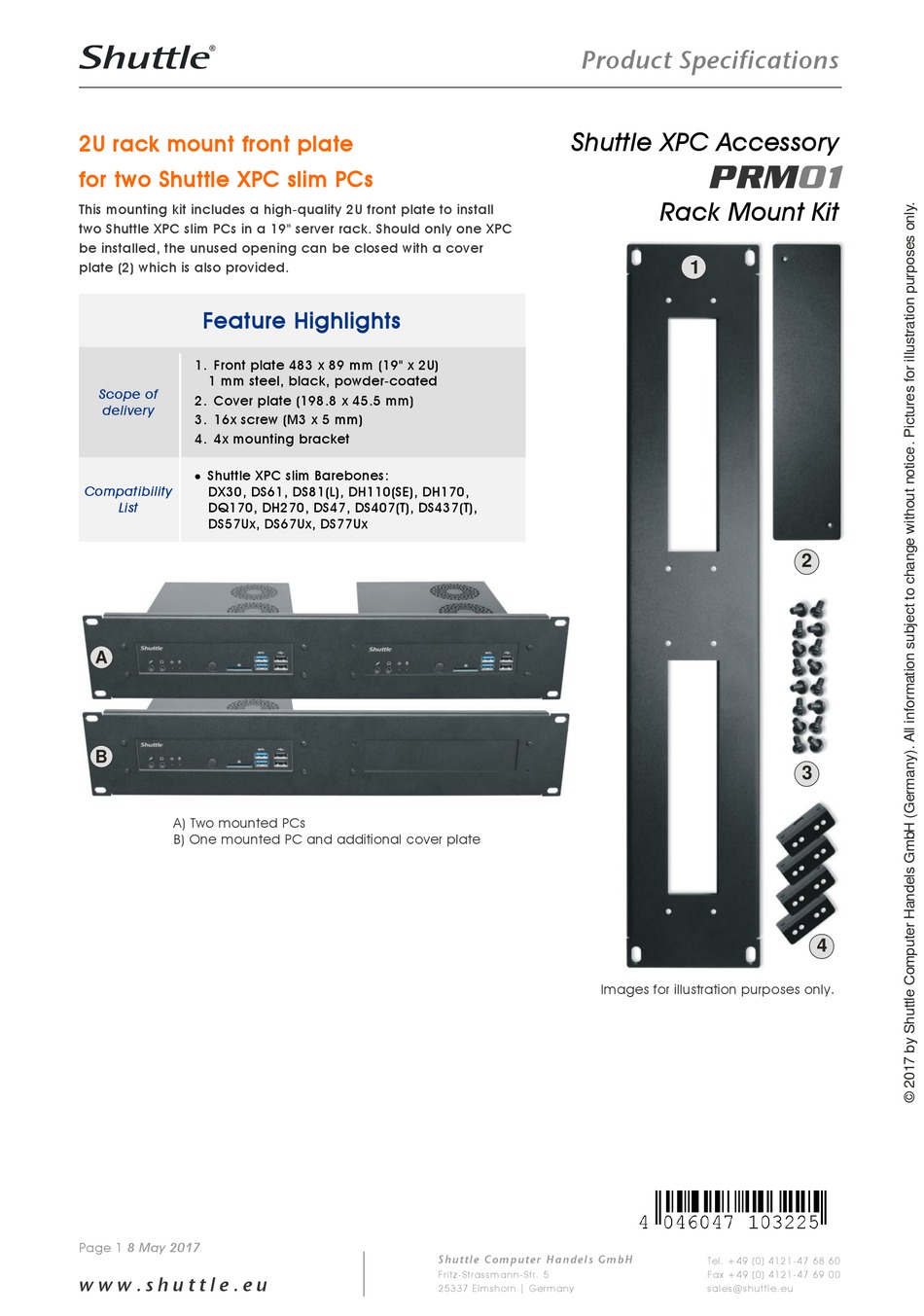

Shuttle PRM01 Product Specifications

2U rack mount front plate
for two Shuttle XPC slim PCs
This mounting kit includes a high-quality 2U front plate to install
two Shuttle XPC slim PCs in a 19" server rack. Should only one XPC
be installed, the unused opening can be closed with a cover
plate (2) which is also provided.

Feature Highlights

1. Front plate 483 x 89 mm (19" x 2U)
1 mm steel, black, powder-coated
Scope of
2. Cover plate (198.8 x 45.5 mm)
delivery
3. 16x screw (M3 x 5 mm)
4. 4x mounting bracket
 Shuttle XPC slim Barebones:
Compatibility DX30, DS61, DS81(L), DH110(SE), DH170,
List
DQ170, DH270, DS47, DS407(T), DS437(T),
DS57Ux, DS67Ux, DS77Ux
A
B

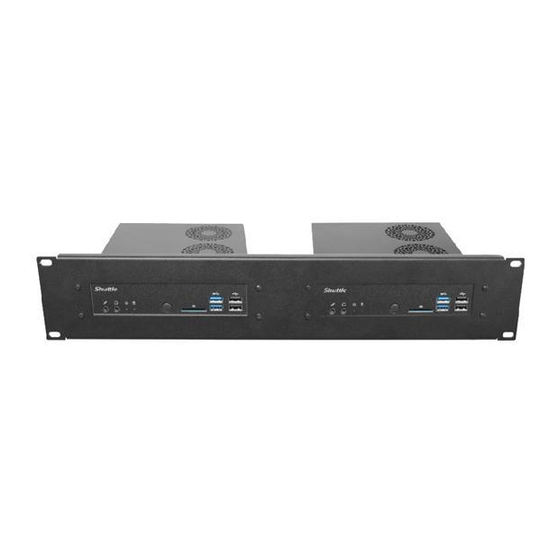

A) Two mounted PCs
B) One mounted PC and additional cover plate
Page 1 8 May 2017
w w w . s h u t t l e . e u
Product Specifications
Shuttle XPC Accessory
Images for illustration purposes only.
S h u t t l e C o m p u t er Ha n d e l s G m bH
Fr it z -St r assm an n -St r . 5
25337 Elmsh orn | German y
PRM01
Rack Mount Kit
1
2
3
4
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
sale s@sh u t t le.eu
