VESA mount accessory PV04 for
DH110SE and other models of the XPC
slim series
The PV04 VESA75/100 wallmount allows many Shuttle 1.3l models of the
XPC slim series to be installed on to walls or just affixed on the rear
side of a monitor which is particularly interesting for the industry
segment, company buildings and public institutions.
Feature Highlights

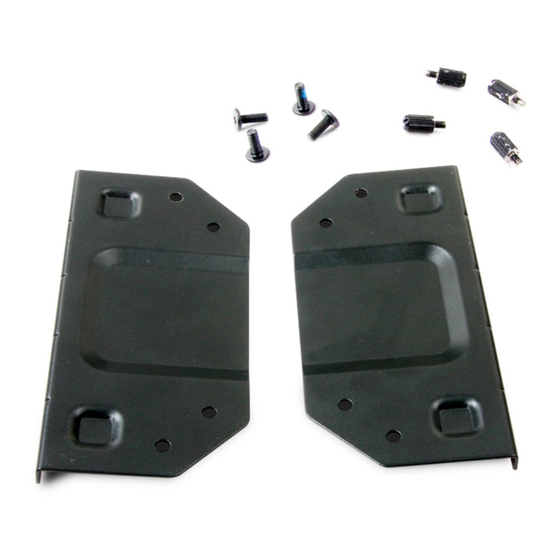

VESA mount (two black metal brackets,
•
ca. 120 x 57.5 x 9 mm)
Four thumbscrews M3 x 5 mm (screws
•
Scope of
together VESA mount and PC)
delivery
Four screws M4 x 10 mm (to fix the VESA
•
mount to the external device)
Quick installation guide
•
Supported VESA
Supports 75 x 75 mm and 100 x 100 mm
•
Standard
standards
Compatible with Shuttle XPC slim
•
DH110SE
Also suitable as a spare part for the
•
following models that already include a
Compatibility
VESA mount as standard: DX30, DS61,
DS81(L), DH110, DH170, DQ170, DH270,
DS47, DS407(T), DS437(T), DS57Ux,
DS67Ux, DS77Ux
Article number:
PV04
Order number:
POI-PV04
Page 1 | 25 January 2017
w w w . s h u t t l e . e u
Product Specification
Shuttle XPC accessory
Images for illustration purposes only.
S h u t t l e C o m p u t er Ha n d e l s G m bH
Fr it z-St r assm an n -St r . 5
25337 Elmsh orn | German y
PV04
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
sale s@ sh u t t le.eu
Advertisement
Table of Contents
Related Manuals for Shuttle PV04
Summary of Contents for Shuttle PV04
- Page 1 DH110SE and other models of the XPC slim series The PV04 VESA75/100 wallmount allows many Shuttle 1.3l models of the XPC slim series to be installed on to walls or just affixed on the rear side of a monitor which is particularly interesting for the industry segment, company buildings and public institutions.
- Page 2 Product Specification XPC accessory PV04 – Installation Guide (1) Due to safety reasons, please turn off your computer completely first and unplug it from the power supply. (2) Use four screws to fasten the VESA mount brackets on the rear of a suitable monitor.
- Page 3 Product Specification Page 3 | 25 January 2017 S h u t t l e C o m p u t er Ha n d e l s G m bH Tel. +49 (0) 4121-47 68 60 Fr it z-St r assm an n -St r . 5 Fax +49 (0) 4121-47 69 00 w w w .
