Sminn BOX M GSM B Instruction Manual

TECHNICAL SPECIFICATIONS
BOX M GSM B
Relays 2 x 1 amp relays
User memory Depends on model
GSM Module LTE FDD B1/B3/B7/B8/B20/B28
WCDMA B1/B8
GSM/EDGE B3/B8
SMS
Text mode
SIM
On-board connector
Power supply
230VAC
Antenna
1/4-1/8 lambda MMCX included
Operating temperature
-20ºC / +65ºC
Dimensions
182x145x65 mm. Antenna not included
Sealing
IP54 (IP65 with cable glands)
Enclosure ABS
1
2
3
SIM
4
10
6
9
8
INDICATIONS
The panel is equipped with visual and acoustic signals to indicate its status.
STATUS Led STATUS Led GSM ON BUZZ
SIM not inserted ON OFF OFF
No MASTER ON ON Beep on start-up
PASWORD 0000 Slow flashing ON Beep on start-up
Configured OFF ON Beep on start-up
CE DECLARATION OF CONFORMITY
The company ELSON ELECTRÓNICA, S.A.
Pol. Ind. Torrelarragoiti, P6 · A3
48170 Zamudio - Vizcaya
(SPAIN)
Declares that
The product BXM GSMB receiver
Manufactured by ELSON ELECTRÓNICA, S.A.
Under the trademark SMINN
For use in Residential environments,
Commercial or Light Industry
It complies with the relevant provisions of the following directives:
Directive 2014/35/EU Low Voltage
Directive 2014/30/EU Electromagnetic compatibility
Directive 2014/53/EU Radio equipment
Directive 2011/65/EU RoHs
Directive 2012/19/EU WEEE
Zamudio on 2022-20-07
José Miguel Blanco Pérez
Technical Director
LIMITATION OF THE USE OF RECEIVERS
Use in applications other than those specified is not warranted.
THE INSTRUCTIONS FOR USE OF THIS EQUIPMENT MUST BE GIVEN TO THE USER WHO WILL ALWAYS
HAVE THEM IN HIS POSSESSION. IN CASE OF LOSS, THE USER MAY REQUEST A COPY OR DOWNLOAD
THEM DIRECTLY FROM THE WEBSITE WWW.SMINN.COM.
The manufacturer reserves the right to change equipment specifications and this manual without prior notice.
The equipment may only be operated by trained and/or properly instructed personnel.
WARRANTY
This product has been subjected during its manufacturing process to a complete TEST that guarantees its
reliability and proper functioning.
The manufacturer grants the product a warranty of 36 months from the date printed on the product and against
any anomaly that the product may present in its appearance or functionality.
Excluded from this warranty are damages caused by third parties, natural causes (flood, fire, lightning, etc.),
improper handling or installation, vandalism and in general any cause not attributable to the manufacturer.
The scope of the guarantee is limited to the repair or replacement of the damaged element. Excluded from the
guarantee are the expenses that could be derived from assembly, travel, transport, parts subject to wear and
tear, etc. and in general any expenses that are not for the repair or replacement of the damaged element of the
equipment.The installer/distributor must request from the manufacturer an RMA number or authorisation to
send the equipment under warranty. Without this prerequisite, the manufacturer will not be able to process or
honour the warranty.
WARNING
The product must be used for its intended purpose and any other use is considered inappropriate. Packaging
and containers must NOT be disposed of in the environment. Keep products, packaging, containers,
documentation, etc. out of the reach of children. Observe the local, national or European regulations in force.
The information contained in this document may contain errors which will be corrected in subsequent editions.
The manufacturer reserves the right to modify the contents of this document or the product without prior

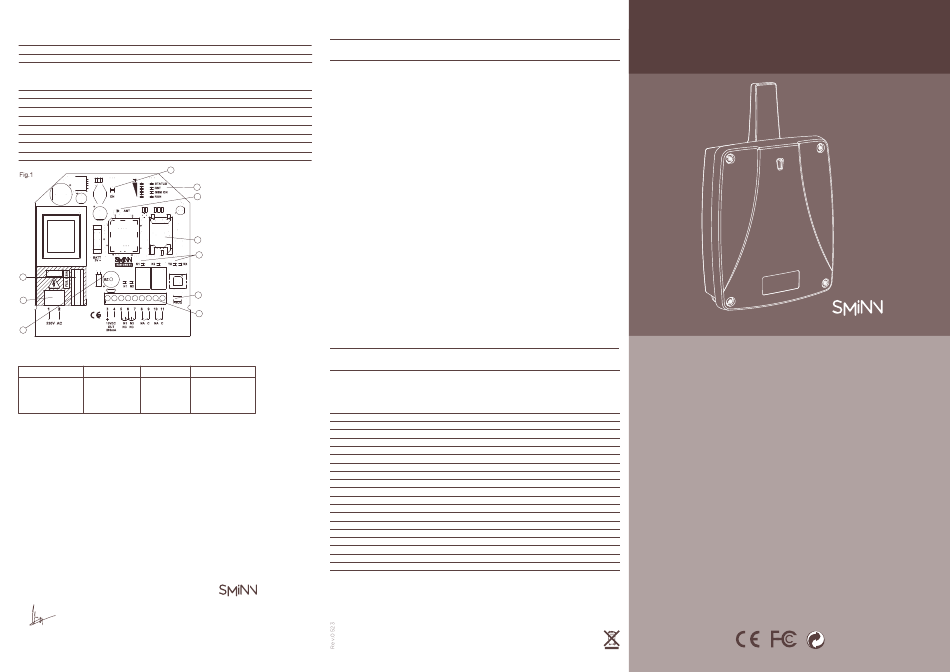

COMPONENTS
notice.
1. Led ON
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
2. Leds RUN / Status / Reset / GSM ON
In accordance with the European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE),
3. Antenna
the presence of the symbol (see symbol at the end of this text) on the product or on the packaging indicates
4. SIM card
that this item must not be disposed of in the unsorted municipal waste stream. It is the responsibility of the user
to dispose of this product by taking it to a designated collection point for the recycling of waste electrical and
5. Relay / TX RX LEDs
5
electronic equipment. Separate collection of this waste helps to optimise the recovery and recycling of any
6. PROG. button
recyclable material and also reduces the impact on health and the environment.
7. Connection strip
For more information about the correct disposal of this product please contact the local authority or the
8. Buzzer
distributor where you purchased this product.
9. 230VAC power supply input
INSTALLATION
10. Fuse protection
The SMINN receiver panel is prepared to be easily fixed to the wall using the plugs and screws supplied.
Before connecting or manipulating the equipment, the power switch or differential must be disconnected. The
installation shall be carried out by specialised and/or suitably instructed personnel, using cable of sufficient
7
section and properly protected, taking into account that the equipment permanently connected to the grid must
have an easily accessible disconnection device (e.g.: a circuit breaker).
Attention shall be paid to the wiring following the indications on the printed circuit board silkscreen.
After programming and checking the equipment, fit the cover onto the front of the enclosure using the screws
supplied.
REINFORCED CONCRETE AND METAL PARTS OR OTHER RECEIVING EQUIPMENT ATTENUATE THE RF
SIGNAL TO A LARGE EXTENT, THEREFORE, INSTALLATION NEAR THESE ELEMENTS SHALL BE AVOIDED AS
FAR AS POSSIBLE.
ERROR CODES
If an error occurs while processing a message, the equipment shall respond with a code from the following table:
CODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
innovative in electronics
Elson Sistemas
T. +34 944 525 120
www. sminn.com
info@sminn.com
Pol. Ind. Torrelarragoiti, P6 · A3
48170 Zamudio - Vizcaya (SPAIN)
MEANING
Device is full
Invalid relay action
Incorrect password
Invalid phone number format
Invalid input mode
Invalid user type
Master user cannot be deleted
User does not exist
Master user cannot be locked
Invalid password format
Master user cannot be replaced
Invalid push-button mode
Phone entered is not the master
Invalid TON
Invalid TOFF
Invalid TRSTR
SMS is missing
User already exists
User does not have the appropriate permissions to perform operation
BOX S GSM B
GSM 2G/3G/4G RECEIVER BOX
INSTRUCTION
MANUAL

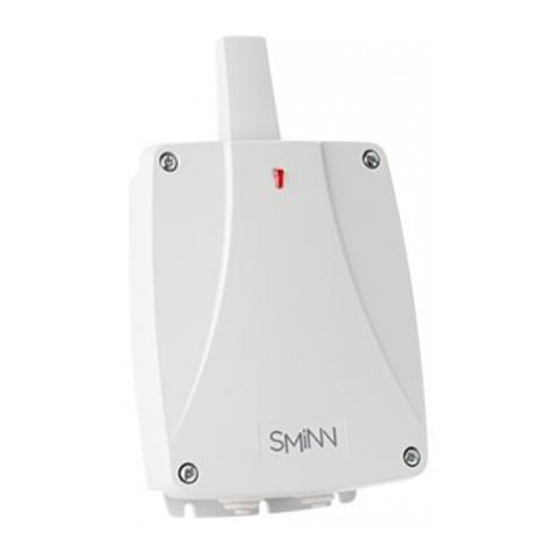

DESCRIPTION
The SMINN GSM B receiver box is developed with state-of-the-
art electronic devices. It incorporates a quad-band receiver with
the capacity to store between 100 and 2000 users.
Its capacity for storage via GSM, USB or using a simple push
button makes it simple and convenient.
They are designed to provide the order of activation /
deactivation of home automation and control equipment in a
simple way such as:
Alarm, security and surveillance systems. Lights, blinds, awnings,
doors and accesses.
The equipment has been built using high quality materials and
components and the latest technology. Equipment that complies
with current standards for use in residential, commercial and
light industrial installations.
