Sminn BOX M GSM B Instruction Manual

TECHNICAL SPECIFICATIONS
BOX M GSM B
Relay 2 1 amp. relays
User memory Depends on the model
GSM Module Quad Band 850/900/1800/1900 Mhz
SMS Text mode
SIM Built in socket
Power 230VAC
Antenna 1/4-1/8 lambda MMCX included
Temperature Range -20ºC / +65ºC
Dimensions 182x145x65 mm
Antenna not included
Ingress Protection Ip54 (IP65 with cable glands
Housing ABS

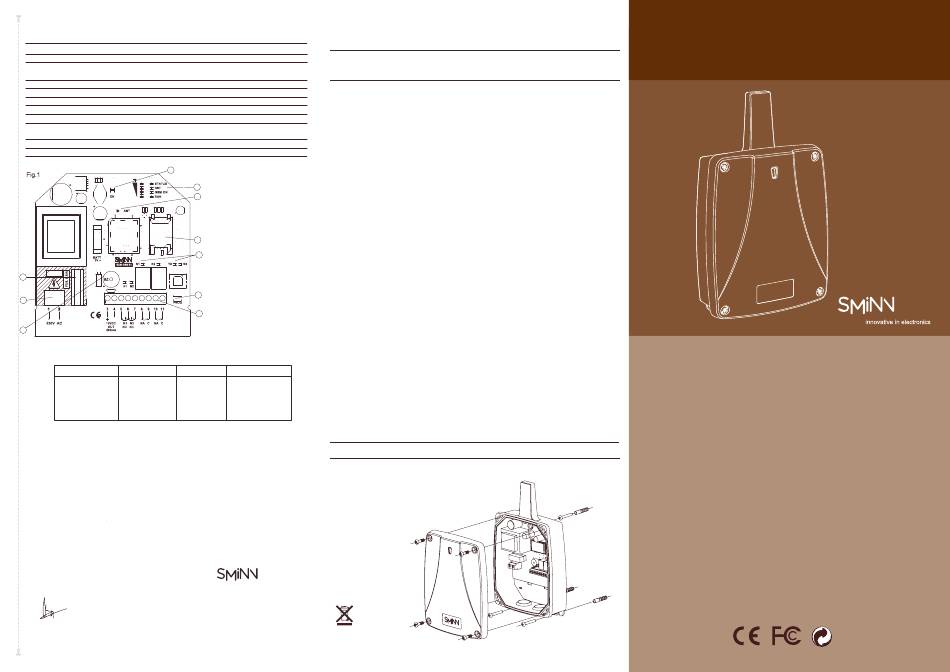

1
2
3
SIM
4
5
10
6
9
7
8
INDICATIONS
The receiver has visual and acoustic signs to indicate its status.
STATUS Led STATUS Led GSM ON
No SIM card ON OFF
No MASTER ON ON
PASWORD 0000 Slow blinking ON
Configured OFF ON
CE DECLARATION OF CONFORMITY
The company ELSON SISTEMAS, S. L.
Pol. Torrelarragoiti, P6 - A3 - 1ª
48170 Zamudio - Vizcaya (SPAIN)
Declares:
The product: BOX GSMB Receiver
Manufactured by ELSON ELECTRÓNICA, S.A.
SMINN
Under the trademark:
For use in: Residential, commercial or light industry
environments.
This device meets the provisions contained in the article 3 of the R&TTE 1999/05/CE
Regulation, as long as its usage is compliant to what was envisaged, having applied the
following regulations:
Telecomunications: R&TTE, CE, FCC
Electromagnetic
EN 301489-1 v1.3.1 (2001-09)
compatibility: EN 301489-3 v1.3.1 (2001-11)
Low tension: N 60730-1:2000
Zamudio, 2012.11.20
José Miguel Blanco Pérez
Chief Technical Officer
USAGE RESTRICTIONS
Operation is not guaranteed when installed in different equipment than the specified
one.
THE USAGE INSTRUCTIONS OF THIS DEVICE SHALL BE HANDED TO THE USER, WHO
WILL HAVE THEM IN THEIR POSSESSION. IF THEY ARE MISLAID, THE USER CAN ASK
FOR A COPY OR DOWNLOAD IT DIRECTLY FROM WWW.SMINN.COM
The manufacturer reserves the right to change the specifications of these systems as
well as this manual without prior warning. The equipment must be manipulated only by
specialized and/or skilled personnel.
WARRANTY
This product has undergone a complete TEST during its manufacturing process that
guarantees its reliability and proper operation. The manufacturer provides 24 months of
warranty to the product from the date printed in the product and against any anomaly
that it may present in its appearance or operation.
Any damage caused by third parties, natural causes (flooding, fire, lightning, etc), arising
from improper handling or installation, vandalism or any other cause non attributable to
the manufacturer will void the warranty. The warranty only covers repairs or
replacement of the damaged device.
Any expenses derived from assembling, travelling, transport, natural wear of parts, etc.,
and, in general, any expenses that are not part of the repairs or replacement of the
damaged element of the system are excluded.
The installer/provider will ask the manufacturer for a RMA number or authorization for
COMPONENTS
transport of the system in warranty. Without this previous requisite, the manufacturer
1. ON Led
will not be able neither to process nor provide warranty service.
2. Status/Reset/GSM ON
WARNING
and RUN Leds
3. Antenna
This product must be used in installations which has been conceived for, considering any other
4. SIM Card slot
as improper use. The packaging must not be dumped in the environment. Keep products,
5. Relays / TX RX Leds
packaging, wrapping, documentation, etc., out of the reach of children. Follow the current
6. PROG. button
local, national or European regulations. The information contained in this document may have
7. Terminal strip
some mistakes that will be corrected in future editions. The manufacturer reserves the right to
8. Buzzer
modify the contents of this document or the product without any prior warning.
9. 230VAC in power supply
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
10. Protection Fuse
In accordance with the European Directive 2002/96/EC about waste electrical and
electronic equipment (WEEE), the presence of this symbol (see symbol at the bottom of
this text) in the product or in the packaging, means that this article shall not be disposed
in local non-classified waste streams. It is the user's responsibility to dispose this product
taking it to a collection point designed for waste recycling of electrical and electronic
devices. The separate collection of this product helps optimize the waste sorting and
recycling of any recyclable material and also decreases the impact on health and the
environment. For more information about the correct wasting of this product, please
contact the local authority or the distributor where you acquired this product.
INSTALLATION AND WIRING
BUZZ
This SMINN device is designed to be easily fixed on a wall using the provided screws and
wall plugs.
OFF
Before connecting the device to a power supply make sure the power supply is powered
Beep booting
off. Installation shall be done by specialized personnel using adequate wiring taking into
Beep booting
consideration that devices that are always powered on must have a power off override
Beep booting
near them (like a Miniature Circuit Breaker).
Internal connections shall be done following the indications depicted in the silk screen
printing of the board.Once the device is programmed and verified, close it using the
supplied lid and screws.
SMINN RECEIVERS HAVE AN EXTERNAL LIGHT TO INDICATE WHETHER THE DEVICE
IS POWERED ON OR OFF
Note: Reinforced concrete, metallic
componentes and/or any other receiving
device reduce dramatically the radiofrequency
signal, so installation close to these elements
should be avoided.
innovative in electronics
T. +34 944 525 120
www. sminn.com
info@sminn.com
Pol. Torrelarragoiti, P6 A3 - 1ª
48170 Zamudio Bizkaia
SPAIN
REV.0413

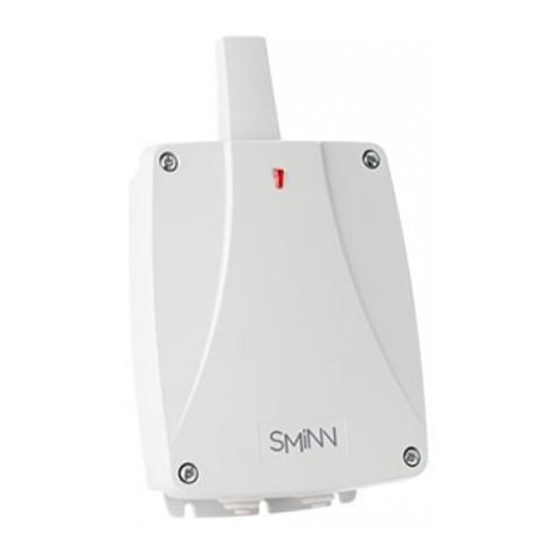

BOX M GSM B
GSM RECEIVER
INSTRUCTION
MANUAL
DESCRIPTION
SMINN´s GSMB receiver is developed with state of the
art electronics. It includes a quad-band receiver with
capacity to store between 100 and 2000 users.
Being able to register users via GSM, USB or
programming switch makes it simple to use and
comfortable.
They are designed to send the activation/desactivation
order in home automation equipments and control easily:
Alarm, security and surveillance systems.
Lights, rolling shutters, awnings, doors, accesses...
Each device is buitl with high quality components and
material and the latest technology, complying with current
regulations for use in residential, commercial and light
industry installations.
