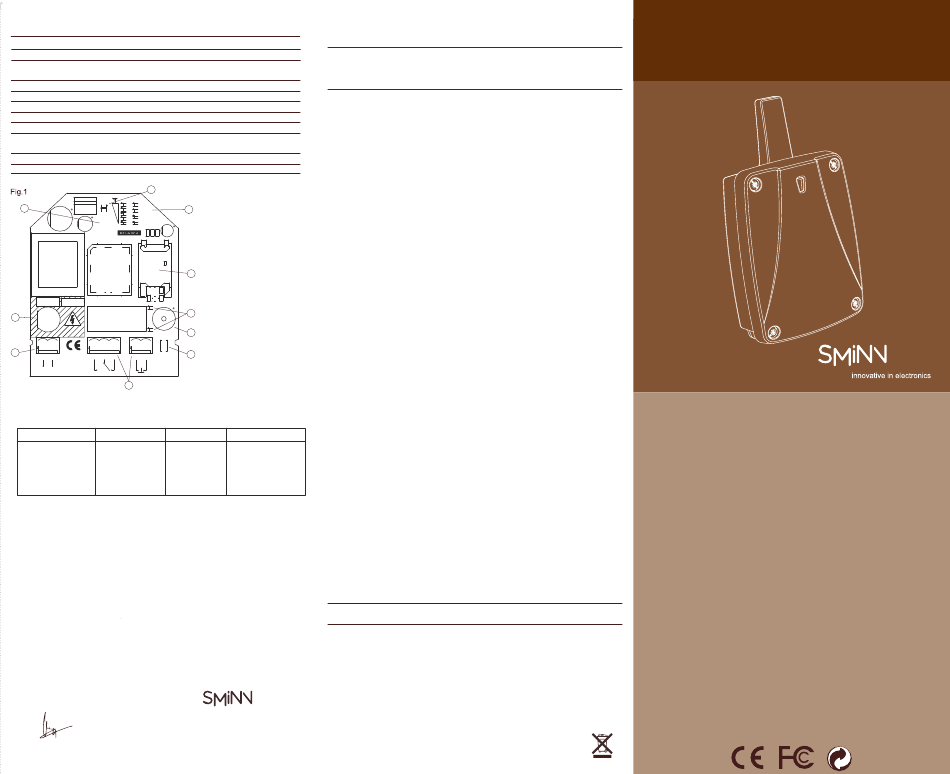

Sminn BOX S GSM A Instruction Manual

TECHNICAL SPECIFICATIONS
BOX S GSM A
Relay 1x 16 amp. relay
User memory Depends on the model
Quad Band 850/900/1800/1900 Mhz
GSM Module
SMS Text mode
SIM Built in socket
Power 230VAC
Antenna 1/4-1/8 lambda MMCX included
-20ºC / +65ºC
Temperature Range
Dimensions 100x132x53 mm
Antenna not included
Ingress Protection IP54 (IP65 with cable glands)
Housing ABS
1
STS
3
2
RST
GSM ON
ON
RUN
ANT.
SIM
40 32
1 31
4
11
21
20
12
FUS. 0.2A
K1 5
10
IN1
6
9
7
1 2 3 4 5 6 7 PROG.
IN / NC
230V AC NA C NC
8
INDICATIONS
The receiver has visual and acoustic signs to indicate its status.
STATUS STS Led GSM ON Led
No SIM card ON OFF
No MASTER ON ON
PASWORD 0000 Slow blinking ON
Configured OFF ON
CE DECLARATION OF CONFORMITY
The company ELSON ELECTRONICA, S.A.
Pol. Torrelarragoiti, P6 - A3
48170 Zamudio - Vizcaya (SPAIN)
Declares:
The product: BXS GSMA Receiver
Manufactured by ELSON ELECTRÓNICA, S.A.
Under the trademark: SMINN
For use in: Residential, commercial or light industry
environments.
This device meets the provisions contained in the article 3 of the
R&TTE 1999/05/CE Regulation, as long as its usage is compliant to what was
envisaged, having applied the following regulations:
Telecomunications:
R&TTE, CE, FCC
Electromagnetic
EN 301489-1 v1.3.1 (2001-09)
compatibility: EN 301489-3 v1.3.1 (2001-11)
Low tension: N 60730-1:2000
Zamudio, 2016.04.28
José Miguel Blanco Pérez
Chief Technical Officer
USAGE RESTRICTIONS
Operation is not guaranteed when installed in different equipment than the
specified one.
THE USAGE INSTRUCTIONS OF THIS DEVICE SHALL BE HANDED TO THE
USER, WHO WILL HAVE THEM IN THEIR POSSESSION. IF THEY ARE
MISLAID, THE USER CAN ASK FOR A COPY OR DOWNLOAD IT DIRECTLY
FROM WWW.SMINN.COM
The manufacturer reserves the right to change the specifications of these
systems as well as this manual without prior warning. The equipment must
be manipulated only by specialized and/or skilled personnel.
WARRANTY
This product has undergone a complete TEST during its manufacturing
process that guarantees its reliability and proper operation. The
manufacturer provides 24 months of warranty to the product from the date
printed in the product and against any anomaly that it may present in its
appearance or operation.
Any damage caused by third parties, natural causes (flooding, fire, lightning,
etc), arising from improper handling or installation, vandalism or any other
cause non attributable to the manufacturer will void the warranty. The
warranty only covers repairs or replacement of the damaged device.
Any expenses derived from assembling, travelling, transport, natural wear

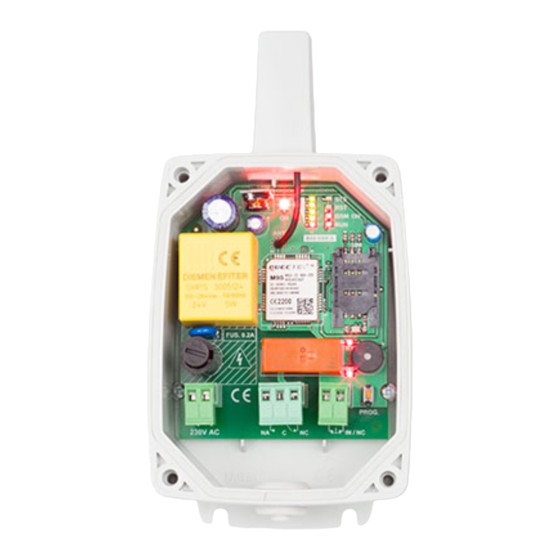

COMPONENTS
of parts, etc., and, in general, any expenses that are not part of the repairs
or replacement of the damaged element of the system are excluded.
1. ON Led
The installer/provider will ask the manufacturer for a RMA number or
2. RUN/Status
authorization for transport of the system in warranty. Without this previous
Reset/GSM ON Leds
requisite, the manufacturer will not be able neither to process nor provide
3. Antenna
warranty service.
4. SIM card slot
5. Relay / IN1 leds
WARNING
6. Buzzer
7. PROG. button This product must be used in installations which has been conceived for,
8. Terminal strips
considering any other as improper use. The packaging must not be dumped in
9. 230VAC in power
the environment. Keep products, packaging, wrapping, documentation, etc., out
supply
of the reach of children. Follow the current local, national or European
10. Protection fuse
regulations. The information contained in this document may have some
mistakes that will be corrected in future editions. The manufacturer reserves the
right to modify the contents of this document or the product without any prior
warning.
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
In accordance with the European Directive 2002/96/EC about waste
electrical and electronic equipment (WEEE), the presence of this symbol
(see symbol at the bottom of this text) in the product or in the packaging,
means that this article shall not be disposed in local non-classified waste
streams. It is the user's responsibility to dispose this product taking it to a
BUZZ
collection point designed for waste recycling of electrical and electronic
devices. The separate collection of this product helps optimize the waste
OFF sorting and recycling of any recyclable material and also decreases the
impact on health and the environment. For more information about the
Beep booting
correct wasting of this product, please contact the local authority or the
Beep booting
distributor where you acquired this product.
Beep booting
INSTALLATION AND WIRING
This SMINN device is designed to be easily fixed on a wall using the
provided screws and wall plugs.
Before connecting the device to a power supply make sure the power
supply is powered off. Installation shall be done by specialized personnel
using adequate wiring taking into consideration that devices that are
always powered on must have a power off override near them (like a
Miniature Circuit Breaker).
Internal connections shall be done following the indications depicted in the
silk screen printing of the board.Once the device is programmed and
verified, close it using the supplied lid and screws.
SMINN RECEIVERS HAVE AN EXTERNAL LIGHT TO INDICATE WHETHER
THE DEVICE IS POWERED ON OR OFF
Note: Reinforced concrete, metallic
innovative in electronics
componentes and/or any other
receiving device reduce dramatically
T. +34 944 525 120
the radiofrequency signal, so
www. sminn.com
installation close to these elements
info@sminn.com
Pol. Torrelarragoiti, P6 A3 should be avoided.
48170 Zamudio Bizkaia
SPAIN
BOX S GSM A
GSM RECEIVER
INSTRUCTION
MANUAL
DESCRIPTION
SMINN´s GSMA receiver is developed with state of
the art electronics. It includes a quad-band receiver
with capacity to store between 35 and 100 users.
Being able to register users via GSM or
programming switch makes it simple to use and
comfortable.
They are designed to send the activation or
deactivation order in home automation equipments
and control easily:
Alarm, security and surveillance systems.
Lights, rolling shutters, awnings, doors,
accesses...
Each device is buitl with high quality components
and material and the latest technology, complying
with current regulations for use in residential,
commercial and light industry installations.
REV.1716
