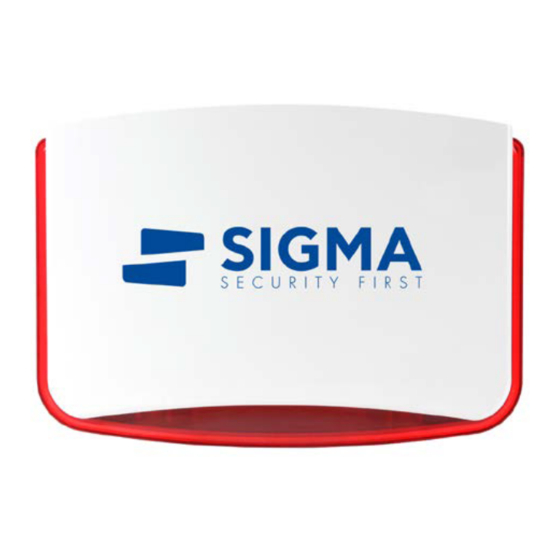

IRIS & IRIS FSD
OUTDOOR SELF POWERED
SIRENS
General characteristics
Τhe installation of the siren can be completed without applying power from the control
panel and remain so for a long time. It is activated by applying the supply voltage powered
from the control panel. This is particularly useful in cases of a building, which the siren is
placed first and the panel is powered after a long time.
• Five different alarm sounds (selectable) and different sound for fire alarm.
• Seven different operating modes of the five LEDs in standby mode of siren (selectable).
• Different activating inputs for alarm and for fire alarm.
• Activation of the siren can be made with the following triggering methods:
- by interrupting positive voltage (SSP)
- by interrupting negative voltage
– by applying positive voltage
– by applying negative voltage
IRIS / IRIS FSD - 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sigma IRIS
Summary of Contents for Sigma IRIS
- Page 1 • Activation of the siren can be made with the following triggering methods: - by interrupting positive voltage (SSP) – by applying positive voltage - by interrupting negative voltage – by applying negative voltage IRIS / IRIS FSD - 1...
- Page 2 45 ° in any direction (Only in IRIS PLUS FSD). • Built in TAMRER switch to protect the siren from the opening the outer casing and the detachment from the wall.
- Page 3 (it is 0 on stand by and turns to O.C. - Open Collector) ALARM VERIFICATION OUTPUT ALARM VER (it is 0 on stand by and turns to O.C. - Open Collector) SPEAKER SPEAKER CONNECTION INPUT IRIS / IRIS FSD - 3...
- Page 4 Interrupt positive voltage: Connect “ ΙΝ” terminal of the siren to a PGM output of the control panel. This PGM output must have 12 V at stand by and turn to 0V in case of alarm (connect “SSP”, in Sigma alarm control panels).
- Page 5 (the duration of each alarm should be longer than 20 seconds). Each time you press “SELECT” button, you will hear the sound of the siren and will turn on or turn IRIS / IRIS FSD - 5...
- Page 6 Press “MENU” to save settings and navigate to next menu. The LEDs “FLASH” & “Hi-Lo” will light simultaneously. Sensitivity adjustment of the siren’s shock sensor (Only in IRIS FSD) As soon the LEDs “FLASH” & “Hi-Lo” lights, press “SELECT” button to adjust the sensitivity of siren to blows, which are detected by the 3-Axis accelerometer.
- Page 7 IN” and “+/- IN” (see page 4). If you do not cut any of the links “MODE IN” and “+/- IN”, the input must be at + 12V to standby mode and becomes 0 in alarm (in Sigma’s alarm control panels, the “IN”...
- Page 8 To open the cover of the siren, follow the procedures below: Disarm the panel (in the case of Sigma alarm control panels) or send a 12V to the TC input. You have ten minutes to open the cover without activating the siren, because these time the Tamper of the siren is inactive.
