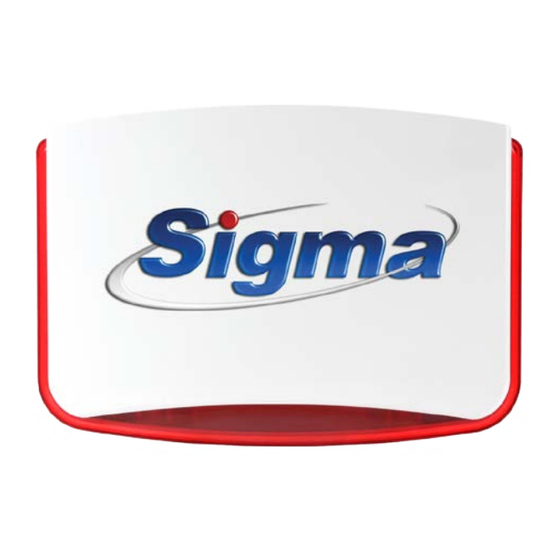

- Page 1 INSTALLATION MANUAL IRIS PLUS Outdoor self powered siren...
-
Page 2: General Characteristics
In addition, in the IRIS PLUS / FSD version, there is a vibration detector to protect the siren from knocks and a dual infrared foam detection sensor for protection against sabotage through foaming. - Page 3 foam fire extinguishers, polyurethane etc., triggers an alarm to the siren and at the same time also activates the ALARM output “ALR OUT”. • When the siren’s supply voltage from the panel drops below 5.0 V, the “ALR OUT” output (ALARM OUT) is activated, which can be connected to a zone of the panel, so the Control panel is also triggered in case of alarm.
-
Page 4: Technical Specifications
Technical Specifications IRIS PLUS IRIS PLUS FSD Power Supply 13.2-14.5 V DC Operational Voltage 13.8 V DC 8mA (when initially is powered by the battery Consumption (Standby) and not by the control panel) Consumption (Standby) 13.0mA when the LEDs turn on at standby Consumption (Standby) 9.5mA when the LEDs turn on at standby... -
Page 5: Terminals Description
Terminals Description TAMPER FREE CONTACT FOR TAMPER COM | ZONE REM/BUS REMOTE BATTERY CONTROL INPUT POWER SUPPLY INPUT (12V) OF THE SIREN. IS ALSO USED FOR CHARGING THE SIREN’S BATTERY TRIGGER NEGATIVE OR POSITIVE ALARM ACTIVATION INPUT (PANEL CONTROLABLE) FIRE ACTIVATION INPUT +12V FOR FIRE ALARM INPUT +12V FOR AUDIBLE AND VISUAL VERIFICATION OF THE CONTROL SIGN... -
Page 6: Installation
Installation To install the siren, please follow the steps, as described below: Select where you place the siren, this should be as high as possible, that the siren can be easily viewed and secure. 2. Align the siren stand against the wall with the built-in spirit level, mark the fixing holes and open them with an electric drill. - Page 7 Selecting the Siren’s Operation Mode The siren’s operation mode, in addition to the settings you should do, as described in the following sections, has to do with the options of the wiring to the control panel, as detailed below. 1. Selecting the way in which the TAMPER of the siren will trigger alarm The siren’s tamper activates the siren and the “TAMPER”...
- Page 8 The presence of 12V on this input disables the Tamper of the siren for 10 minutes. In the Sigma Alarm panels, connect the siren’s TC input to a PGM, which must be programmed as type 27. 7. Visual or audible indication input The “SIGN”...
-
Page 9: Enter Setup
Programming The programming of siren functions is done via the “MENU” and “SELECT” buttons, which are placed on the siren board. • Use the “MENU” button, to select the programming step you need. Each time you press “MENU” button, you select different programming mode and this is indicated by lighting the relative LED. - Page 10 ενδείξεις “FLASH” & “Hi-Lo”. Adjusting siren sensitivity to blows (Only in IRIS PLUS FSD) When the LEDs with the indication “FLASH” & “Hi-Lo” will turn on, use the button SELECT to adjust the siren’s sensitivity to blows which are detected by the 3-Axis accelerometer . Each time you press “SELECT”...
-
Page 11: Exit Setup
As soon as you have connected the siren’s TC to the corresponding output of the panel, activate the corresponding PGM of the panel or, in the case of a Sigma panel, arm and immediately disarm the panel to apply + 12V to the TC input. When you do the above, you have ten minutes to open the siren lid without activating an alarm, because Tamper is inactive for that period. -
Page 12: Warranty
Commissioning You must regularly test the siren operation. Thus, you will make sure that the siren is functioning properly and will sound in case of alarm. 1. Check the proper operation of the siren’s speaker as well as the LED Flash by simulating an alarm from the Control Panel.
