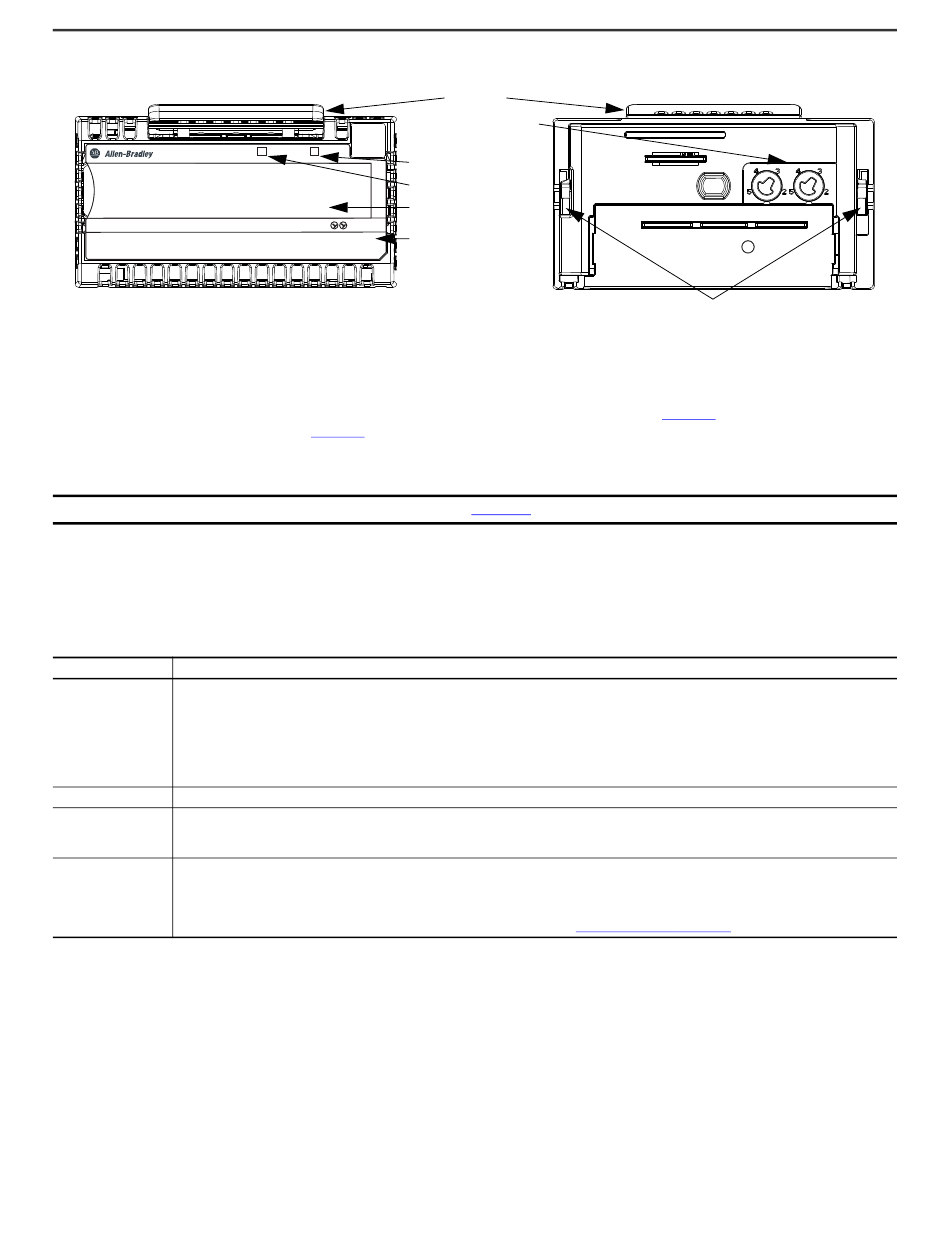

About the Module

FRONT VIEW
FLEX 5000 I/O
TM
0 1 2 3

Before You Begin

Before you install the module, you must install a FLEX 5000 I/O system. At minimum, the system must include a FLEX 5000 EtherNet/IP™ adapter and backplane end cap. For more
information on how to install a FLEX 5000 I/O system, see the FLEX 5000 EtherNet/IP Adapter Installation Instructions, publication 5094-IN001, and the FLEX 5000 Terminal Base
Assembly Modules Installation Instructions, publication 5094-IN010.
You can install the module next to any FLEX 5000 I/O module.
IMPORTANT
See the FLEX 5000 Analog I/O Modules User Manual, publication 5094-UM002, for FW/SW requirements.

Required Components

To install the module, you need the physical components that are listed in the following table.
Components Needed for FLEX 5000 I/O Module Installation
Component Description
5094-TB3T (consists of a 5094-MB and 5094-RTB3T) or
5094-TB3TS (consists of a 5094-MB and 5094-RTB3TS) or
5094-TB3TXT (consists of a 5094-MBXT and 5094-RTB3TXT) or
Terminal base (TB)
5094-TB3TSXT (consists of a 5094-MBXT and 5094-RTB3TSXT)
assembly
IMPORTANT: You must order mounting bases (MBs) and removable terminal bases (RTBs) separately. MBs and RTBs do not ship with FLEX 5000 I/O
modules.
We recommend that you order only the MB and RTB type that your system requires.
Shield bar The shield bar accessory is available separately.
A backplane end cap ships with a FLEX 5000 EtherNet/IP adapter.
Backplane end cap You can order backplane end caps separately:
5094-ECR-QTY5 – Backplane end cap, Pack of 5
The following tools are needed:
• Screwdriver
Tools • Wire stripper
• Wires
For more information on available wire sizes and wire insulation stripping length, see
FLEX 5000 Analog 8-channel Current/Voltage/RTD/Thermocouple Input Modules Installation Instructions
Module status indicator
Module power
Slide-in writable label
I/O status indicators
4 5 6 7
Rockwell Automation Publication 5094-IN008D-EN-P - August 2022
Release lever
Keyswitch ports
Module Specifications on page
BACK VIEW
Latching hooks
13.
