Roland groovekeyboard EG-101 Service Notes
Hide thumbs Also See for groovekeyboard EG-101:

Advertisement

Quick Links

Dec, 1998
eG-101

TABLE OF CONTENTS

EXPLODED VIEW (TOP)
KEYBOARD PARTS LIST
SN00026
K6018343
EG-101
SERVICE NOTES
First Edition
Issued by RES
Page
1
2
3
4
4
5/6
7
8
9
10
11
12
12
13
14
15
15
16/20
Printed in Italy (AC00) (AD)
1

Specifications

GENERAL
49 Keys - Velocity-sensitive keyboard
3 x Seven-segment display
Separate Sampler Volume control
Two-way Bass Reflex System
Operating system in Flash ROM
TONE GENERATION & SOUNDS
24-voice Polyphony
11 multitimbral Parts
448 Tones and 12 Drum Kits
CONTROLLERS
D-Beam™
Pitch Bender/Modulation Lever
7 Knobs
TAP Tempo
D-BEAM Quick Parameters
Tempo Down
AD LIB
(36 possibilities)
STYLES
64 Styles on ROM
Divisions: Intro - Original - Fill - Variation - Ending-Basic/Advanced.
64 User memories
Effects assignable to Parts
Realtime mute of Parts and Drum instruments
Drum track substitution with sampled phrase
Drum instrument substitution with sample
RPS
64 RPS Sets of 12 Phrases each
64 User RPS Memories
Auto-Sync with sampled Loops
Effects assignable to last selected Phrase
Realtime Mute of drum instruments
Quick RPS Transpose
HOLD Control
ARPEGGIO
Range (Octave)
Grid (Quantize)
Type (Up - Down - Up/Down - Random)
Realtime Control of Decay
Always synchronized to general tempo
PORTAMENTO
Monophonic with Rate Control
RECORDER
REALTIME TONE/TRACK/EFFECT EDIT FUNCTIONS
Cut-Off, Resonance, Pan Pot, Part Volume, Reverb Time, Reverb Level
CONNECTIONS
Output (L - R): RCA x2
Input (L - R): RCA x2
Foot Switch
Headphones
MIDI IN-OUT
DC IN (12 V - 2 A)

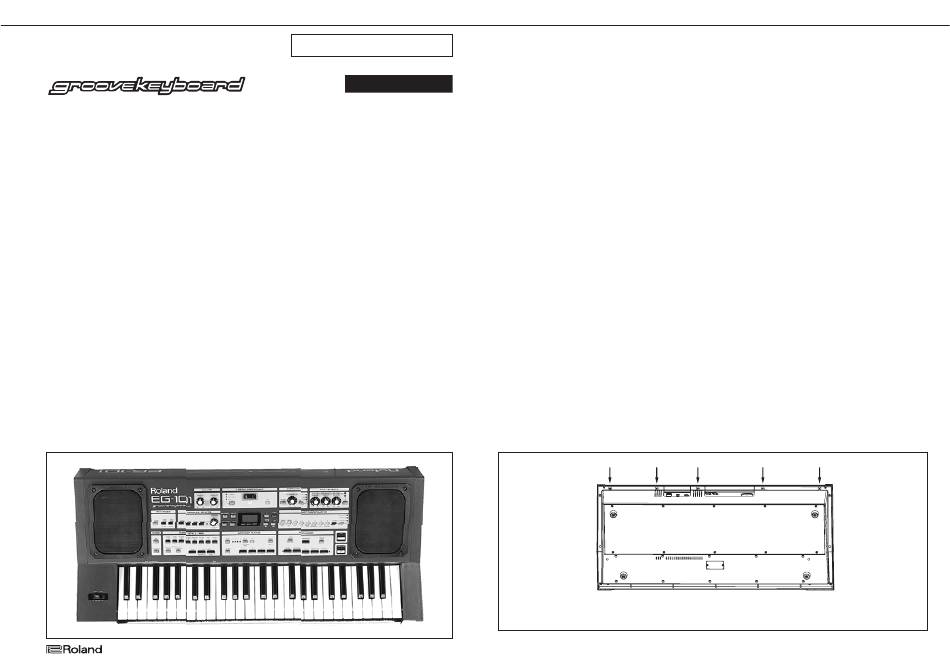

DISASSEMBLY
SELF LOCK.SCREW M4x14 TCTC H.9,5 cod. J2289109
Copyright © 1998 by ROLAND CORPORATION
All rights reserved. No parts of this publication may be reproduced in any form whithout the written permission of ROLAND CORPORATION.
Stereo output level
Output line:
- 13 dBm
Master Vol.
:Max
Tone
:Sine bass (A224)
Reverb
:Off
Play
:C4 key
Stereo output impedance
Output line:
1,6 K ohms
Amplifier
2 x 15 W musical output power
Speakers
Two-way Bass Reflex System
2 Woofer (diameter: 90 mm)
2 Tweeter
Power supply
12V, 2A (ACJ AC/DC Adapter)
SAMPLER SECTION
R-DAC Sampling Technology (Roland Digital Audio Coding)
4 Pads X 4 Banks (16 locations), direct triggering via Keyboard or pads.
4 Mbit Flash ROM
Up to 32 sec. in HI-FI grade (128 sec. in LO-FI grade)
Auto Sync with Styles and RPS
Sampler effects: Pitch Shift, Time Stretch, Ring Mod *, Filter *
(* Effects also available on Line-IN or Mic-IN)
HOLD Control
MIC-IN + Effects
Sampling Frequency:
HI-FI :
31.25Khz
LO-FI:
7.81Khz
Data format
EG-101 Original Format
Signal processing
AD conversion:
16 bit
DA conversion:
16 bit
Nominal Input level
Input (mic):
-54 to -25 dBm
Input (line):
-20 to +8 dBm
Input impedance
50 K ohms (line)
4.5 K ohms (mic)
*0 dBm = 0775 Vrms
WEIGHT AND DIMENSIONS
Weight:
11,100 Kg
Dimensions:
835 x 377 x 192 mm
ACCESSORY
See page 6
OPTIONS
RH-20/80/120 Headphones; DP2 Sustain Pedal; BOSS FV-300L Volume Pedal;
KC-100/300/500 Keyboard Amplifiers
*In the interest of product improvement, the specifications and/or appearance of this
unit are subject to change whitout prior notice.

Advertisement

Table of Contents
loading

Summary of Contents for Roland groovekeyboard EG-101

  • Page 1: Table Of Contents

    SELF LOCK.SCREW M4x14 TCTC H.9,5 cod. J2289109 Copyright © 1998 by ROLAND CORPORATION SN00026 K6018343 Printed in Italy (AC00) (AD) All rights reserved. No parts of this publication may be reproduced in any form whithout the written permission of ROLAND CORPORATION.
  • Page 2: Location Of Controls

    ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION N225 The D Beam has been licensed by Interactive Light, Inc REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA" DC IN 12V 2A USE ROLAND ACJ ADAPTOR ONLY SUSTAIN POWER PHONES...
  • Page 3: Exploded View (Bottom)

    EG-101 Dec, 1998 EXPLODED VIEW (BOTTOM) PART NAMES PART NUMBERS VARNISHED BOTTOM 7700505000 TWEETER SUPPORT K1188130 TWEETER SPEAKER W / CABLES K2418118 WOOFER SPEAKER D.90 mm K2418117 MAIN BOARD PCB ASSY 7700501000 Note: includes CPU MODULE ASSY 7700512000 AMPLIFIER ASSY SOUND-PROOF.
  • Page 4 EG-101 Dec, 1998...
  • Page 5: Parts List

    Dec, 1998 EG-101 PARTS LIST EG-101 (117V/230V/230VE/240VA) SAFETY PRECAUTIONS : CONSIDERATION ON PARTS ORDERING When ordering any parts listed in the parts list,please specify the following items in the order sheet. The parts marked ! have PART NUMBER DESCRIPTION MODEL NUMBER PCB ASSY safety-related characteristics.
  • Page 6 EG-101 Dec, 1998 POTENTIOMETER J2289113 3MA H.3 J2139101 FLAT WASHER I/D 4 01013545 POTENT. (ROTARY) RK09L12D0 10KBX2 VR1, 2, 3, 4, 5 on CB J2139102 TOOTHED WASHER I/D 3 01013556 POTENT. (ROTARY) RK09L1140 10KB VR6, 7, on CB 13299206 TRIMMER POTENT. EVND8AA03B24 VR1 on MB PACKING...
  • Page 7: Block Diagram

    EG-101 Dec, 1998 BLOCK DIAGRAM P O WE R A M P B E N D E R A S S Y 7 7 0 0 5 1 2 0 0 0 & M O D U L A T I O N + 9 V A V P W ASSY 7700510000...
  • Page 8: Main Pcb Assy

    EG-101 Dec, 1998 MAIN PCB ASSY ASSY 7700501000 ( NOTE : The MAIN BOARD PCB ASSY includes CPU MODULE PCB ASSY For Nordic Countries Apparatus containing Lithium batteries ADVARSEL! ADVARSEL! VARNING! VAROITUS! Lithiumbatteri - Eksplosionsfare ved Lithiumbatteri - Eksplosjonsfare. Eksplosionsfara vid felaktigt batteribyte. Paristo voi räjähtää, jos se on virheellisesti fejlagtig håndtering.
  • Page 9: Circuit Diagram 1/3 (Main Pcb Assy)

    EG-101 Dec, 1998 CIRCUIT DIAGRAM 1/2 (MAIN PCB ASSY) B A C K U P 5 V D C 1 0 8 6 N 1 3 7 1 0 0 / 1 6 I C 2 R 1 0 MAIN SECTION 5 V D V C C 2 2 0...
  • Page 10: Circuit Diagram 2/3 (Main Pcb Assy)

    EG-101 Dec, 1998 CIRCUIT DIAGRAM 2/2 (MAIN PCB ASSY) 4 V A C 1 0 5 C 9 0 . 1 C L I N E I N P U T R 9 3 10uF16BP 1 0 0 K J K 6 I C 1 6 F L 9 C 7 5...
  • Page 11: Circuit Diagram 3/3 (Main Pcb Assy; Cpu Module Section)

    EG-101 Dec, 1998 CIRCUIT DIAGRAM 3/3 ( CPU MODULE PCB ASSY NOTE: To supply with MAIN PCB ASSY 7700501000 View from component side View from solder side 0.1s 0.1s 0.1s PORT BUS & CONTROL BUS IC14 HD643042VF-100B BACKUP ADDRESS BUS IC12 5VREF LH28F400SUT-NC60...
  • Page 12: Control Pcb Assy

    EG-101 Dec, 1998 CONTROL PCB ASSY ASSY 7700503000 View from component side CIRCUIT DIAGRAM 1/2(CONTROL PCB ASSY)
  • Page 13: Circuit Diagram 2/2 (Control Pcb Assy)

    EG-101 Dec, 1998 CIRCUIT DIAGRAM 2/2 (CONTROL PCB ASSY)
  • Page 14: Contact Pcb Assy W/Rubber Contact & Circuit Diagram

    EG-101 Dec, 1998 CONTACT PCB ASSY & CIRCUIT DIAGRAM ASSY 7700510000 DIODE RES CODE RJA CODE MODEL 590.09.0091 7695402000 PC SERIES 590.09.0180 7700510000 EG SERIES View from component side...
  • Page 15: Power & Amp. Pcb Assy

    EG-101 Dec, 1998 POWER AMP PCB ASSY & CIRCUIT DIAGRAM ASSY 7700512000 View from component side...
  • Page 16: Test Mode

    EG-101 Dec, 1998 HOW TO SAVE /HOW TO VERSION UP TONE / STYLE / RPS HOUSE DANC E T EC HNO BIGBEAT DRUM’N’ BASS HIP HOP WORLD As EG-101 has a Flash memory to record the Main Program, some of styles and samples, each section can be saved and/or updated.
  • Page 17 EG-101 Dec, 1998 SAMPLE FLASH UPDATE USING A SOUND BRUSH Connect the MIDI OUT of a Sound Brush to the MIDI IN of EG-101. This procedure concerns only the Dump operation of the Samples. Set your Sound Brush into the "Auto Play = off" as well as into the "Single Mode" modes Copy the Program MidiFile "prg_xxx.mid"...
  • Page 18 EG-101 Dec, 1998 EMERGENCY UPDATE of the PROGRAM FLASH Program Dump While dumping the Program the display shows a number increasing from 1 to 6 followed Possible voltage drops and/or possible errors while updating the program are not supposed The 'b' character indicates the boot block data. to cause the complete lost of the program;...
  • Page 19 EG-101 Dec, 1998 ERROR MESSAGGES DURING THE FLASH UPDATE OPERATION FACTORY SETUP EG-101 is provided with a function called Factory Setup, which retrieves all the settings ori- File Not Accepted ginally determined by the factory, namely: STYLE USER PROGRAMS RPS USER PROGRAMS Checksum Error Procedure a) Turn EG-101 off (Power Off)
  • Page 20 EG-101 Dec, 1998 above the D-Beam sensor and check that the display shows a value equal to zero; if this is not the value shown, adjust the VR1 trimmer on the Main Board so that zero appears on the display when your hand is at the afore-mentioned distance from the D-Beam sensor;...
