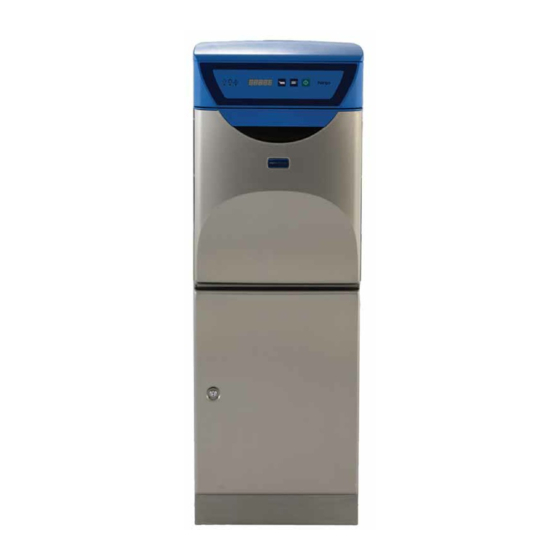

Arjo Ninjo FD1600 Instructions For Use Manual

Hide thumbs Also See for Ninjo FD1600:
Table of Contents

Advertisement

Quick Links

INSTRUCTIONS FOR USE
Ninjo
6001313502_4EN • 02/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ninjo FD1600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arjo Ninjo FD1600

Summary of Contents for Arjo Ninjo FD1600

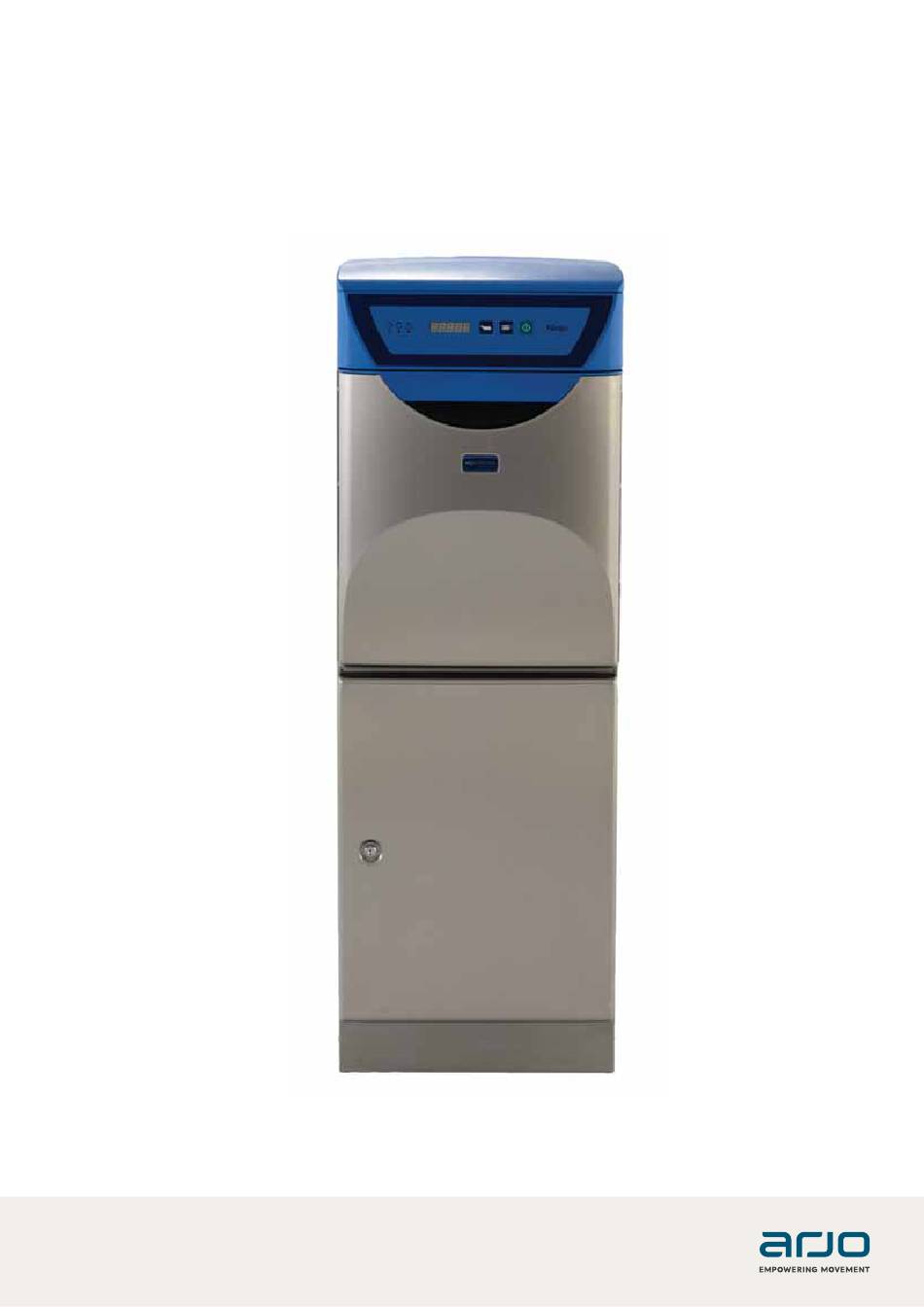

  • Page 1 INSTRUCTIONS FOR USE Ninjo 6001313502_4EN • 02/2023...
  • Page 2 Mandatory to read the Instructions for Use. Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2023. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.

  • Page 3: Table Of Contents

    Contents PREFACE ...........................5 ....................6 ....................7 ......................7 ......................8 ....................8 ......................9 2.1 Area of application ....................9 2.2 Models .........................9 2.3 Control panel .....................10 2.3.1 Components ..................10 2.3.2 Functions ....................10 2.4 Display options ....................11 2.4.1 Displayed while a program is running ..........11 2.4.2 Display after program end ..............11 .................12 3.1 Program overview ....................12 3.2 Run a program ....................13...
  • Page 4 ......................23 8.1 Requirements ....................23 8.2 Main factors .......................23 8.3 Recommendation ....................23 8.4 Local standard ....................23 ..............24 .............25 9.1 Comments ......................25 9.2 Distribution ......................25 ........................25 9.4 Waste disposal ....................26 9.5 Load pallets .......................26 ..................27 ..................28 ...............30...

  • Page 5: Preface

    PREFACE of the machine and the maintenance for which the user is responsible. The Assembly and installation instructions describes the machine's installation. The Technical manual describes necessary information for operators and maintenance personnel. The information in the manual must be complied with to ensure safe and error-free operation.
  • Page 6 Safety warning. Failure to understand and obey this warning may result in injury or machine damage. Hot surface. Risk of injury. Dangerous voltage. Risk of injury. Note means: This is important information for the Note! correct use of this system or device.
  • Page 7 • Leakage in the system, for example a worn door seal, • Spare parts must only be obtained from Arjo's sales companies. • should report the serious incident to the medical device user should also report the serious incident to the Competent...
  • Page 8 1.2 Isolator switch The machine must always be equipped with a separate isolator switch in the feed power supply. The isolator switch must be easily accessible on a wall close to the machine. The external electrical of the switch. 1.3 In an emergency •...

  • Page 9: Area Of Application

    2.1 Area of application Flusher-disinfector for emptying, cleaning and disinfecting, bedpans, urine bottles and other containers for human waste. placed in the proper holder, recommended by Arjo. product is put into use. 2.2 Models Figure 1. Machine models Free-standing model...

  • Page 10: Control Panel

    2.3 Control panel 2.3.1 Components Figure 2. Control panel Yellow: Process Economy program running Normal program Starting a program complete Red: Error indication Display 2.3.2 Functions Function aborted. Yellow indicator light: The machine is running a program. The display shows the current status*, for example the cleaning phase and temperature.

  • Page 11: Display Options

    2.4 Display options A service technician can set the information to be shown in the display. 2.4.1 Displayed while a program is running The display can be set to show one of the following alternatives while a program is running: •...

  • Page 12: Program Overview

    WARNING! To prevent contamination, use personal protective equipment, such as gloves and protective glasses, when handling soiled waste containers and 3.1 Program overview The machine's standard programs are described here. There may be other programs for the program buttons. A service technician can change the button functions.

  • Page 13: Run A Program

    3.2 Run a program 3.2.1 Start a program WARNING! If the machine has not been used for more than 72 hours, it is necessary to run a program with an empty chamber before using the machine to clean goods. Place the goods to be cleaned in the holder. Close the door.

  • Page 14: Cooling

    3.3 Cooling A ventilator starts when the disinfection is complete: • Warm air is sucked out of the chamber. • The items to be washed are cooled using the following method: • 15883. • When the green lamp is lit the cooling/ventilation can be terminated by opening the door.

  • Page 15: Flushing Chamber

    4 MAINTENANCE 4.1 Flushing chamber descaler that is intended for the purpose such as Arjo Clean 4.2 The outside WARNING! Do not wash the machine down with water. The outside of the machine can be cleaned and disinfected with an alcohol-based cleaning agent or medicinal alcohol. The area around the display should be cleaned with an alcohol-based cleaner.

  • Page 16: Service Table

    4.3.2 Service table WARNING! Maintenance may only be performed by authorized service technicians. WARNING! The machine is connected to the electricity supply and some components are live. Note! The service table is only shown for information purposes. The service table below shows recommended maintenance intervals.
  • Page 17 Measure Every Every other Time* year/ 7,500 year/15,000 (minutes) cycles cycles Check the door and door spring. • Process tank Clean as required. • Check and clean the level sensor. • Check that the valves are working and that the •...

  • Page 18: Machines That Are Not In Use

    4.4 Machines that are not in use A machine that is not being used should be drained. Contact a service technician.

  • Page 19: Alarm

    5 ALARM 5.1 Alarm indication WARNING! If the disinfection process is cancelled, the goods are not clean. The goods must be processed again. lights up, the disinfection has been aborted. The display shows an error message, see "Troubleshooting". 5.2 Acknowledgement of error message WARNING! Some error messages need to be acknowledged before the machine can be returned to run mode.

  • Page 20: List Of Codes

    6.1 List of codes The tables below describe the error messages that can be generated as well as possible measures. Code Description Measure Lime descaler low level Top up descaler agent. Process agent low level Top up process agent. Rinse-aid low level Top up rinse-aid Warning of high temperature for Let the goods cool down.

  • Page 21: Flushing Detergent

    WARNING! Follow the instructions for the container for additional instructions on using the detergent. The machine has been proven and tested with Arjo's detergents. We recommend that you use Arjo detergents. • mean that the manufacturer of the machine accepts liability for any impact the agent has on goods to be washed.

  • Page 22: Positioning

    7.3 Positioning The illustration below shows, for example, where to place the detergent for the free-standing model. Figure 6. Example of the placement of detergent 7.4 Switching WARNING! To avoid eye and skin damage, always use protective glasses and gloves. If contact occurs rinse with plenty of water.

  • Page 23: Requirements

    Sanitary chemicals: to, sanitary chemicals may cause corrosion and pitting on stainless steel. 8.3 Recommendation • Arjo recommends that water used in the pre-rinsing, washing accordance with the guidelines. • • Detailed information about acceptable water quality can be 8.4 Local standard Follow local standards if they are stricter than Arjo's recommendations.
  • Page 24 5.5 to 8 Conductivity <30 μs.cm-1 <40 mg/l Maximum hardness <50 mg/l Chlorine <10 mg/l <10 mg/l Phosphates Silicates Endotoxins Total number of <100 per 100 ml micro-organisms...

  • Page 25: Comments

    Plastic Stainless steel FD1600 FD1610 Total weight kg / % 90 / 100 65 / 100 100/ 100 75 / 100 by weight Mechanical parts Stainless steel 41 / 45.5 21 / 32.3 60 / 60 35 / 46.6 Steel 1 / 1.1 1 / 1.5 1 / 1...

  • Page 26: Waste Disposal

    9.4 Waste disposal The machines consist mainly of stainless steel, plastics/rubber/glass and other recyclable metals. When the machine is scrapped the materials should be recycled. Wiring and printed circuit boards contain scrap. Plastics and rubber must be sorted separately. 9.5 Load pallets The pallet that the machine is delivered on is manufactured and packaging is dried and heat-treated, KD 56°C/30 min.
  • Page 27 WARNING! The product may be contaminated and has to be disinfected before recycling. Equipment that has electrical and electronic components should be disassembled and recycled per Waste of Electrical and Electronic regulation. Disinfection liquids – if you have extra liquid, it’s safe to pour it down the drain with running water.
  • Page 28 Symbol Explanation Warning Warning, hot surface Warning, dangerous voltage Wear protective gloves Wear eye protection Name and address of the manufacturer Manufacturing date Catalogue number Serial number Regulation 2017/745 ingress and water ingress WaterMark WMTS104 LicWMK26397 SAI Global LAU-LBP13042...
  • Page 29 Symbol Explanation product compliance to North American safety standards c e r t i f i e d BRL-K14011 Separate electrical and electronic components for recycling in accordance with Arjo medical device labelling.
  • Page 30 Guidance and manufacturer’s declaration – electromagnetic emission Emmision test Compliance Guidance This equipment uses RF energy only for its internal functions. Therefore its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. This equipment is suitable for use in all establishments, including domestic Class A...
  • Page 31 AUSTRALIA FRANCE Arjo Australia Arjo SAS Arjo Polska Sp. z o.o. Building B, Level 3 2 Avenue Alcide de Gasperi 11 Talavera Road CS 70133 Macquarie Park, NSW, 2113, FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Australia Tél: +33 (0) 3 20 28 13 13...
  • Page 32 At Arjo, we believe that empowering movement within healthcare environments is essential to quality care. Our products and solutions are and the prevention of pressure injuries and venous thromboembolism. With over 6500 people worldwide and 65 years caring for patients and healthcare professionals, we are committed to driving healthier outcomes for people facing mobility challenges.

This manual is also suitable for:

Ninjo fd1610Ninjo fd1615
