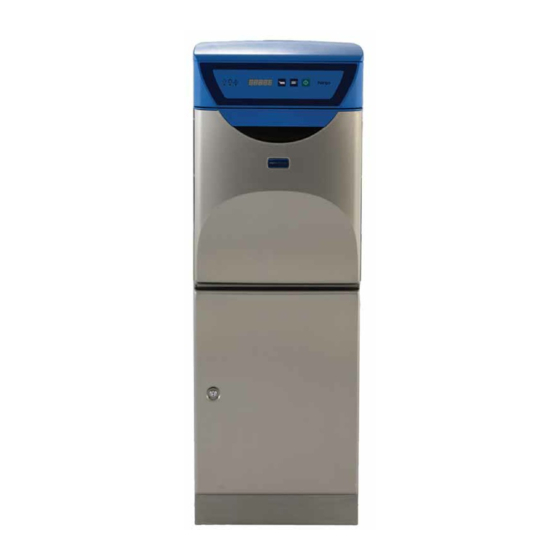

Arjo Ninjo FD1600 Assembly And Installation Instructions Manual
Flusher disinfector
Hide thumbs
Also See for Ninjo FD1600:
- Instructions for use manual (32 pages) ,
- Instructions for use manual (32 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Arjo Ninjo FD1600
Summary of Contents for Arjo Ninjo FD1600
- Page 1 ASSEMBLY AND INSTALLATION INSTRUCTIONS Ninjo 6001313602_2EN • 09/2019...
- Page 2 Machine model: …………………………………………………… Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2019. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the...
-
Page 3: Table Of Contents
Contents PREFACE ..........................5 1 SAFETY PRECAUTIONS ....................6 1.1 General safety regulations ...................7 1.2 Isolator switch ......................8 1.3 In an emergency ....................8 1.4 Product liability .....................8 1.5 Attention symbols ....................8 2 INSTALLATION OF MACHINE ..................9 2.1 General ........................9 2.1.1 Make sure assembly and installation work is carried out ......9 2.1.2 Installation order ...................9 2.1.3 Installation alternatives .................9 2.2 Unpacking ......................10... - Page 4 4.7 Sound level ......................24 4.7.1 Estimated sound level .................24 4.7.2 Example ....................25 5 WATER QUALITY ......................26 5.1 Requirements ....................26 5.2 Main factors .......................26 5.3 Recommendation ....................26 5.4 Local standard ....................26 ..............27 6 END OF LIFE DISPOSAL ....................28...
-
Page 5: Preface
Operators and maintenance personnel must have completed training through The information in this manual describes the machine as dispatched from Arjo. There may be differences due to The machine is accompanied by the following documentation: •... -
Page 6: Safety Precautions
1 SAFETY PRECAUTIONS Operators and maintenance personnel must undergo safety training for the machine. All personnel who handle chemicals for washing and disinfection must understand the washing process, chemicals. Operators and maintenance personnel must undergo regular training in the operation and maintenance of the equipment. There must be a documented list of personnel who have been trained to use the machine. -
Page 7: General Safety Regulations
• Before starting, check the waste outlet at the bottom of the machine works properly. • Do not place items that are sensitive to heat or moisture • Spare parts must only be obtained from Arjo’s sales companies. -
Page 8: Isolator Switch
Close shutoff valves in the water and any steam supply lines. 1.4 Product liability CE marking indicating conformity with European Community harmonised legislation. approval of Arjo negates Arjo’s product liability. CE marking indicating conformity with European Community harmonised legislation 1.5 Attention symbols There are warnings, instructions, and advice in this manual that require extra attention. -
Page 9: Installation Of Machine
2 INSTALLATION OF MACHINE 2.1 General 2.1.1 Make sure assembly and installation work is carried out WARNING! should be assembled and installed by at least two people. • • in accordance with current local regulations and rules. • for indoor installation only. •... -
Page 10: Unpacking
2.2 Unpacking Note! been damaged in transit. is delivered: • Two cabinet keys • One folder containing documentation Remove the packaging. position as possible, when still secure to the pallet using mechanical means. pallet. Figure 1. Removal of anchoring bolts position. -
Page 11: Scale Drawings
2.3 Scale drawings 2.3.1 Freestanding model placed next to wall Scale drawings apply to the FD1600 and FD1610 models. Figure 2. Scale drawing Hot Water Waste connection, S, Cold Water Transformer Waste connection, P, wall Extension frame (option) Transformer: • Dimensions: 300x200x210. -
Page 12: Freestanding Model Wall-Mounted
Scale drawings apply to the FD1600 and FD1610 models. 84,5 Figure 3. Scale drawing Hot Water Wall bracket Cold Water Transformer Waste connection, P, wall Transformer: • Dimensions: 300x200x210. • Positioning: The transformer can be moved, see “Connecting electrical power”. -
Page 13: Under-Bench Model
Scale drawings apply to the FD1605 and FD1615 models. Figure 4. Scale drawing Hot Water Waste connection, S, Cold Water Extension frame Waste connection, P, (option) wall Top* * The top must be removed if the machine is installed under a bench. -
Page 14: Assembly
2.4 Assembly 2.4.1 Freestanding model placed next to wall Install the machine as follows: Measure out and drill the holes for the wall bracket (anti- tipper) used to secure the machine to the wall. Install the water trap to the waste outlet: •... -
Page 15: Freestanding Model Wall-Mounted
Install the machine as follows: Drill the holes for the wall bracket in accordance with the hole pattern. Drill the hole for attachment in the bottom frame. Fix the wall bracket (A) to the wall (B) with screws. Figure 5. Installation of the wall bracket Lift the machine and hook the beam (C) on the rear of the machine onto the wall bracket. -
Page 16: Under-Bench Model
Install the machine as follows: Install the water trap to the waste outlet: • The trap can be connected towards the rear (P-trap) or downwards (S-trap). • The pipe diameter is 90 or 110 mm and should be able to handle 1 liter per second. Note! Position the machine in place. -
Page 17: Water Connections
Temperature At least 2°C, but less 45 – 60°C than 20°C Use KIWA approved check valves from Arjo (A) between the water connections (B) and the machine water hoses (C). Figure 8. Installation of check valves 2.5.3 Connect water Connect the water as follows: Check that the requirements for pipes and water connections are met. -
Page 18: Electrical Connections
2.6 Electrical connections 2.6.1 Positioning the transformer Placement alternatives: • The transformer for freestanding models can be moved: to the opposite side of the machine if so required due to water connections. Ensure that the transformer does not encroach on the area intended for detergents. and is assembled separately from the machine. -
Page 19: Connection Diagram
2.6.3 Connection diagram 2+PE 1N+PE -X50 -X50 Figure 10. Connection diagram Voltage Connection Fuse 240 V 2+PE (TN) 2 × 15 A 3.3 kW 240 V 1N+PE (TN) 1 × 16 A 3.3 kW 230 V 1N+PE (TN) 1 × 16 A 3.0 kW 230 V 1N+PE (TN) -
Page 20: Inspecting The Installation
3 INSPECTING THE INSTALLATION • all parts have been installed according to the installation manual. • all screws have been properly tightened. • there are no sharp edges on any parts that may come into contact with people. • all hoses, pipes and connections are intact and free from defects. -
Page 21: Function Check
3.2 Function check WARNING! Conduct a ground continuity test before the function check and document the result. • supply voltage and that it is protected by a fuse of the correct rating as shown on the type plate. • Open the water valves and close the isolator switch. Check sounds. -
Page 22: Control Panel
3.3 Control panel Figure 11. Control panel Yellow: Process Economy program running Normal program Green: Process Starting a program complete Red: Error indication Display... -
Page 23: Technical Data
4 TECHNICAL DATA 4.1 Connections Connection Connection Cold water (CW) 100 – 800 kPa 20 l/min (1 – 8 bar) Hot water (HW) 100 – 800 kPa 20 l/min (1 – 8 bar) Drain (D) Ø 90 mm or Ø 110 mm Top 1 l/sec Room temperature 5 –... -
Page 24: Protection Class
4.6 Protection class Pollution Degree Overvoltage category Protection class IP22 IP21 Max altitude* 2000m above sea level 2000m above sea level * Maximum height above sea level to use the machine. Calculated sound power level L for the test object, dB ref 1 pW, is shown in the tables below. -
Page 25: Example
4.7.2 Example The calculated sound power level implies different sound levels L in different types of space. With larger room volumes, the sound level decreases slightly and with smaller room volumes it increases slightly. The table below shows examples of what sound level to expect in practice. -
Page 26: Water Quality
Sanitary chemicals: High concentrations of, and high exposure to, sanitary chemicals may cause corrosion and pitting on stainless steel. 5.3 Recommendation • Arjo recommends that water used in the pre-rinsing, washing accordance with the guidelines. • Recommended water quality is drinking water with max 5°dH. •... - Page 27 5.5 to 8 Conductivity <30 μs.cm-1 <40 mg/l Maximum hardness <50 mg/l Chlorine <10 mg/l Heavy metals <10 mg/l Phosphates <0.2 mg/l as P2O5 Silicates <0.2 mg/l as SiO2 Endotoxins <0.25 EU/ml Total number of micro- <100 per 100 ml organisms...
-
Page 28: End Of Life Disposal
6 END OF LIFE DISPOSAL Equipment that has electrical and electronic components should be disassembled and recycled per Waste of Electrical and Electronic Equipment (WEEE) or in accordance with local or national regulation. Disinfection liquids – if you have extra liquid, it’s safe to pour it down the drain with running water. - Page 29 Intentionally left blank...
- Page 30 Intentionally left blank...
- Page 31 AUSTRALIA FRANCE POLSKA Arjo Australia Pty Ltd Arjo SAS Arjo Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Pozna ) AU-6163 Western Australia FR-59436 RONCQ CEDEX...
- Page 32 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise...
