- Page 1 WFC-03 6Z HC RF 24 WFC-03 6Z HC RF 230 WFC-03 10Z HC RF 24 WFC-03 10Z HC RF 230 Water Floor Controller Wireless Heating & Cooling Installation manual wattswater.fr...
-
Page 2: Table Of Contents
USER GUIDE GENERAL INFORMATION ..........................3 Safety warnings and operating instructions ....................3 Application .............................. 3 PRESENTATION .............................. 3 Functions ..............................3 Box content ............................. 3 First installation ............................3 PRODUCT DESCRIPTION ..........................4 LED color meanings ..........................4 Keys ................................ 4 DIP switch configuration .......................... -
Page 3: General Information

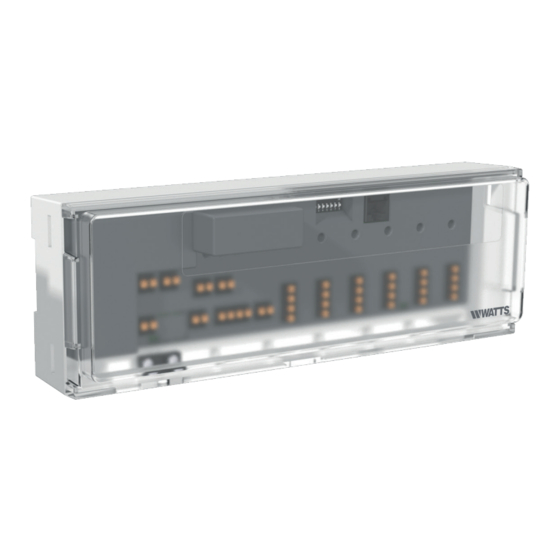

The Connecting box WFC HC RF is especially designed to control your Under Floor Heating and Cooling system. It allows easy and quick connection of thermostats and actuators. 4 versions are available: 230V version 24V version WFC-03 6Z HC RF 24 6 zones WFC-03 6Z HC RF 230 (Require external 230V/24V transformer: TRF03 230/24) WFC-03 10Z HC RF 24... -
Page 4: Product Description
3. Product description 3.1 LED color meanings (In Red) # led Meanings • Fix Red = Heating mode • Fix Blue = Cooling mode • Red blinking (in heating) or blue blinking (in cooling) = Security detection Heat and Cool led (Blue/Red) •... -
Page 5: Dip Switch Configuration
3.3 DIP switch configuration (In Orange) DIP switch number Function Value (default: OFF) Configuration Description Local Pump DIP1 Controller function See 4.3 Global pump NC actuator DIP2 Actuator types See 4.6 NO actuator Pump start delay (for the 2min/5min first actuator in demand) See 4.3 DIP3 and actuator stop delay... -
Page 6: Inputs / Outputs
4.1 Power Supply WFC-03 6Z HC RF 230 / WFC-03 10Z HC RF 230 Power Junction supply earth WFC-03 6Z HC RF 24 / WFC-03 10Z HC RF 24 Power Junction Require to use transformer supplied by Watts supply earth... -
Page 7: Pump Output
4.3 Pump Output There are 2 outputs: • Live contact output (230Vac). • Free contact output. These outputs can be used to trigger: • A zone valve • A pump • A boiler or heat pump The 2 outputs are triggered when there are a heating or cooling demand •... -
Page 8: Humidity Detection Input
4.5 Humidity detection input The product has a humidity detection input. 2 possible types of signal according to DIP8 (See 3.3) • A humidity contact sensor. • Water temperature sensor (CTN 10kΩ): Require BT-D03 RF RH thermostat. 1. Humidity contact sensor. No Humidity Opened contact DIP8 = OFF. -
Page 9: Nc/No Actuators
Connect one NC or NO actuator per connector. • 230V actuators for WFC-03 6Z HC RF 230 and WFC-03 10Z HC RF 230. • 24V actuators for WFC-03 6Z HC RF 24 and WFC-03 10Z HC RF 24. The type of actuators is defined by DIP2. -
Page 10: System Configuration
5. System configuration 5.1 System configuration without central unit 5.1.1 Standalone installation: only one controller or multiple controllers without interconnection. BT-A03 RF BT-D03 RF BT-WR02 RF (Option) WFC-03 HC RF WFC-03 HCM RF 230 (Option) Device 1 Device 2 Remarks If RF pairing is done, the LEDs of the zones selected on the WFC-03 HC RF must turn off and the thermostats must... - Page 11 Device 1 Device 2 Remarks When link is done WFC-03 HC RF and BT-WR02 RF return to pairing mode. This configuration allows a remote pump output. Exit of the controller pairing menu: Long By pressing for 5 seconds, the controller goes in RF pairing menu. press on By using select zone 3...
-
Page 12: System Configuration With Central Unit
Device 1: Main Controller Device 2: Sub-controller Remarks First, all ratio thermostats must be paired with the respective WFC-03 HC RF controller! See 5.1.1 When RF pairing is done, both WFC-03 HC RF return to pairing mode. Exit of the controller pairing menu: Long press on By pressing for 5 seconds, the... - Page 13 5.3 Control a dehumidifier per room There are 2 ways to detect humidity: • At controller level using the humidity detection input (See 4.5). • At the room level if the thermostat embeds a relative humidity sensor. When humidity is detected, there are 2 ways to trigger dehumidifier: •...
-
Page 14: Other Features
6. Other Features 6.1 Anti Grip Feature The feature is enable using DIP6 (See 3.3). If the valves are not active during a week, a complete exercise is triggered (actuator + pump outputs + Heat/cool demand sent to the WFC-03 HCM RF 230). Open odd actuators / Close even actuators Start pump at 2min or 5min... -
Page 15: Technical Characteristics
7. Technical characteristics • WFC-03 6Z HC RF 24 / WFC-03 6Z HC RF 230 • WFC-03 10Z HC RF 24 / WFC-03 10Z HC RF 230 Electrical protection Class II with functional earth IP Protection IP30 Shipping and storage temperature -10°C to 50°C (14°F to 122°F) -
Page 16: Directives
8. Directives Designation Description Link The Low Voltage Directive (LVD) (2014/35/EU) ensures that electrical equipment within certain voltage limits provides a high Low Voltage Directive (LVD) 2014/35/UE level of protection for European citizens, and benefits fully from the Single Market. The Electromagnetic Compatibility (EMC) Directive 2014/30/EU Electromagnetic Compatibility (EMC) ensures that electrical and electronic equipment does not gene-... - Page 17 The descriptions and photographs contained in this product specification sheet are supplied by way of information only and are not binding. Watts Industries reserves the right to carry out any technical and design improvements to its products without prior notice. Warranty: All sales and contracts for sale are expressly conditioned on the buyer’s assent to Watts terms and conditions found on its website at www.wattswater.eu Watts hereby objects to any term, different from or additional to Watts terms, contained in any buyer communication in any form,...
