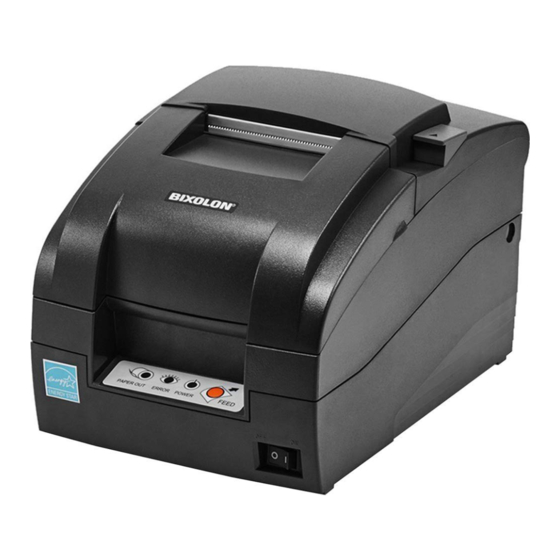

Impact printer
Hide thumbs Also See for SRP-275II:
Table of Contents

Advertisement

Quick Links

Download this manual
Windows Driver Manual
SRP-275II
Impact Printer
Rev. 1.05
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-275II and is the answer not in the manual?

Questions and answers

Related Manuals for BIXOLON SRP-275II

Summary of Contents for BIXOLON SRP-275II

  • Page 1 Windows Driver Manual SRP-275II Impact Printer Rev. 1.05 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SRP-275II ■ Table of Contents 1. Manual Information ......................3 2. Operating System (OS) Environment ................3 3. Windows Driver Preparation ..................3 4. Windows Driver Installation ..................4 4-1 Installing on Windows XP / Server 2003 ..............4 4-1-1 Via Serial Port or Parallel Port ................4 4-1-2 Via USB Port ......................

  • Page 3: Manual Information

    Windows Driver according to PC operating system (OS). We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

  • Page 4: Windows Driver Installation

    SRP-275II 4. Windows Driver Installation 4-1 Installing on Windows XP / Server 2003 4-1-1 Via Serial Port or Parallel Port 1) Double-click the Windows Driver installation file. 2) Click Next. 3) Select a COM or LPT port to be used, and then click Next.
  • Page 5 SRP-275II 4) Click Yes to reboot the PC. 5) Open the printer properties window in the Windows OS. ※ Control Panel – Printers and Faxes. 6) In the Ports tab, click Configure Port. ※ Skip this step if you selected a LPT port.
  • Page 6 SRP-275II 8) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally. Rev. 1.05 - 6 -...

  • Page 7: Via Usb Port

    SRP-275II 4-1-2 Via USB Port 1) Double-click the Windows Driver installation file. 2) Click Next. 3) Select USB and then click Next. Rev. 1.05 - 7 -...
  • Page 8 SRP-275II 4) Click OK. 5) Turn off the printer and then turn it on. The printer driver will be installed automatically. 6) Open the printer properties window in the Windows OS. ※ Control Panel – Printers and Faxes. 7) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally.

  • Page 9: Via Ethernet Port

    SRP-275II 4-1-3 Via Ethernet Port 1) Double-click the Windows Driver installation file. 2) Click Next. 3) Select Ethernet. 4) Enter the IP address and port number, and then click Next. Rev. 1.05 - 9 -...
  • Page 10 SRP-275II 5) Click Yes to reboot the PC. 6) Open the printer properties window in the Windows OS. ※ Control Panel – Printers and Faxes. 7) In the Ports tab, click Configure Port…. 8) Match the communication settings to those of the printer.
  • Page 11 SRP-275II 9) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally. Rev. 1.05 - 11 -...

  • Page 12: Installing On Windows Vista / Server 2008 / 7 / 8 / Server 202012 / 10

    SRP-275II 4-2 Installing on Windows VISTA / Server 2008 / 7 / 8 / Server 202012 / 10 4-2-1 Via Serial Port or Parallel Port 1) Double-click the Windows Driver installation file. 2) Click Next. 3) Select a COM or LPT port to be used, and then click Next.
  • Page 13 SRP-275II 4) Click Yes to reboot the PC. 5) Open the printer properties window in the Windows OS. ※ Control Panel – Hardware and Sound – Device and Printers. 6) In the Ports tab, click Configure Port. ※ Skip this step if you selected a LPT port.
  • Page 14 SRP-275II 8) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally. Rev. 1.05 - 14 -...

  • Page 15: Via Usb Port

    SRP-275II 4-2-2 Via USB Port 1) Double-click the Windows Driver installation file. 2) Click Next. 3) Select USB and then click Next. Rev. 1.05 - 15 -...
  • Page 16 SRP-275II 4) Click OK. 5) Turn off the printer and then turn it on. The printer driver will be installed automatically. 6) Open the printer properties window in the Windows OS. ※ Control Panel – Hardware and Sound – Device and Printers.

  • Page 17: Via Ethernet Port

    SRP-275II 4-2-3 Via Ethernet Port 1) Double-click the Windows Driver installation file. 2) Click Next. 3) Select Ethernet. 4) Enter the IP address and port number, and then click Next. Rev. 1.05 - 17 -...
  • Page 18 SRP-275II 5) Click Yes to reboot the PC. 6) Open the printer properties window in the Windows OS. ※ Control Panel – Hardware and Sound – Device and Printers. 7) In the Ports tab, click Configure Port…. 8) Match the communication settings to those of the printer.
  • Page 19 SRP-275II 9) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally. Rev. 1.05 - 19 -...

  • Page 20: Windows Driver Settings

    SRP-275II 5. Windows Driver Settings The following functions can be configured after installing the Windows driver. 5-1 Paper 1) Open the Printer Properties window for the corresponding OS. 2) In the General tab, click Preferences (Printing Preferences). 3) Click the Paper tab.

  • Page 21: Paper Size

    SRP-275II 5-1-1 Paper Size Paper size of 76 x 3276 mm is selected by default, and the following sizes can be selected. 297 mm 3276 mm If a custom paper size is required, click “…” to add or update a custom paper size. Click Save after specifying the paper width/length and a paper name.

  • Page 22: Paper Type

    SRP-275II 5-1-2 Paper Type You can choose Receipt or Ticket as paper types. Receipt allows flexible paper length according to the data length. Ticket print in fixed length even the print data is short. The default setting is Receipt. Receipt Receipt allows flexible paper length according to the data length.

  • Page 23: Copies

    SRP-275II 5-1-3 Copies Copies are printed by specifying the copy count. The copy count is set to 1 by default. Set this value bigger than 1 to set the number of copies to print. The value should be within the range of 1 to 255.

  • Page 24: Document Settings

    SRP-275II 5-2 Document Settings 1) Open the Printer Properties window for the corresponding OS. 2) In the General tab, click Preferences (Printing Preferences). 3) Click the Document Settings tab. Rev. 1.05 - 24 -...

  • Page 25: Send Commands

    SRP-275II 5-2-1 Send Commands The Windows driver serves to receive the content for print from an application and send it to the printer. The Send Commands function allows for the addition of desired commands at the start or end of the print content.

  • Page 26: Windows Driver Specifications

    SRP-275II 6. Windows Driver Specifications 6-1 Printer fonts This Windows driver supports various printer fonts (device fonts) in the following table. Printing using these fonts is faster than using Windows fonts provided by the operating system. Standard Printer Fonts Printer Fonts...
  • Page 27 SRP-275II Printer Fonts are defined as follows. 1) FontA1x2 - ANSI Character code support (Code Page 1252) - Character size (dot): 9 x 18 (double height) - Character size (point): 18 2) FontA1x2[Ext.] - IBM expansion Character code support (Code Page 437)

  • Page 28: Special Functions

    SRP-275II 6-2 Special Functions This Windows driver supports the special functions as shown in the following table. Select the FontControl font first and use the characters in the table to use the special functions. Take care as this function is not for printing general texts.

  • Page 29: Use Of Windows Driver

    This section contains example codes to control the printer using Windows driver with Visual Basic. Sample programs are included in the CD. 7-1-1 Windows Driver Selection The following code is an example of the selection of the “BIXOLON SRP-275II” Windows Driver. For Each prnPrinter In Printers If prnPrinter.DeviceName = “BIXOLON SRP-275II”...

  • Page 30: Use Of Wordpad

    Launch WordPad, set the printing related options as follows, and test the printer with WordPad. - Select printer Select “Print” from the “File” menu, and select the printer (BIXOLON SRP-275II). - Set paper size, orientation, margin, etc. Select the “Page Setting” from “File” menu, and set paper size, orientation, and margin.
