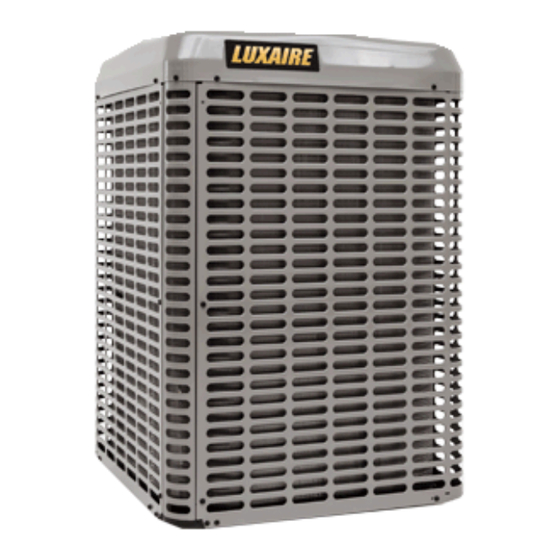

Luxaire LX Series Technical Manual

13.4 seer2 split-system air conditioner - single-phase, r-410a - 1.5 to 5 nominal ton
Hide thumbs Also See for LX Series:
Table of Contents

Advertisement

Quick Links

Luxaire Technical Guide: LX Series TCD2B
Models - 13.4 SEER2 Split-System Air
Conditioner - Single-Phase
R-410A - 1.5 to 5 Nominal Ton
York International Corporation, 5005 York
6268887-LTG-A-1122
Drive, Norman, OK 73069
Supersedes: nothing
2022-11-04
Johnson Controls Ducted Systems
