Luxaire Climasure PAC030 Technical Manual

Climasure series cooling/heating air conditioners r-22, 13 seer 60 hertz
Hide thumbs

Advertisement

Table of Contents

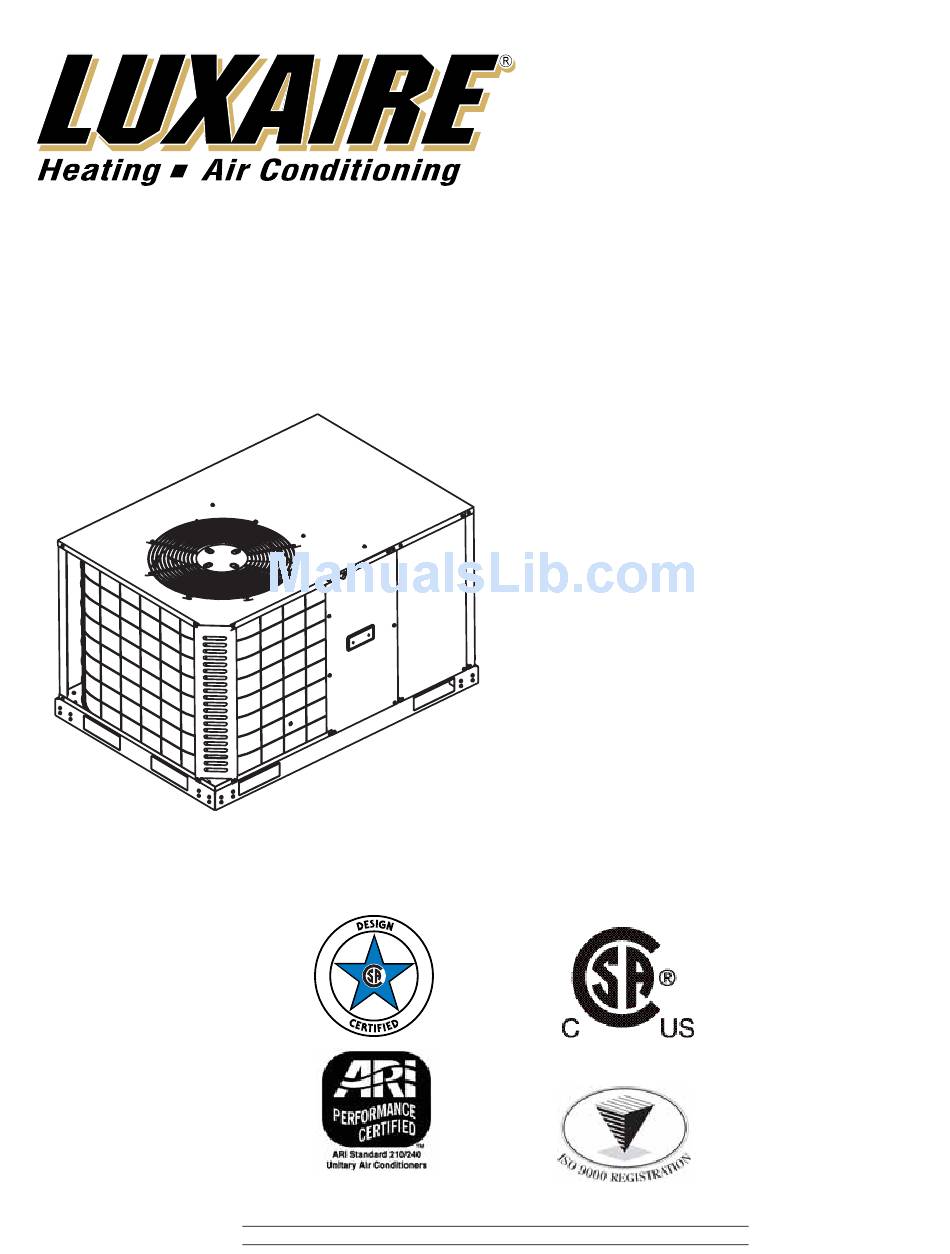

TECHNICAL GUIDE
CLIMASURE™ SERIES
R-22, 13 SEER
60 Hertz
Tested in accordance with:
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

Description

®
These Luxaire
Climasure™ packaged cooling/heating air
conditioners are designed for outdoor installation. Only utility
and duct connections are required at the point of installation.
Field-installed electric heater accessories are available to
provide electric heat, if required. (Single phase only)
Management System
246836-LTG-E-0107
SO 9001
Certified Quality

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Climasure PAC030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Luxaire Climasure PAC030

Summary of Contents for Luxaire Climasure PAC030

  • Page 1: Description

    246836-LTG-E-0107 TECHNICAL GUIDE Description CLIMASURE™ SERIES ® These Luxaire Climasure™ packaged cooling/heating air conditioners are designed for outdoor installation. Only utility R-22, 13 SEER and duct connections are required at the point of installation. Field-installed electric heater accessories are available to 60 Hertz provide electric heat, if required.

  • Page 2: Table Of Contents

    246836-LTG-E-0107 Table of Contents Description ................... . 1 Table of Contents .

  • Page 3: Nomenclature

    246836-LTG-E-0107 Nomenclature Cooling Unit PAC 036 2 1 A Product Category Product Style PAC = Air Conditioner, Single Package, R-22 A = Style A Nominal Cooling Capacity (MBH) Product Generation 024 = 2.0 Ton 042 = 3.5 Ton 1 = First Generation 030 = 2.5 Ton 048 = 4.0 Ton 2 = Second Generation...

  • Page 4: Guide Specifications

    246836-LTG-E-0107 and drain all condensate. Less collection of stagnate • Low Maintenance - Long life, permanently lubricated condensate will build-up. The condensate pan conforms condenser and evaporator fan motor bearings need no to ASHRAE 62-89 standards (Ventilation for Acceptable annual maintenance adding greater reliability to the unit. Indoor Air Quality).
  • Page 5 246836-LTG-E-0107 Unit shall be built on a formed, "Super-Structure" design b. Evaporator and Condenser coils shall be of the direct base pan, with embossments at critical points to add expansion, draw-thru design. strength, rigidity and aid in minimizing sound. Refrigerant Circuit and Refrigerant Safety Components shall Full perimeter base rails shall be provided to assure include: reliable transit of equipment.

  • Page 6: Physical Data

    246836-LTG-E-0107 Physical Data PAC024-060 Physical Data Models Component PAC024 PAC030 PAC036 PAC042 PAC048 PAC060 Nominal Tonnage ARI COOLING PERFORMANCE Gross Capacity @ ARI A point (Btu) 22900 28800 36100 42100 47100 58000 ARI net capacity (Btu) 22500 28000 35100 41000 46200 56400 11.5...
  • Page 7 246836-LTG-E-0107 PHP024-060 Physical Data Models Component PHP024 PHP030 PHP036 PHP042 PHP048 PHP060 Nominal Tonnage ARI COOLING PERFORMANCE Gross Capacity @ ARI A point (Btu) 25160 29700 37000 45800 50600 55700 ARI net capacity (Btu) 24660 29000 36000 44700 49300 53600 11.95 11.5 11.3...
  • Page 8 246836-LTG-E-0107 PAC and PHP Unit Limitations Unit Limitations Size Model Unit Voltage Applied Voltage Outdoor DB Temp (Tons) Max (°F) 208/230-1-60 (2.0) 208/230-1-60 (2.5) 208/230-1-60 (3.0) 208/230-3-60 208/230-1-60 (3.5) 208/230-1-60 208/230-3-60 (4.0) 460-3-60 208/230-1-60 208/230-3-60 (5.0) 460-3-60 Unitary Products Group...

  • Page 9: Capacity Performance

    246836-LTG-E-0107 Capacity Performance PAC024-060 Cooling Capacities PAC024 (2.0 Ton) Air on Temperature of Air on Condenser Coil Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (°F) (MBh) (kW)
  • Page 10 246836-LTG-E-0107 PAC030 (2.5 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW) (°F) 75°F 85°F...
  • Page 11 246836-LTG-E-0107 PAC036 (3.0 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW) (°F) 75°F 85°F...
  • Page 12 246836-LTG-E-0107 PAC042 (3.5 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW) (°F) 75°F 85°F...
  • Page 13 246836-LTG-E-0107 PAC048 (4.0 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW) (°F) 75°F 85°F...
  • Page 14 246836-LTG-E-0107 PAC060 (5.0 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW) (°F) 75°F 85°F...
  • Page 15 246836-LTG-E-0107 PHP024-060 Cooling Capacities PHP024 (2.0 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW)
  • Page 16 246836-LTG-E-0107 PHP030 (2.5 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW) (°F) 75°F 85°F...
  • Page 17 246836-LTG-E-0107 PHP036 (3.0 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW) (°F) 75°F 85°F...
  • Page 18 246836-LTG-E-0107 PHP042 (3.5 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW) (°F) 75°F 85°F...
  • Page 19 246836-LTG-E-0107 PHP048 (4.0 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW) (°F) 75°F 85°F...
  • Page 20 246836-LTG-E-0107 PHP060 (5.0 Ton) Temperature of Air on Condenser Coil Air on Evaporator Coil Sensible Capacity (MBh) Sensible Capacity (MBh) Total Total Total Total Capacity Input Return Dry Bulb (°F) Capacity Input Return Dry Bulb (°F) (MBh) (kW) (MBh) (kW) (°F) 75°F 85°F...
  • Page 21 246836-LTG-E-0107 Heating Capacities PHP024-060 Air Over Evaporator Size Outdoor Temperature (°F @ 72% RH) Coil Model Capacity & kW (Tons) DB (°F 7.69 9.17 10.98 13.19 15.88 19.17 23.18 28.07 1.03 1.12 1.21 1.30 1.39 1.48 1.57 1.66 5.55 7.03 8.84 11.05 13.75...
  • Page 22 246836-LTG-E-0107 PHP024-060 (Continued) Air Over Evaporator Size Outdoor Temperature (°F @ 72% RH) Coil Model Capacity & kW (Tons) DB (°F 13.79 16.47 19.71 23.62 28.33 34.02 40.88 49.17 1.78 1.96 2.14 2.33 2.51 2.70 2.88 3.06 10.94 13.62 16.86 20.77 25.48 31.17...

  • Page 23: Airflow Performance

    246836-LTG-E-0107 Airflow Performance External Static Pressure (Inch Water Gauge) Size Model Unit Speed) (Tons) SCFM SCFM SCFM SCFM SCFM 1064 Low/Medium 1062 Medium 1010 1108 Medium/High 1197 1134 1076 1024 1019 1095 1166 High 1463 1015 1409 1065 1313 1106 1170 1133 1027...
  • Page 24 246836-LTG-E-0107 Additional Static Resistance Electric Heat, kW Size Model Wet Indoor Coil (Tons) 0.05 0.05 0.05 0.06 0.07 0.06 0.06 0.06 0.07 0.08 0.07 0.07 0.07 0.08 0.09 0.08 0.08 0.08 0.09 0.10 0.09 0.09 0.09 0.10 0.12 0.10 0.10 0.11 0.13 (2.0)
  • Page 25 246836-LTG-E-0107 Additional Static Resistance (Continued) Electric Heat, kW Size Model Wet Indoor Coil (Tons) 0.09 0.09 0.09 0.10 0.12 0.10 0.10 0.11 0.13 1000 0.12 0.12 0.12 0.13 0.15 1100 0.13 0.13 0.13 0.14 0.17 1200 0.15 0.15 0.15 0.16 0.19 1300 0.17...
  • Page 26 246836-LTG-E-0107 Electric Heat Minimum Supply Air Minimum Supply Air (CFM) Size Model Voltage Heater kW (Tons) 10.0 15.0 208/230-1-60 (2.0) 208/230-1-60 (2.5) 208/230-1-60 (3.0) 208/230-1-60 1300 1300 1270 1270 (3.5) 1300 1300 1270 1160 208/230-1-60 1300 1300 1270 1270 (4.0) 1300 1300 1270...

  • Page 27: Sound Performance

    246836-LTG-E-0107 Sound Performance Outdoor Sound Power Levels Octave Band Centerline Frequency (Hz) Size Sound Rating Model (Tons) dB (A) 1000 2000 4000 8000 56.7 62.8 68.6 71.5 69.6 65.4 58.4 (2.0) 61.5 77.7 68.4 76.3 76.5 73.5 61.1 61.1 67.5 71.2 72.3 69.4...
  • Page 28 246836-LTG-E-0107 PHP024-060 Heat Pump With/Without Electric Heat OD Fan Supply Max Fuse Compressors Motors Blower Electric Heat Option Size Breaker (each) Volt (each) Motor (Tons) (Amps) Size (Amps) Model Stages Amps None 18.0 2PH08510506 3.6/4.8 17.2/19.9 39.5/42.8 45/45 208/230-1-60 10.2 53.5 16.0 2PH08510706...
  • Page 29 246836-LTG-E-0107 PAC/PHP024-060 Typical Wiring Diagrams PAC024-060 Typical Cooling Unit 208/230-1-60 volt Wiring Diagram Unitary Products Group...
  • Page 30 246836-LTG-E-0107 PAC036, 048 and 060 Typical Cooling Unit 208/230-3-60 volt Wiring Diagram Unitary Products Group...
  • Page 31 246836-LTG-E-0107 PAC048-060 Typical Cooling Unit 460-3-60 volt Wiring Diagram Unitary Products Group...
  • Page 32 246836-LTG-E-0107 PHP024-060 Typical Heat Pump 208/230-1-60 volt Wiring Diagram Unitary Products Group...
  • Page 33 246836-LTG-E-0107 PHP036, 048 and 060 Typical Heat Pump 208/230-3-60 volt Wiring Diagram Unitary Products Group...
  • Page 34 246836-LTG-E-0107 PHP060 Typical Heat Pump 460-3-60 volt Wiring Diagram Unitary Products Group...

  • Page 35: Weights And Dimensions

    246836-LTG-E-0107 Weights and Dimensions PAC AND PHP Unit Weights Unit 4 Point Load Weights Rear Left Right Front Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) Size Model (Tons) Shipping Operating 21.75 (2.0) 21.75 21.75 (2.5) 21.75 23.5 (3.0) 23.5 23.5...
  • Page 36 246836-LTG-E-0107 Unit Dimensions Unit Dimensions Size Dimensions Model (Tons) “A” “B” “C” “D” “E” “F” “G” “H” 30 13/16 26 11/16 45 1/4 12 9/16 8 1/2 23 5/16 2 3/4 (2.0) 32 13/16 30 11/16 47 1/4 12 9/16 8 1/2 24 1/16 2 3/4...
  • Page 37 246836-LTG-E-0107 Unit Clearances Distance Distance Direction Direction (in.) (in.) Right Front Left Rear Bottom 1. Units must be installed outdoors. Over hanging structure or shrubs should not obscure condenser air discharge outlet. 2. Unit may be positioned to draw air from underneath structure. Unitary Products Group...
  • Page 38 246836-LTG-E-0107 Unitary Products Group...
  • Page 39 246836-LTG-E-0107 Unitary Products Group...
  • Page 40 Subject to change without notice. Printed in U.S.A. 246836-LTG-E-0107 Copyright © 2007 by Unitary Products Group. All rights reserved. Supersedes: 246836-LTG-D-1206 Unitary 5005 Norman Products York Group Drive 73069...
