B22.1 BIKE ASSEMBLE INSTRUCTION

Advertisement

loading
Need help?

Need help?

Do you have a question about the B22.1 and is the answer not in the manual?

Questions and answers

Related Manuals for Bodytastic B22.1

Summary of Contents for Bodytastic B22.1

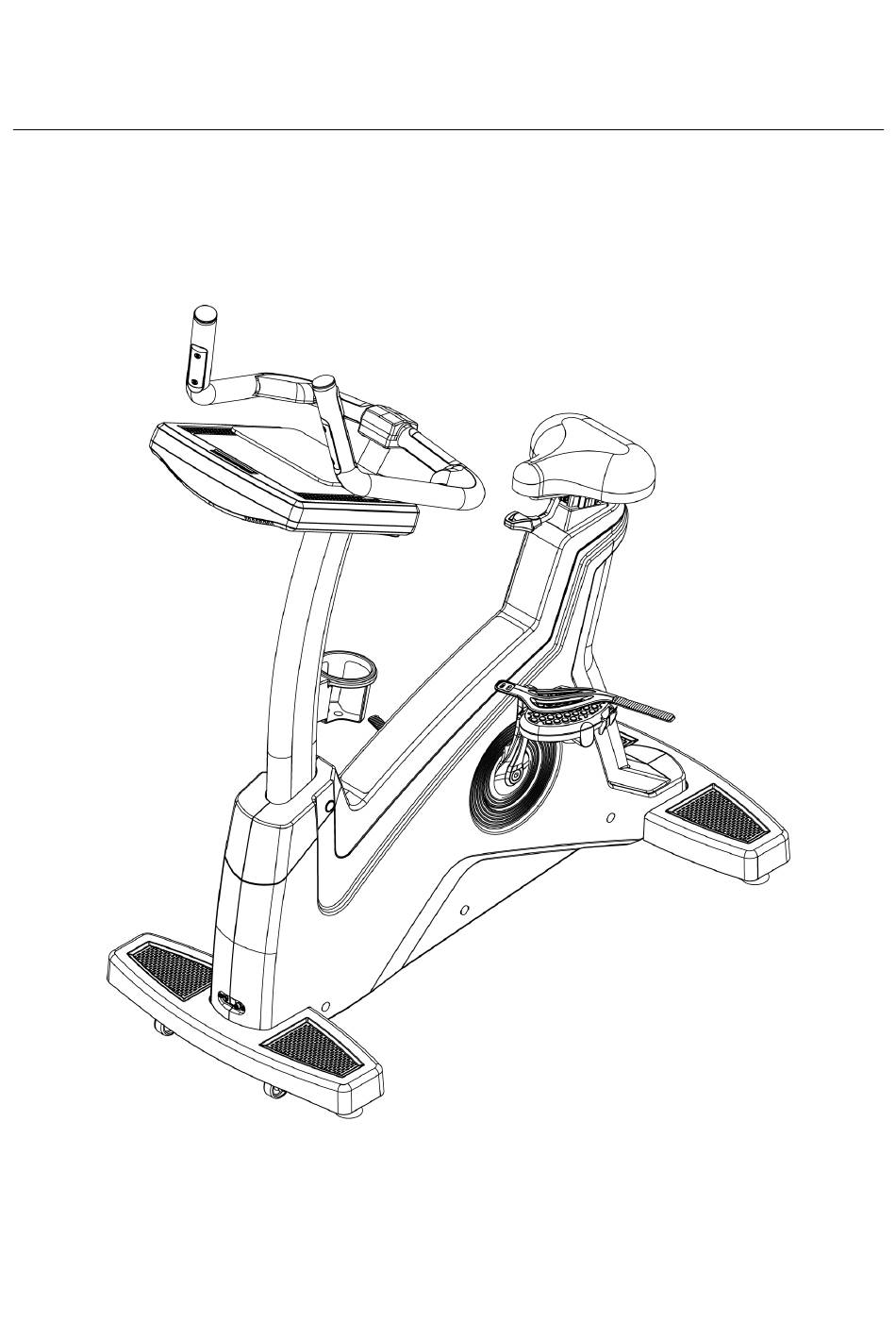

  • Page 1 B22.1 BIKE ASSEMBLE INSTRUCTION...

  • Page 2: Part List

    1. PART LIST ITME Description ITEM Description frame Stuff holder seat Lower computer decorative cover Control tube Flask holder Handle bar tube Screw head cover computer Screw bag Control tube decorative cover Power wire Computer decorative cover front 2014/12/20 V1.1+V1.1...

  • Page 3: Screw Bag

    2. SCREW BAG ITME Description ITEM Description Truss cross self-tapping screw Φ4x10 Cks hex screw M8xP1.25x25 Truss cross self-tapping screw Φ4x12 Spring washer M8 Flat washer Φ8xΦ12x1.0t Truss cross screw M4xP0.7x12 Truss cross self-tapping screw Φ4x15 Cks hex screwM8XP1.25X20 Spring washer M8 CABLE transferring head Truss cross screw M5xP0.8x10 K13 L shaped hex wrench+cross screwdriver...

  • Page 4: Assemble Steps

    3. ASSEMBLE STEPS  STEP 1 ASSEMBLE FRAME AND SEAT Insert seat(B) into frame(A) as the arrow showing and fix them. 2014/12/20 V1.1+V1.1...
  • Page 5  STEP 2 ASSEMBLE FRAME AND CONTROL TUBE Make the control wire of frame through control tube, then tighten control tube(C) on frame(A) with hex screw(K01), spring washer(K02) and flat washer(K02) as the figure showing. 2014/12/20 V1.1+V1.1...
  • Page 6  STEP 3 ASSEMBLE CONTROL TUBE AND CONTROL TUBE DECORATIVE COVER Tighten control tube decorative cover(F) with truss cross screw(K07) & truss cross self-tapping screw(K09) as figure showing, then cover the screw head cover(K). 2014/12/20 V1.1+V1.1...
  • Page 7  STEP 4 ASSEMBLE CONTROL TUBE AND HANDLE BAR TUBE Pull out the wires in handle bar tube(D) and make it through control tube(C), then tighten handle bar tube(D) on control tube(C) with hex screw(K04), spring washer(K05). : Lower control wire : Network cable : TV cable lower : Lower hand grip pulse wire...
  • Page 8  STEP 5 ASSEMBLE COMPUTER AND CONTROL TUBE Connecting wires of computer(E) and the wires outing from control tube(C), then tighten computer(E) on control tube(C) with truss cross screw(K06). : Hand grip instant key connecting wire upper : Hand grip instant key connecting wire upper : Network connecting cable upper : TV cable : Upper control wire...
  • Page 9  STEP 6 ASSEMBLE COMPUTER DECORATIVE COVER, FLASK HOLDER AND COMPUTER CONTROL TUBE Tighten computer decorative cover front(G) on control tube(C) with truss cross screw(K07), and fix stuff holder(H) with truss cross self-tapping screw(K08). Then tighten flask holder(J) on control tube(C) with truss cross screw(K10). At last, fix lower computer decorative cover(I) on computer(E) with truss cross self-tapping screw(K11).
  • Page 10 4. COMPUTER SPEC. 4.1. WINDOWS INSTRUCTION This computer is LED windows, display function as WORKLEVEL, RPM, DISTANCE, WATT, PEED(KMH/MLH), TIME, CALORIES, HEART RATE and HR light, PROGRAM figure. Resistance LEVEL is 40 levels, when at 60RPM, the max WATT value is 400W. Fan: ...
  • Page 11 LEVEL ▲: this key can be used for PEOFILE function selecting and during program working, it can be used for resistance increasing function. LEVEL ▼: this key can be used for PEOFILE function selecting and during program working, it can be used for resistance decreasing function. FAN ON/OFF: power switch of fan.
  • Page 12 value start accounting, default resistance is Level 1 and it will change once per minute. When RPM is not enough, program windows will show figure『RPM↑』 and then it will enter PAUSE mode after 5 seconds. During program works, data windows will show below information: metric 『KMH』...
  • Page 13 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 Imperial 『MLH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』 『DISTANCE COVERED =』moving words shown first and then show『ML= 0.0』 『AVERAGE SPEED =』moving words shown first and then show『MLH= 0.0』...
  • Page 14 for 3 PROGRAMS, when USER selects the PROGRAM and press ENTER to go on setting weight. Weight set ： data windows moves left and show words 『ENTER WEIGHT <30-199>KG』 (or show words『ENTER WEIGHT <70- 440>LBS』), USER can input weight by pressing number 0~9.
  • Page 15 metric『KMH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』 『DISTANCE COVERED =』moving words shown first and then show『KM= 0.0』 『AVERAGE SPEED =』moving words shown first and then show『KMH= 0.0』 『CALORIES BURNT =』moving words shown first and then show『KCAL= 0.0』...
  • Page 16 『CALORIES BURNT =』moving words shown first and then show『KCAL= 0.0』 『AVERAGE WATTS =』moving words shown first and then show『WATTS= 0.0』 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 4.4.3. P 2 MODE：it is INTERVALS MODE Under start/steady windows, press P2 key, program windows will show figure 『INTERVAL 1』.
  • Page 17 show original Profile figure, data windows will show below training accounting items for 2 seconds by turns for twice, then program will back to start/steady condition. During program working, data windows will show below information： metric『KMH』 ：  show『LEVEL』 、 『RPM』 、 『DIST』 、 『WAT』 first for 1s and show value for 10 seconds, then show 『LEVEL』...
  • Page 18 0.0』 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 imperial『MLH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』 『DISTANCE COVERED =』moving words shown first and then show『ML= 0.0』 『AVERAGE SPEED =』moving words shown first and then show『MLH= 0.0』...

  • Page 19: Heart Rate

    Age set：press ENTER key for age setting, data windows will show words『ENTER AGE<10-99>』, when user use number 0~9 to input age, data windows will show 『AGE= xxx』 and flash the input value. If the input age is lower than 10, data windows will show『AGE= 10』...
  • Page 20 During program working, data windows will show below information： metric『KMH』 ：  show『LEVEL』 、 『RPM』 、 『DIST』 、 『WAT』 first for 1s and show value for 10 seconds, then show 『LEVEL』 、 『KMH』 、 『TIME』 、 『CAL』 first for 1s and show value for 10 seconds.
  • Page 21 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 imperial『MLH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』 『DISTANCE COVERED =』moving words shown first and then show『ML= 0.0』 『AVERAGE SPEED =』moving words shown first and then show『MLH= 0.0』...
  • Page 22 move left and show words『PRESS LEVEL UP/DOWN TO SELECT PROFILE』. Then press LEVEL ▲ or LEVEL ▼to select other PROFILE of HRC. HRC total has 60%、 65%、70%、75%、80%、85% of 6 kinds HRC mode. When you select the HR program value, program windows will show the value and flash, press ENTER to enter age setting steps.
  • Page 23 value for 10 seconds, then show『LEVEL』 、 『MLH』 、 『TIME』 、 『CAL』 first for 1s and show value for 10 seconds. When program finished, data windows will show below information： metric『KMH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』...
  • Page 24 0.0』 『AVERAGE SPEED =』moving words shown first and then show『MLH= 0.0』 『CALORIES BURNT =』moving words shown first and then show『KCAL= 0.0』 『AVERAGE WATTS =』moving words shown first and then show『WATTS= 0.0』 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』...
  • Page 25  During fitness, if there is no wireless signal detected, windows will show "NO PULSE" words. If the time is up to 60 seconds, it will enter PAUSE mode. When PRM is lower than 40, program windows will show figure 『RPM↑』 and enter ...
  • Page 26 During program working, data windows will show below information： metric『KMH』 ：show『LEVEL』 、 『RPM』 、 『DIST』 、 『WAT』 first for 1s and show  value for 10 seconds, then show『LEVEL』 、 『KMH』 、 『TIME』 、 『CAL』 first for 1s and show value for 10 seconds. imperial 『...
  • Page 27 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 WATT CONTROL MODE：  Under fitness condition, when WATT value is lower than 25W, program windows will show figure『RPM ↑』.  Under fitness condition, when WATT value is more than 400W, program windows will show figure『RPM ↓』.
  • Page 28 3.CALORICES』. Use number key(1~3key) to select clockwise item and press ENTER to go to age setting steps. Age setting steps：at this time, program windows will flash and show default value "30", data windows will show『ENTER AGE<10-99>』. USER can press 0~9 number key to input your age.
  • Page 29 number 0~9 to input training calories. After finishing the set, press ENTER key to start this program. Training distance set range is 1~999 Kcal. During program working, user can press LEVEL▲, LEVEL▼ key to change WORKOUT LEVEL, total L1~L40 levels for selecting. When program finishing or working, press STOP Key and program windows will auto show original Profile figure, data windows will show below training accounting items for 2 seconds by turns for twice, then program will back to start/steady condition.
  • Page 30 『CALORIES BURNT =』moving words shown first and then show『KCAL= 0.0』 『AVERAGE WATTS =』moving words shown first and then show『WATTS= 0.0』 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 imperial『MLH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』...
  • Page 31 5. PROFILE FIGURE: 5.1. P 1 FIGURE: PROGRAM 1 PROFILE PROGRA M 2 PROFILE PROGRAM 3 PROFILE 2014/12/20 V1.1+V1.1...
  • Page 32 5.2. P 2 FIGURE: INTERVAL 1 PROGRAM： INTERVAL 2 PROGRAM： INTERVAL 3 PROGRAM： 2014/12/20 V1.1+V1.1...
  • Page 33 5.3. TEST FIGURE: FITNESS TEST： TEST-MALE TEST-FEMALE 5.4. HRC FIGURE: HRC： 5.5. WATT FIGURE: WATT CONTROL： 2014/12/20 V1.1+V1.1...
  • Page 34 2014/12/20 V1.1+V1.1...
