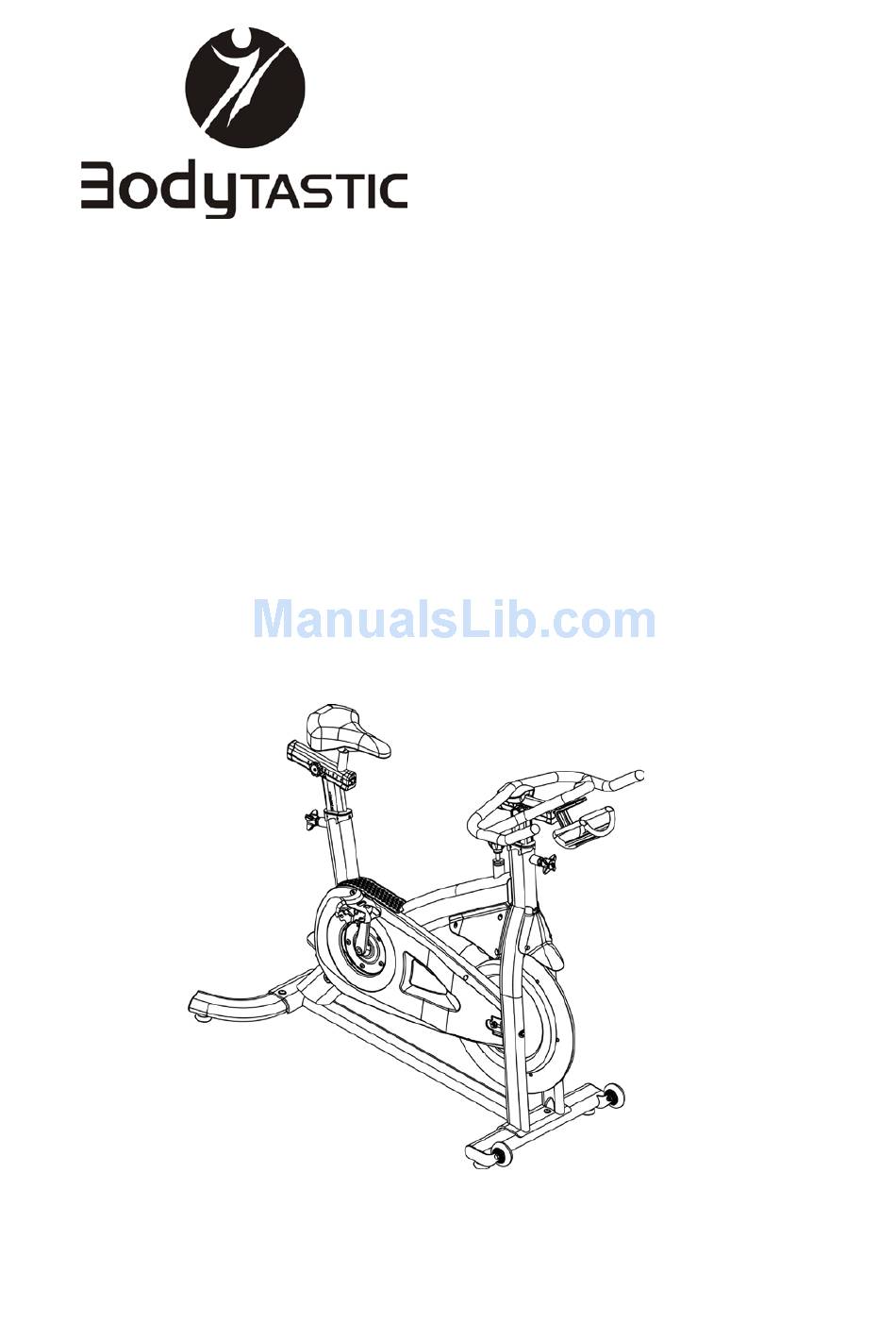

  • Page 1 IC Bikes 96RV TurboSpin ® Owner’ s Manual V.1.0 2016/03/ 09...
  • Page 3 INTRODUCTION ® Thanks you for choosing our TurboSpn IC bike. You have just become our valued customer. Our team will offer you detailed product information, expert cycling advice, and customer support. Our Bike is designed to closely simulate the feel of outdoor cycling. Its unique design, with fixed gear and high inertia flywheel, provide an intense work out.

  • Page 4: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS This symbol appearing throughout this manual means: Attention! Be Alert! Your safety is involved. The definition of WARINGS means that call attention to the potential hazard which, if not avoided, could result in loss of life, serious injury Read and understand the complete Owner’s Manual and Warnings before using the exercise equipment ...
  • Page 5 IMPORTANT SAFETY WARNINGS  Warn the bystander to keep a safe distance at least 1 meter. It is not allowed to touch the operator while the equipment is in use.  To stay hydrated, drink water throughout your ride as needed. ...
  • Page 6 FEATURES  Magnetic Brake provides consistent, maintenance-free resistance that won't wear or change over time  Aluminum construction on handlebar stem/seat post offers maximum stability and durability.  Position number are permanently on the vertical post and horiztonal sliding allowing user to set the comfortable position and replicate nex time. ...

  • Page 7: Product Specifications

    PRODUCT SPECIFICATIONS Dimensions 59” L x 19.9” W x 48.4” H （150cm x 50.5cm x 123cm） Assembled Unit Weight 112 lbs（51 kg） Packaged weight 123 lbs（56 kg） Maximum User Weight Limit 160 kg（350 lbs） Owner’s Manual...

  • Page 8: Safety Warning Labels

    SAFETY WARNING LABELS Before using the Equipment, Please find and read all the safety-warning labels. Replace any damaged or illegible or missing labels. You can contact customer support service if you need to replace the labels Label 1 : Chain Warning Label Location : Inside the chain guard Label 1...

  • Page 9: Parts List

    Parts list Description Q’ty Figure Front Stabilizer Rear Stabilizer Hex Nut Foot Leveler Socket Hex Screw M8x1.25x55L SUS304 Flat washer M8(φ19xφ8.5x1t) Nylon Nut M8x1.25(SUS304) Pedal Adjustment Handle Non- Adjustable Handlebar Owner’s Manual...
  • Page 10 Parts list Description Q’ty Figure Handleabr post Socket Hex Screw M8x1.25x12L Socket Hex Screw M6*1.0*15L Water Bottle Holder Flat washer M6(φ16xφ6.5x1t) Wrench M22*3t*107L L- Hex Wrench 6mm/35Lx95L L-Hex Wrench 4mm/60Lx25L L-Hex Wrench 5mm/125Lx30L Combination Wrench 13/17mm Owner’s Manual...

  • Page 11: Front Stabilizer Assembly

    Assembly Front Stabilizer Assembly 1. Position the front stabilizer（1）on the frame bracket as showed in the figure. Make sure the transport wheel are facing up and toward the front of the bike. 2. Attach the stabilizer with two hex screws (3） , four flat washers（4）and two nylon nuts（5）.

  • Page 12: Pedal Assembly

    Assembly Pedal Assembly 1. Remove pedals from the components box. 2. Look at the end of the pedal axle and will notice the each pedal is marked with an R and L on the spindle. It is indicated which side of bike the pedal is intended to assemble.

  • Page 13: Handlebar Assembly

    Assembly Handlebar Assembly 1. Assemble the Handlebar（8） on to Handlebar post（9）with four socket hex screws（10） and four flat washers（4）. 2. Insert the Handlebar Assembly into the frame tube and tightened firmly with Adjustment Handle. Water Bottle Holder Assembly Assemble the Bottle Holder （ 12） with two socket hex screws（11）and two flat washer（13）.
  • Page 14 Assembly If equipped with Horiztonal adjustable Handlebar, please follow the below assembly instruction Part List Description Q’ty Figure Horiztonal adjustable Handlebar Upper Horiztonal Adjustable Bracket Socket Hex Screw Seat Post Step. Assemble the Upper Horizontal adjustable Bracket （9）and Adjustable Handlebar（8） with two socket Hex screws（10） Pull out the safety Pin（2）and slide the Handlebar onto the seat post（11）.

  • Page 15: How To Use

    HOW TO USE Our indoor cycling is easy to use. The bike allows user to full control the levels of resistance by simply adjusting the Resistance knob. You can choose the lower resistance, which enable you to pedal at faster pace, or the higher resistance at lower RPMs (Resolution per minutes).

  • Page 16: Handlebar Adjustment

    HOW TO USE Seat forward-and-backward adjustment Once the seat is in the desired position, dismount the bike and adjust the seat forward-and-backward position. Loosen the knob under the seat slider by turning counterclockwise. Slide the seat forward and backward to the desire position. When the seat is in the desired position, turn the knob clockwise to firmly tighten the knob.

  • Page 17: Resistance Adjustment

    HOW TO USE Handlebar forward-and-backward adjustment Once the Handlebar is in the desired position, dismount the bike and adjust the handlebar forward-and-backward position. Loosen the knob under the handlebar slider by turning counterclockwise. Slide the handlebar forward and backward to the desire position. When the handlebar is in the desired position, turn the knob clockwise to firmly tighten the knob.

  • Page 18: Leveling The Bike

    HOW TO USE  Pedal strap adjustment Place the ball of you feet in the toe clip till the front of the shoe snugly in the cage. Then tighten the strap of toe clip around your shoe by pulling up on the strap until cage of toe clip fits snugly around the shoe.

  • Page 19: Moving The Bike

    HOW TO USE  Moving the bike Make sure the handlebar post and Seat post securely tightening pop-pin clockwise. Standing in the from of Bike and clasp the end of handlebar. Place one foot on the lower stabilizer and tilt the bike towards you until the bike is titled enough to allow the transport wheel to touch the ground.

  • Page 20: Maintenance

    MAINTENANCE  Chain Tension adjustment The chain tension had been set and lubricated before shipped. It should not need to be adjusted when first using. However, you may need to make the minor tension adjustment over time. Note: Make sure you adjust both side equally, either tighten or loosen the chain tension so that the flywheel keep in alignment with the frame Tighten the Chain tension Move the crank arms back and forth.

  • Page 21: Maintenance Schedule

    MAINTENANCE  Maintenance Schedule The safety level given by the design can be maintained only when the bike is regularly checked for wear and damage. Fail components should be replaced immediately. Please read and understand all the maintenance instructions thoroughly before starting maintenance ...
  • Page 22 MAINTENANCE Wipe down to remove Soap & water, diluted non- Horizontal Slider moisture- Swear, water… abrasive cleaning liquids Check and ensure that the pedals are tight in the crank. Pedal All screws on pedal are tight. Toe clip cage and strap are not damaged and frayed Resistance Release the Knob to ZERO...
  • Page 23 MAINTENANCE  Monthly mintenance This should be comprehensive checking of the overall frame, main assembly components Part Recommended Action Cleaner Lubricant Chain 1. Lubricate drive chain with bicycle Lubricant ® lubricant containing PTFE (Teflon ) from containing ® the hope in top of the chain guard. PTFE (Teflon 2.

  • Page 24: Exploded Drawing

    Exploded drawing Owner’s Manual...
  • Page 25 Parts list Item No. Tonic PN English Name Unit Remark 100096RC014D Frame Assembly- Black texture color A13096RC004D Front Stabilizer Assembly A13096RC014D Rear Stabilizer Assembly 520696E3 Sleeve 2025108 Bottom Bracket A18595RV00 Pulley & Crank Assembly A12296RC08 Magnetic Brake Assembly 7034112 Resetting Spring 700391004500 Stainless Screw (Hex) 7000591016100...
  • Page 26 A16096RC02 Sweat Protection Guard (Right) 35240102103 Saddle(Black color) 500796RC01P0 Bottle Holder Assembly-single holder 67090005 Resistance Knob Sticker 7034117 Compression Spring 203100J51515 Belt 700300501200 Stainless Screw (Philip-head) 700059819100 Stainless Washer 700390601500 Stainless Screw (Inner Hex) 700390805500 Stainless Screw (Inner Hex) 70011080 Stainless Nylon Nut 700059819100 Stainless Washer...
  • Page 28 Building One, 34 Redland Drive, VERMONT 3133. Phone : 61 3 98738000 E: service@bodytastic.com.au W: http://www.bodytastic.com.au/...
