Bodytastic Vertex R22.1 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

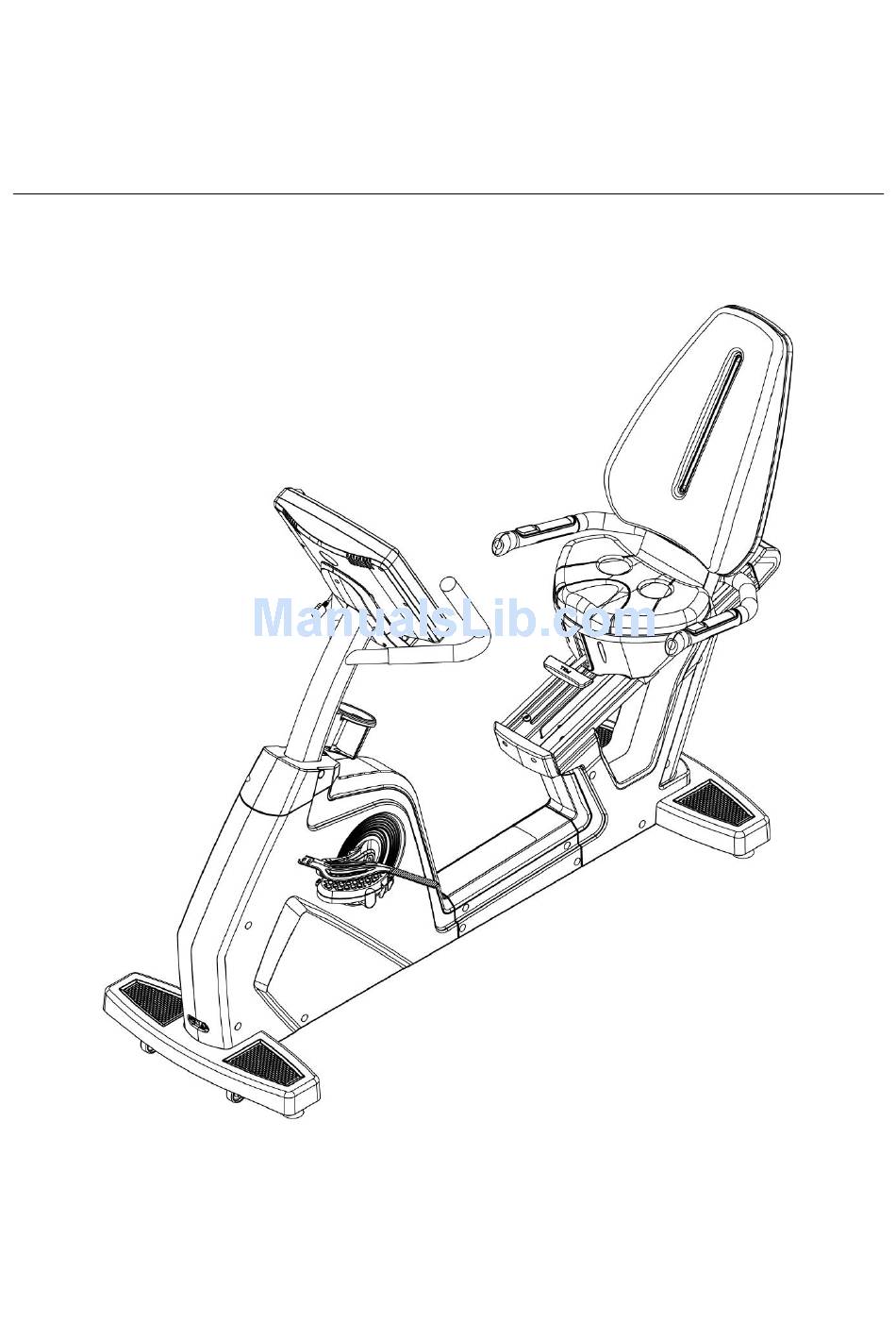

R22.1 RECUMBENT ASSEMBLE
INSTRUCTION

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vertex R22.1 and is the answer not in the manual?

Questions and answers

Related Manuals for Bodytastic Vertex R22.1

Summary of Contents for Bodytastic Vertex R22.1

  • Page 1 R22.1 RECUMBENT ASSEMBLE INSTRUCTION...

  • Page 2: Part List

    1. PART LIST ITME Description ITEM Description frame Computer decorative cover front Control tube Stuff holder Computer Flask holder Seat Lower seat cover Handrail tube Screw head cover Control tube decorative cover Screw bag Lower computer decorative cover Power wire 2015/2/2 V1.1+V1.1...
  • Page 3 2. SCREW BAG ITME Description ITEM Description K01 Cks hex screw M8xP1.25x25 K12 Cks hex screw M8xP1.25x25 stainless steel K02 Spring washer M8 K13 Spring washer M8 stainless steel K03 Washer Φ8xΦ20x2.0t K14 Washer Φ8xΦ16x1.5t stainless steel K04 Truss cross screw M5xP0.8x12 K15 Round head cross screw NO.10-32 UNFX20mm stainless steel(with inner toothed washer)
  • Page 4 3. ASSEMBLE STEPS  STEP 1 ASSEMBLE FRAME AND CONTROL TUBE Make wire of frame(A) through control tube(B) and tighten control tube(B) on frame(A) with cks hex screw(K01), spring washer(K02) and washer(K03). 2015/2/2 V1.1+V1.1...
  • Page 5  STEP 2 ASSEMBLE CONTROL TUBE AND COTNROL TUBE DECORATIVE COVER Tighten control tube decorative cover(F) with truss cross screw(K04) and truss cross self-tapping screw(K04) as figure showing, then cover screw head cover (L). : Lower control wire : Network connecting wire lower : TV cable lower : Hand grip pulse wire middle : Hand grip instant key connecting wire middle...
  • Page 6  STEP 3 ASSEMBLE CONTROL TUBE AND COMPUTER Connecting the wires of computer(C) and control tube(B) and tighten with truss cross screw(K06) as figure showing, when assemble, please confirm that it has be locked to avoid the computer releasing and damaging. Caution: ...
  • Page 7  STEP 4 ASSEMBLE COMPUTER DEOCRATIVE COVER, FLASK HOLDER AND COMPUTER CONTROL TUBE Tighten computer decorative cover front(H) on control tube with truss cross screw(K19) as below figure showing, and fix the stuff holder(I) with truss cross self-tapping screw(K20), then tighten flask holder(J) on control tube with truss cross screw(K08). At last, fix lower computer decorative cover (G) on computer with truss cross screw(K07).
  • Page 8  STEP 5 ASSEMBLE HANDRAIL AND SEAT Tighten seat(D) and handrail tube(E) with stainless steel cks hex screw(K09) & spring washer(K10), washer(K11). 2015/2/2 V1.1+V1.1...
  • Page 9  STEP 6 ASSEMBLE FRAME AND SEAT Insert hand grip pulse wire of seat handle bar into the socket of frame slipping rail, then tighten seat(D) with stainless steel cks hex screw(K12) & spring washer(K13), washer(K14) as figure showing. Caution: ...
  • Page 10  STEP 7 ASSEMBLE LOWER SEAT COVER AND FRAME Tighten lower seat cover(K) with stainless steel round head cross s crew [ with inner toothed washer(K15)] and truss cross self-tapping screw(K16) , washer (K21)as figure showing, and the assembly finished. 2015/2/2 V1.1+V1.1...
  • Page 11 4. COMPUTER SPEC. 4.1. WINDOWS INSTRUCTION This computer is LED windows, display function as WORKLEVEL, RPM, DISTANCE, WATT, PEED(KMH/MLH), TIME, CALORIES, HEART RATE and HR light, PROGRAM figure. Resistance LEVEL is 40 levels, when at 60 RPM, the max WATT value is 400W. Fan: ...
  • Page 12 LEVEL ▲: this key can be used for PEOFILE function selecting and during program working, it can be used for resistance increasing function. LEVEL ▼: this key can be used for PEOFILE function selecting and during program working, it can be used for resistance decreasing function. FAN ON/OFF: power switch of fan.
  • Page 13 value start accounting, default resistance is Level 1 and it will change once per minute. When RPM is not enough, program windows will show figure『RPM↑』 and then it will enter PAUSE mode after 5 seconds. During program works, data windows will show below information: metric 『KMH』...
  • Page 14 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 Imperial 『MLH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』 『DISTANCE COVERED =』moving words shown first and then show『ML= 0.0』 『AVERAGE SPEED =』moving words shown first and then show『MLH= 0.0』...
  • Page 15 for 3 PROGRAMS, when USER selects the PROGRAM and press ENTER to go on setting weight. Weight set ： data windows moves left and show words 『ENTER WEIGHT <30-199>KG』 (or show words『ENTER WEIGHT <70- 440>LBS』), USER can input weight by pressing number 0~9.
  • Page 16 metric『KMH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』 『DISTANCE COVERED =』moving words shown first and then show『KM= 0.0』 『AVERAGE SPEED =』moving words shown first and then show『KMH= 0.0』 『CALORIES BURNT =』moving words shown first and then show『KCAL= 0.0』...
  • Page 17 『CALORIES BURNT =』moving words shown first and then show『KCAL= 0.0』 『AVERAGE WATTS =』moving words shown first and then show『WATTS= 0.0』 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 4.4.3. P 2 MODE：it is INTERVALS MODE Under start/steady windows, press P2 key, program windows will show figure 『INTERVAL 1』.
  • Page 18 show original Profile figure, data windows will show below training accounting items for 2 seconds by turns for twice, then program will back to start/steady condition. During program working, data windows will show below information： metric『KMH』 ：  show『LEVEL』 、 『RPM』 、 『DIST』 、 『WAT』 first for 1s and show value for 10 seconds, then show 『LEVEL』...
  • Page 19 0.0』 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 imperial『MLH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』 『DISTANCE COVERED =』moving words shown first and then show『ML= 0.0』 『AVERAGE SPEED =』moving words shown first and then show『MLH= 0.0』...
  • Page 20 Age set：press ENTER key for age setting, data windows will show words『ENTER AGE<10-99>』, when user use number 0~9 to input age, data windows will show 『AGE= xxx』 and flash the input value. If the input age is lower than 10, data windows will show『AGE= 10』...
  • Page 21 During program working, data windows will show below information： metric『KMH』 ：  show『LEVEL』 、 『RPM』 、 『DIST』 、 『WAT』 first for 1s and show value for 10 seconds, then show 『LEVEL』 、 『KMH』 、 『TIME』 、 『CAL』 first for 1s and show value for 10 seconds.
  • Page 22 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 imperial『MLH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』 『DISTANCE COVERED =』moving words shown first and then show『ML= 0.0』 『AVERAGE SPEED =』moving words shown first and then show『MLH= 0.0』...
  • Page 23 move left and show words 『PRESS LEVEL UP/DOWN TO SELECT PROFILE.』 . Then press LEVEL ▲ or LEVEL ▼to select other PROFILE of HRC. HRC total has 60 %、 65%、70%、75%、80%、85% of 6 kinds HRC mode. When you select the HR program value, program windows will show the value and flash, press ENTER to enter age setting steps.
  • Page 24 value for 10 seconds, then show『LEVEL』 、 『MLH』 、 『TIME』 、 『CAL』 first for 1s and show value for 10 seconds. When program finished, data windows will show below information： metric『KMH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』...
  • Page 25 0.0』 『AVERAGE SPEED =』moving words shown first and then show『MLH= 0.0』 『CALORIES BURNT =』moving words shown first and then show『KCAL= 0.0』 『AVERAGE WATTS =』moving words shown first and then show『WATTS= 0.0』 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』...
  • Page 26  During fitness, if there is no wireless signal detected, windows will show "NO PULSE" words. If the time is up to 60 seconds, it will enter PAUSE mode. When PRM is lower than 40, program windows will show figure 『RPM↑』 and enter ...
  • Page 27 During program working, data windows will show below information： metric『KMH』 ：show『LEVEL』 、 『RPM』 、 『DIST』 、 『WAT』 first for 1s and show  value for 10 seconds, then show『LEVEL』 、 『KMH』 、 『TIME』 、 『CAL』 first for 1s and show value for 10 seconds. imperial 『...
  • Page 28 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 WATT CONTROL MODE：  Under fitness condition, when WATT value is lower than 25W, program windows will show figure『RPM ↑』.  Under fitness condition, when WATT value is more than 400W,program windows will show figure『RPM ↓』.
  • Page 29 3.CALORICES』. Use number key(1~3key) to select clockwise item and press ENTER to go to age setting steps. Age setting steps：at this time, program windows will flash and show default value "30", data windows will show『ENTER AGE<10-99>』. USER can press 0~9number key to input your age.
  • Page 30 number 0~9 to input training calories. After finishing the set, press ENTER key to start this program. Training distance set range is 1~999 Kcal. During program working, user can press LEVEL▲, LEVEL▼ key to change WORKOUT LEVEL, total L1~L40 levels for selecting. When program finishing or working, press STOP Key and program windows will auto show original Profile figure, data windows will show below training accounting items for 2 seconds by turns for twice, then program will back to start/steady condition.
  • Page 31 『CALORIES BURNT =』moving words shown first and then show『KCAL= 0.0』 『AVERAGE WATTS =』moving words shown first and then show『WATTS= 0.0』 『AVERAGE METS =』moving words shown first and then show『METS= 0.0』 imperial『MLH』 ：  『EXERCISE TIME =』moving words shown first and then show『HHMMSS= 0.00.00』...
  • Page 32 5. PROFILE FIGURE: 5.1. P 1 FIGURE: PROGRAM 1 PROFILE PROGRAM 2 PROFILE PROGRAM 3 PROFILE 2015/2/2 V1.1+V1.1...
  • Page 33 5.2. P 2 FIGURE: INTERVAL 1 PROGRAM： INTERVAL 2 PROGRAM： INTERVAL 3 PROGRAM： 2015/2/2 V1.1+V1.1...
  • Page 34 5.3. TEST FIGURE: FITNESS TEST： TEST-MALE TEST-FEMALE 5.4. HRC FIGURE: HRC： 5.5. WATT FIGURE: WATT CONTROL： 2015/2/2 V1.1+V1.1...
  • Page 35 2015/2/2 V1.1+V1.1...
