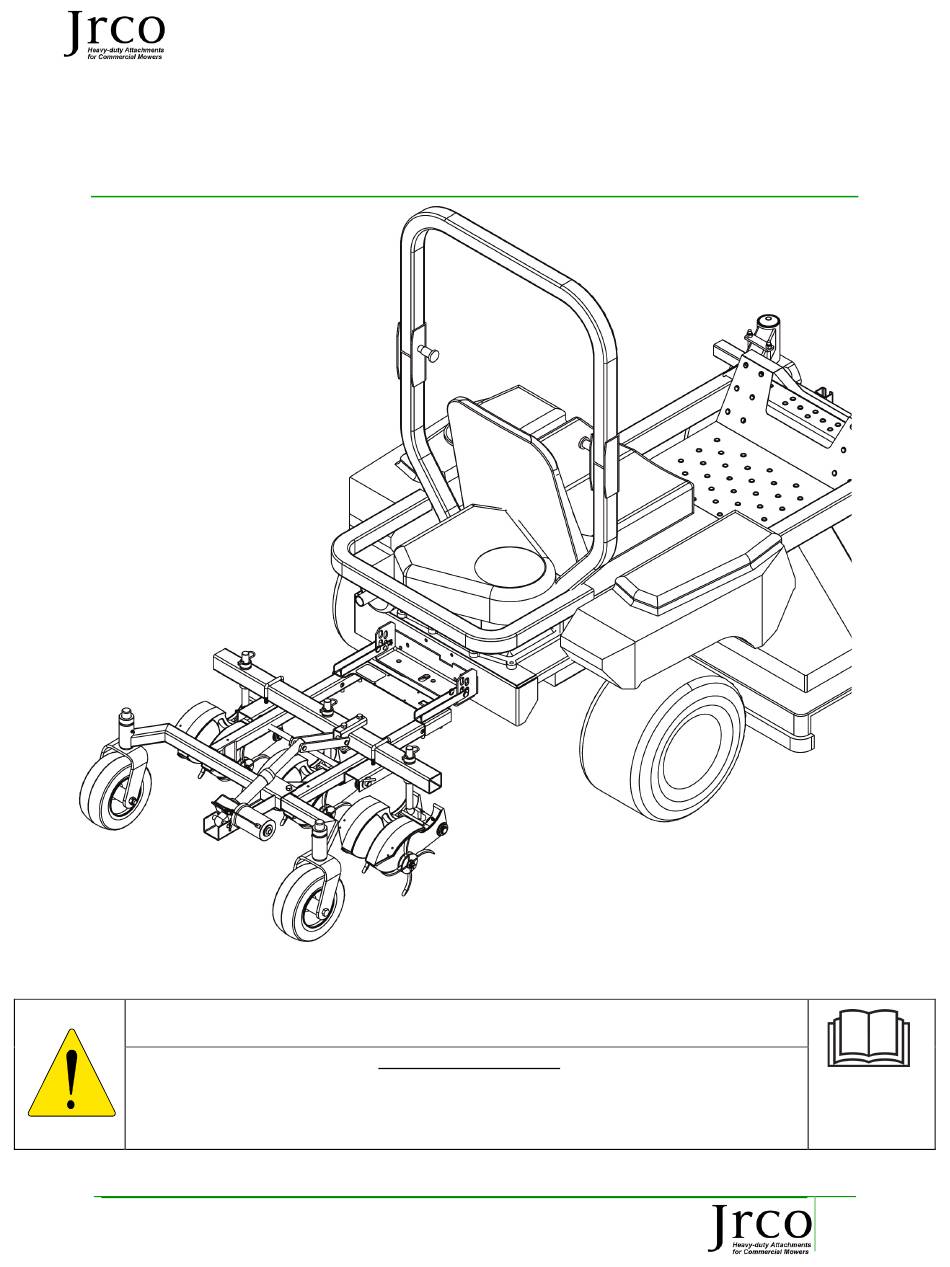

Jrco 753 Operator's Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Operator's Manual

WARNING

READ AND UNDERSTAND THE OPERATOR'S MANUAL COMPLETELY BEFORE USING

THIS ATTACHMENT. ASSEMBLE, TEST AND USE ONLY IN ACCORDANCE WITH THE

OPERATOR'S MANUAL INSTRUCTIONS.

20195 South Diamond Lake Road, STE 100

Rogers, MN 55374

800.966.8442

MODEL 753

Operator's Manual

7918-3.JRC

Table of Contents

Need help?

Do you have a question about the 753 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jrco 753

Page 1 MODEL 753 Operator’s Manual Operator’s Manual WARNING READ AND UNDERSTAND THE OPERATOR’S MANUAL COMPLETELY BEFORE USING THIS ATTACHMENT. ASSEMBLE, TEST AND USE ONLY IN ACCORDANCE WITH THE OPERATOR’S MANUAL INSTRUCTIONS. 7918-3.JRC 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374...
Page 2: Table Of Contents
MODEL 753 Operator’s Manual Table of Contents Introduction ..............................4 1.1 ..Application ................................4 1.2 ..Navigating This Manual ..........................4 1.3 ..Operation References/Terminology......................4 1.4 ..Owner Assistance ...............................5 1.5 ..Model Identification ............................5 1.6 ..Further Assistance .............................6 Assembly and Set-up ..........................7 2.1 ..
Page 3 MODEL 753 Operator’s Manual Attachment Instructions ........................16 Mounting Instructions ......................... 16 Dismounting Instructions ........................16 6.1 ..Removing Hooker Aerator .......................... 16 Storage Instructions ..........................16 7.1 ..Storing Your Hooker Aerator ........................16 Transporting Instructions ........................17 8.1 ..Transporting Your Hooker Aerator ....................... 17 Field Use Set-up and Instructions ....................
Page 4: Introduction
The soft-plug style aeration is ideal for golf fairways, sports fields or anywhere true plug aeration is needed, without the messy compacted core clean-up of a hollow tine aerator. The JRCO Hooker Aerator is many times faster than traditional hollow tine aerators, and is low maintenance with few moving parts and no engine.
Page 5: Owner Assistance
The parts and components used on your JRCO Attachment have been specifically engineered for JRCO Attachments and should only be replaced with JRCO parts. Contact your local JRCO Dealer for replacement parts or contact our customer service department for assistance in parts, locating your local servicing dealer and more.
Page 6: Further Assistance
Operator’s Manual 1.6 Further Assistance Your dealer and all of us at JRCO want you to be pleased with your attachment. Should you require further assistance or have questions regarding your attachment, please contact your local dealer where you purchased your attachment. If you are unable to satisfy your needs...
Page 7: Assembly And Set-Up
MODEL 753 Operator’s Manual 2 Assembly and Set-up 2.1 Frame Assembly Parts 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800.966.8442...
Page 8 MODEL 753 Operator’s Manual 5026.JRC Box Hitch 8093.JRC HH Bolt, ½ x 5 ½” Part No. Description Part No. Description 7805-2.JRC Stabilizer Frame 4233.JRC 2-way locknut, ½-13 8281.JRC Frame Assembly 7915.JRC Shaft Collar, 1” 7883.JRC Tow Tongue 7583-1.JRC Flange Bushing, 1”...
Page 9: Caster Head Assembly Parts
MODEL 753 Operator’s Manual 2.2 Caster Head Assembly Parts 7873.JRC Flange bushing, ¾” Part No. Description Qty/Unit Qty/Head 7816.JRC Grease fitting 8288.JRC Castle Nut, ½-20 3047.JRC SAE Flatwasher, 5/8” 7846.JRC Cotter Pin, 1/8 x ¾” 7904R.JRC Casting, Right 7904L.JRC Casting, Left 7908.JRC...
Page 10: Tools Required
Allen Wrench: 5/32” • Grease gun • • 2.4 Power Unit Requirements The Hooker Soft-Plug Aerator is designed to be attached to the JRCO hitch for mounting on zero turn mowers, UTVs and lawn tractors. Unpacking Your Attachment CAUTION Sharp edges Heavy Your Hooker Aerator will ship in 2 boxes.
Page 11: Stabilizer Frame To Tow Tongues Assembly
MODEL 753 Operator’s Manual Refer to Figure 1-1 2.8 Stabilizer Frame to Tow Tongues Assembly 1. Align holes in stabilizer frame, tow tongue and aerator frame. 2. Secure with four 3/8-16 x 2 ½” hex bolts and two- way locknuts.
Page 12: Caster Bar To Top Pivot Assembly
MODEL 753 Operator’s Manual Refer to Figure 1-4 2.11 Caster Bar to Top Pivot Assembly 1. Center the caster bar over aerator frame and pivot arms. Use two 3/8-16 x 2 ¾” square u-bolts and 3/8- 16 two-way locknuts to install caster bar.
Page 13: Mount Hitch To Tow Vehicle
MODEL 753 Operator’s Manual NOTE: Park mower/UTV close to clevis area. 2.14 Mount Hitch to Tow Vehicle 1. Position hitch so clevis pin slots are approximately 11 ½” from ground and slots are vertical. 2. Drill holes in hitch and attach hitch to vehicle framework or drawbar using 5/16”...
Page 14: Operation Instructions
MODEL 753 Operator’s Manual 3 Operation Instructions 3.1 Before Operation Safety, hazard and accident prevention is essential. You must use awareness, concern, and proper training when operating and utilizing this attachment. You must NOT use this attachment without reading and understanding the Operator’s Manual. Make sure the operator has completed and understands the contents of this manual before operation.
Page 15: Operation
MODEL 753 Operator’s Manual Now you should have read your Operator’s Manual and properly attached your Hooker Aerator. 3.3 Operation Using the Hooker Aerator is simple, but there are things you need to consider before use. If you are using the attachment in an area that has large stumps, rocks, debris, exposed electrical or gas lines or foreign material that could cause damage to the attachment should be marked.
Page 16: Attachment Instructions
MODEL 753 Operator’s Manual 4 Attachment Instructions 1. Use the Hooker Aerator for its intended purposes only. Never use it to carry, push, pull or drag any object other than its intended purpose. 2. Misuse can lead to damage of the attachment.
Page 17: Transporting Instructions
MODEL 753 Operator’s Manual 2. When finished cleaning dirt and debris, wash the surfaces thoroughly with a garden hose. 3. Repaint parts where paint is worn or chipped to prevent rust from forming. A coting of oil may also be applied to minimize oxidation.
Page 18: Maintenance Instructions
The parts on your JRCO Hooker Aerator have been designed specifically for your attachment and should be replaced with genuine parts from your local JRCO Dealer. Do not alter the equipment in any way. Clean, inspect, service and repair any necessary parts that are 10.2 Daily Maintenance...
Page 19: Specifications
MODEL 753 Operator’s Manual 11 Specifications Model 753 Hooker Soft-Plug Aerator Approximate Shipping Weight 198 lbs. Aeration Width 38” Aeration Pattern 5” x 6” Hole Size ½” wide x 1.25” long, up to 3” dep Tines 3/8” wide x 3” long hardened high carbon...
Page 20: Warranty
MODEL 753 Operator’s Manual 12 Warranty 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800.966.8442...
