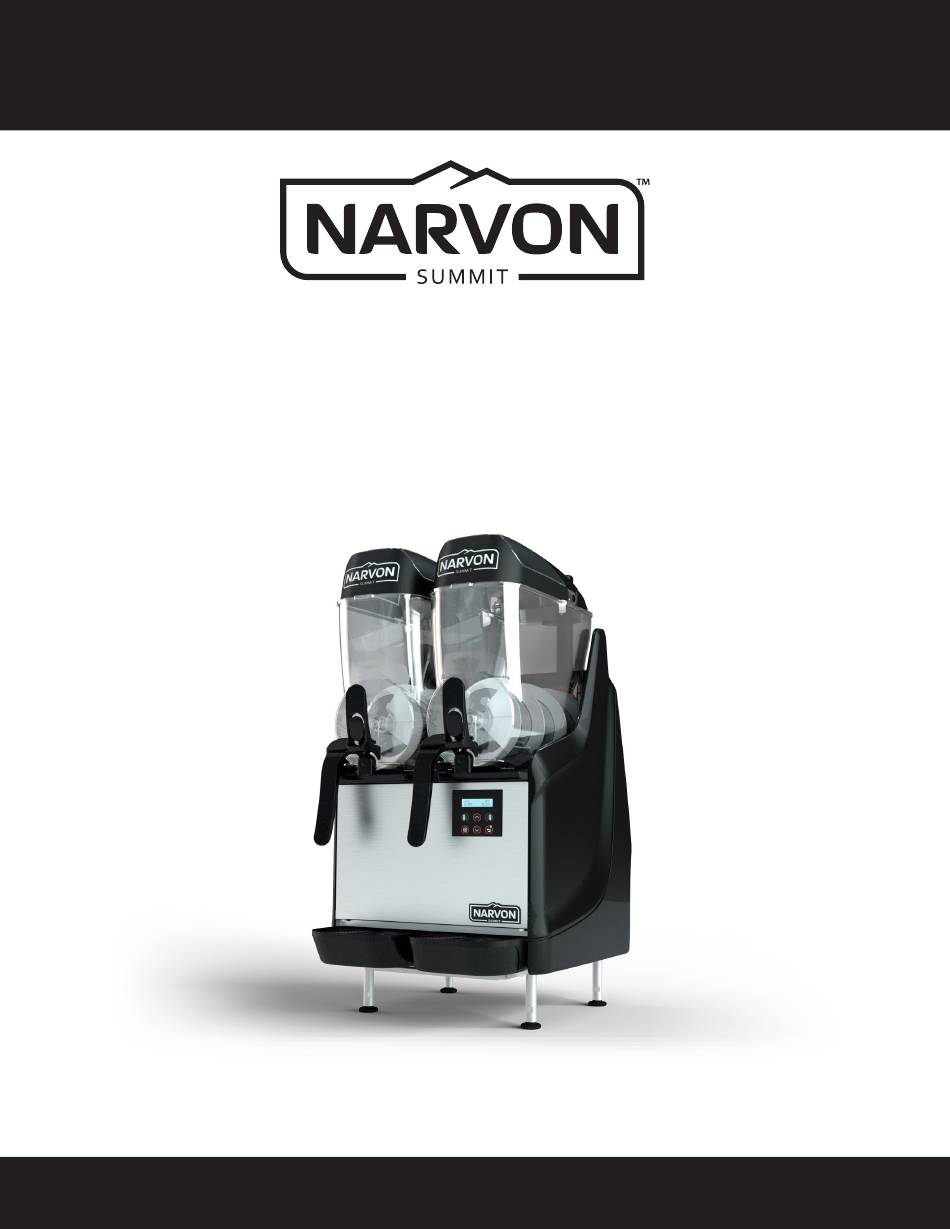

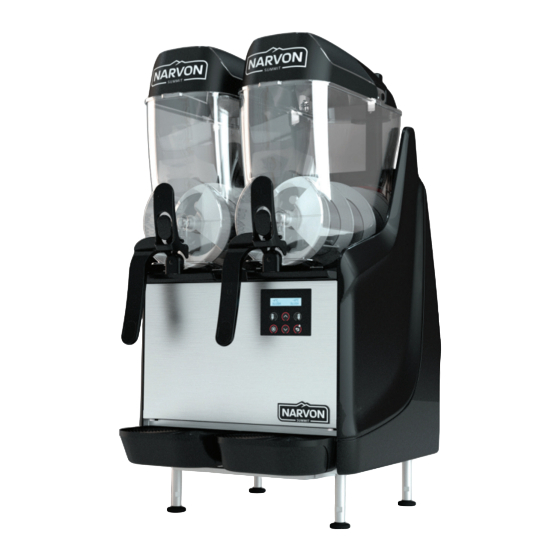

- Page 1 USER MANUAL 3.2 GALLON BOWL FROZEN BEVERAGE DISPENSERS #378NSSM2 #378NSSM3 Double Bowl Triple Bowl READ THOROUGHLY BEFORE OPERATION • UPDATED 04/2023 NARVON SUMMIT...
-
Page 2: Table Of Contents
• Be handled with damp or wet hands • Be rolled in a ball when operating • Be altered. If the supply cord is damaged, it must be replaced by the manufacturer or similarly qualified persons in order to avoid a hazard 5GM2 5GM3 NARVON SUMMIT... -
Page 3: Features
Only wash using warm water and a suitable sanitizing agent (in compliance with current standards in the country of use) that do not cause damage to the components. FEATURES DEPOSITY CAPACITY 378NSSM2 378NSSM3 3.2 Gallons of Slush Bowls WHAT CAN YOU PREPARE? 6.4 Gallons... -
Page 4: Parts Diagram
PARTS DIAGRAM Folding Lid Bowl Push & Pull Tap Display Drip Rack Drip Tray Feet Main Switch ACCESSORIES Food Safe Lubricant Nylon Brush NARVON SUMMIT... -
Page 5: Control Panel
Recommended when you want to empty the deposit but the product is still slush. DEFROST Recommended to melt ice crystals and get a homogeneous product. (During Defrost, Slush and Stand By mode of any tank is deactivated) STOP All functions deactivated. NARVON SUMMIT... -
Page 6: Installation
4. The machine must be placed securely on a solid, flat, and stable surface. 5. The machine must be placed in an area that has easy access to a power source. NARVON SUMMIT... -
Page 7: Operation
Cold Drink: Press OPERATING MODE BUTTON Until the display shows: STANDBY (Fig. 6) During Preparation We Can See: Product Temperature Product Temperature (Left Bowl) (Right Bowl) Fig. 5 Operating Mode Operating Mode (Left Bowl) (Right Bowl) Fig. 6 NARVON SUMMIT... - Page 8 MODE Until the display shows: STANDBY (Fig. 11) During the periods when the establishment is closed, it is possible to use the machine in standby mode. Doing this will allow you to save a considerable amount of electrical energy. Fig. 11 NARVON SUMMIT...
-
Page 9: Settings
The bowl selected flashes. consistency. Consistency Values (values range from 1-18): Recommended Value 11 12 13 14 15 16 17 18 Liquid Thicker Consistency Consistency Hardness also depends on the product used and the proportion of sugar and total dissolved solids. NARVON SUMMIT... - Page 10 Italian, English, Spanish, French, or German TEMPERATURE SCALE (°C/F) Increase/Decrease Save and Exit RESTORE DEFAULT SETTINGS Allows you to reset all the parameters in the user's menu. Confirm Exit LCD BACKLIGHT Allows you to see backlight intensity. Increase/Decrease Save and Exit Intensity NARVON SUMMIT...
- Page 11 Pressing you can set the time that the machine automatically changes to Standby and Slush mode: Change Value Increase/Decrease Save Selection Value and Exit NOTE: The auto standby function only works when in slush mode. NARVON SUMMIT...
-
Page 12: Cleaning
The machine must be turned OFF and unplugged from the power source before cleaning. Clean the lid and evaporators with a mild Thoroughly wash all other components using Place the components on a clean surface detergent and a soft cloth or sponge. Rinse the three sink method. to dry. with water. NARVON SUMMIT... - Page 13 Slide the bowl back onto the unit and gently Assemble the tap: Place the tap back on the seal wall. push down until it hooks into place. hooks and click into place. Rinse: Assemble lid. Fill bowl with water. Mix mode for 5 minutes. Empty bowl. NARVON SUMMIT...
-
Page 14: Maintenance
Disconnected probe or malfunction, left bowl sensor. LEFT PROBE ERROR Disconnected probe or malfunction, right bowl sensor. RIGHT PROBE ERROR Disconnected probe or malfunction, condenser sensor. COND . PROBE ERROR Go to light menu and switch on the lights. LIGHT ERROR NARVON SUMMIT... -
Page 15: Programming
The MAINTENANCE menu is to be accessed only by qualified service technicians and is password protected. See the following pages for programming options for these individual menu items (Page 16-19). Available Settings: NARVON SUMMIT... - Page 16 INSTALLATION The INSTALL menu is used to set up the unit during installation. IMPORTANT: The AUTO FUNCTIONS feature cannot be active when performing the INSTALL procedure. 1. Press and hold. 2. Press and release. 3. Press. 4. Press. NARVON SUMMIT...
- Page 17 Scrolls through language selections Saves changes and exits (press twice to exit user menu) 2. Press and release. 3. Press. PREVENTIVE MAINTENANCES (RESET) 1. Press and hold. 2. Press and release. 3. Press and release. 4. Press. 5. Press. (Record number) NARVON SUMMIT...
- Page 18 2. Press and release. 3. Press. RESTORE DEFAULT Resets the control panel to the factory default settings. 1. Press and hold. Restores control panel to factory defaults Exits to user menu with no changes 2. Press and release. 3. Press. NARVON SUMMIT...
- Page 19 BOWL LIGHTS Turns the bowl lights ON and OFF. The default setting is ON. Toggles between ON and OFF 1. Press and hold. Saves changes and exits (press twice to exit user menu) 2. Press and release. 3. Press. NARVON SUMMIT...
- Page 20 Select number being changed (number flashes) 3. Press. Increases/decreases number setting Save the changes and exit (Press twice to exit the user menu) 4. Press and release. 5. Press twice to exit. NARVON SUMMIT...
-
Page 21: Disposal
1. Press Increases/decreases number setting and hold. Saves changes and exits (press twice to exit user menu) 2. Press and release. 3. Press. 4. Press. DISPOSAL When the machine is no longer in use, dispose of it properly. NARVON SUMMIT... -
Page 22: Troubleshooting
* If the consistency of the product is not adequate, check the consistency adjustment in the Menu. Contact a specialist technician. * If the light does not come on, see the section on light alarms, on Page 19. NARVON SUMMIT...
