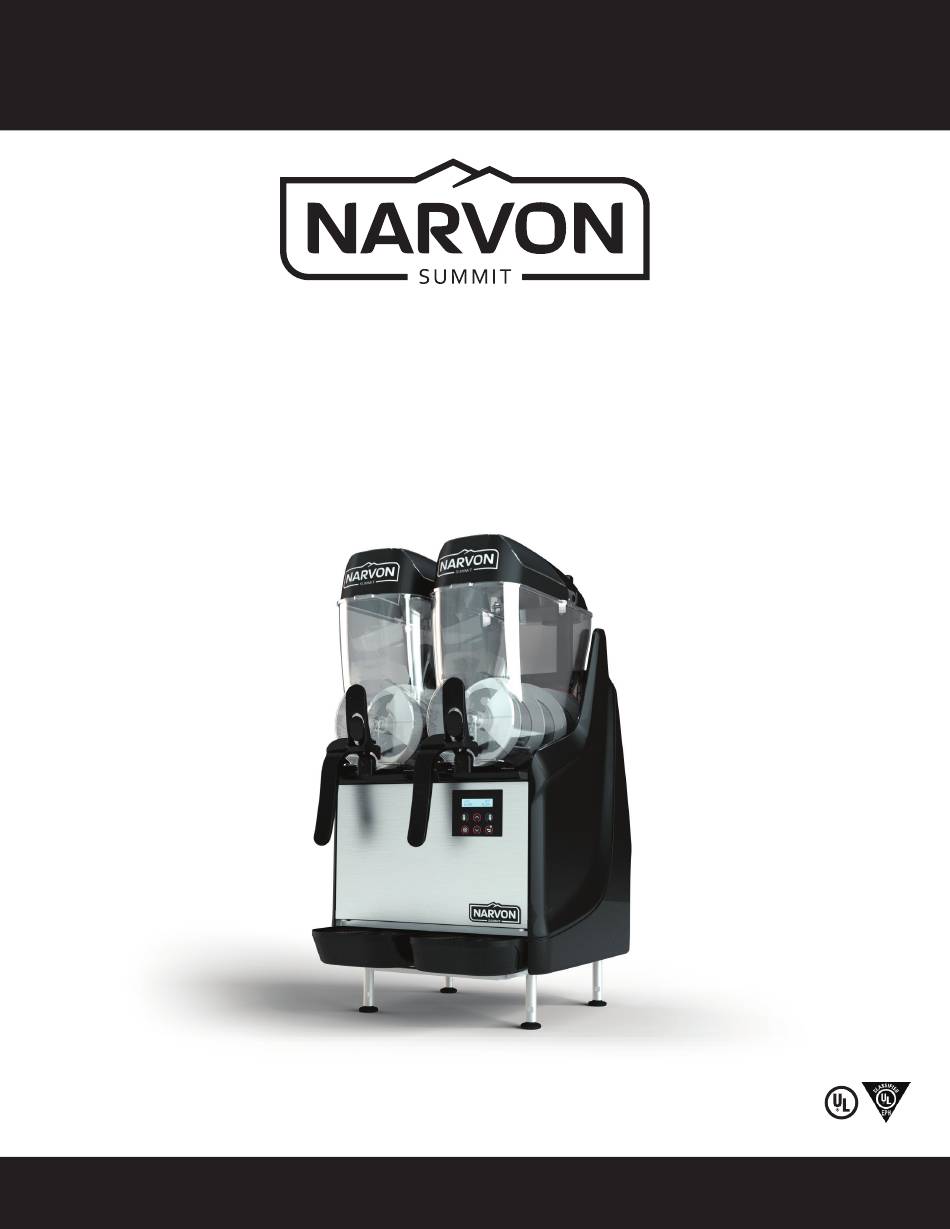

- Page 1 USER MANUAL 3.2 GALLON BOWL FROZEN BEVERAGE DISPENSERS #378NSSM2 #378NSSM3 Double Bowl Triple Bowl READ THOROUGHLY BEFORE OPERATION • UPDATED 09/2021 NARVON SUMMIT...
-
Page 2: Table Of Contents
• Be handled with damp or wet hands • Be rolled in a ball when operating • Be altered. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard NARVON SUMMIT... -
Page 3: Features
Only wash using warm water and a suitable sanitising agent (in compliance with current standards in the country of use) that do not cause damage to the components. FEATURES DEPOSITY CAPACITY 378NSSM2 378NSSM3 3.2 Gallons of Slush Bowls WHAT CAN YOU PREPARE? Capacity 6.4 Gallons... -
Page 4: Parts Diagram

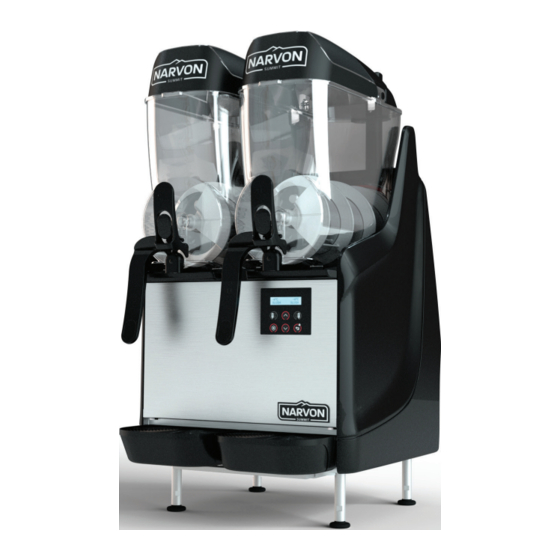

PARTS DIAGRAM Folding Lid Bowl Push & Pull Tap Display Drip Rack Drip Tray Feet Main Switch ACCESSORIES Food Safe Lubricant Nylon Brush NARVON SUMMIT... -
Page 5: Control Panel
Recommendable when you want to empty the deposit but the product is still slush. DEFROST Recommendable to melt ice crystals and get a homogeneous product. (During Defrost, Slush and Stand By mode of any tank is deactivated) STOP All functions deactivated. NARVON SUMMIT... -
Page 6: Installation
4. It must be placed horizontally on a solid, flat and stable surface. 5. Easy access to the plug. 6. That the laws and current technical standards are complied with when carrying out the installation. NARVON SUMMIT... -
Page 7: Operation
Cold Drink: Press OPERATING MODE Until the display shows: STANDBY (Fig. 6) Fig. 4 Fig. 5 Fig. 6 During Preparation We Can See: Product Temperature Product Temperature (Left Bowl) (Right Bowl) Operating Mode Operating Mode (Left Bowl) (Right Bowl) NARVON SUMMIT... - Page 8 In this way, you will save a considerable amount of electrical energy as the compressor only operates during the strictly required time to maintain the right Fig. 11 temperature for the product(max. 3ºC) (max. 37.4 ºF). NARVON SUMMIT...
-
Page 9: Settings
The bowl selected flashes. consistency. Consistency Values (values range from 1-18): Recommended Value 11 12 13 14 15 16 17 18 Liquid Thicker Consistency Consistency Hardness also depends on the product used and the proportion of sugar and total dissolved solids. NARVON SUMMIT... - Page 10 Italian, English, Español, French, or German TEMPERATURE SCALE (°C/F) Increase/Decrease Save and Exit RESTORE DEFAULT SETTINGS Allows you to reset all the parameters in the user's menu. Confirm Exit LCD BACKLIGHT Allows you to backlight intensity. Increase/Decrease Save and Exit Intensity NARVON SUMMIT...
- Page 11 Pressing you can set the time that the machine automatically changes to Standby and Slush mode: Change Value Increase/Decrease Save Selection Value and Exit NOTE: The auto standby function only works when in slush mode. NARVON SUMMIT...
-
Page 12: Cleaning
Lift the front part until it unhooks (1). Remove lid Press (1) Push the rear part to remove the deposit (2). and pull upwards (2) Extract rear seal and mixer. Extract the gasket only in case of using dairy products. NARVON SUMMIT... - Page 13 ? • 'ƒ¤¢¶ ‹ƒ•“ ¶“ • ¶†› ¢⁄ƒ “ §…–‚ ¥“ ¶ ¢¶ £› ƒ¥ “ •• – ⁄› ƒ¢flM Rinse: Assemble lid. Assemble the tap: Support the bolts on their Fill bowl housings and press the push cam until it with water. clicks into the tap. Mix mode for 5 minutes. Empty bowl. NARVON SUMMIT...
-
Page 14: Maintenance
Disconnected probe or malfunction, left bowl sensor. RIGHT PROBE ERROR Disconnected probe or malfunction, right bowl sensor. COND . PROBE ERROR Disconnected probe or malfunction, condenser sensor. LIGHT ERROR Go to light menu and switch on the lights. NARVON SUMMIT... -
Page 15: Programming
The MAINTENANCE menu is to be accessed only by qualified service technicians and is password protected. See the following pages for programming options for these individual menu items (Page 16-19). Available Settings: NARVON SUMMIT... - Page 16 INSTALLATION The INSTALL menu is used to set up the unit during installation. IMPORTANT: The AUTO FUNCTIONS feature cannot be active when performing the INSTALL procedure. 1. Press and hold. 2. Press and release. 3. Press. 4. Press. NARVON SUMMIT...
- Page 17 Saves changes and exits (press twice to exit user menu) 2. Press and release. 3. Press. PREVENTIVE MAINTENANCES (RESET) 1. Press and hold. 2. Press and release. 3. Press and release. 4. Press. 5. Press. (Record number) NARVON SUMMIT...
- Page 18 2. Press and release. 3. Press. RESTORE DEFAULT Resets the control panel to the factory default settings. 1. Press and hold. Restores control panel to factory defaults Exits to user menu with no changes 2. Press and release. 3. Press. NARVON SUMMIT...
- Page 19 BOWL LIGHTS Turns the bowl lights ON and OFF. The default setting is ON. Toggles between ON and OFF 1. Press and hold. Saves changes and exits (press twice to exit user menu) 2. Press and release. 3. Press. NARVON SUMMIT...
- Page 20 Select number being changed (number flashes) 3. Press. Increases/decreases number setting Save the changes and exit (Press twice to exit the user menu) 4. Press and release. 5. Press twice to exit. NARVON SUMMIT...
-
Page 21: Disposal
DISPOSAL The crossed out symbol on the bin appears on all the products to remind us about the selective collection obligation. Correctly observing all the regulations regarding the disposal of old products will contribute to protecting the environment. NARVON SUMMIT... -
Page 22: Troubleshooting
* If the consistency of the product is not adequate, check the consistency adjustment in the Menu. Contact a specialist technician. * If the light does not come on, see the section on light alarms, on Page 19. NARVON SUMMIT...
