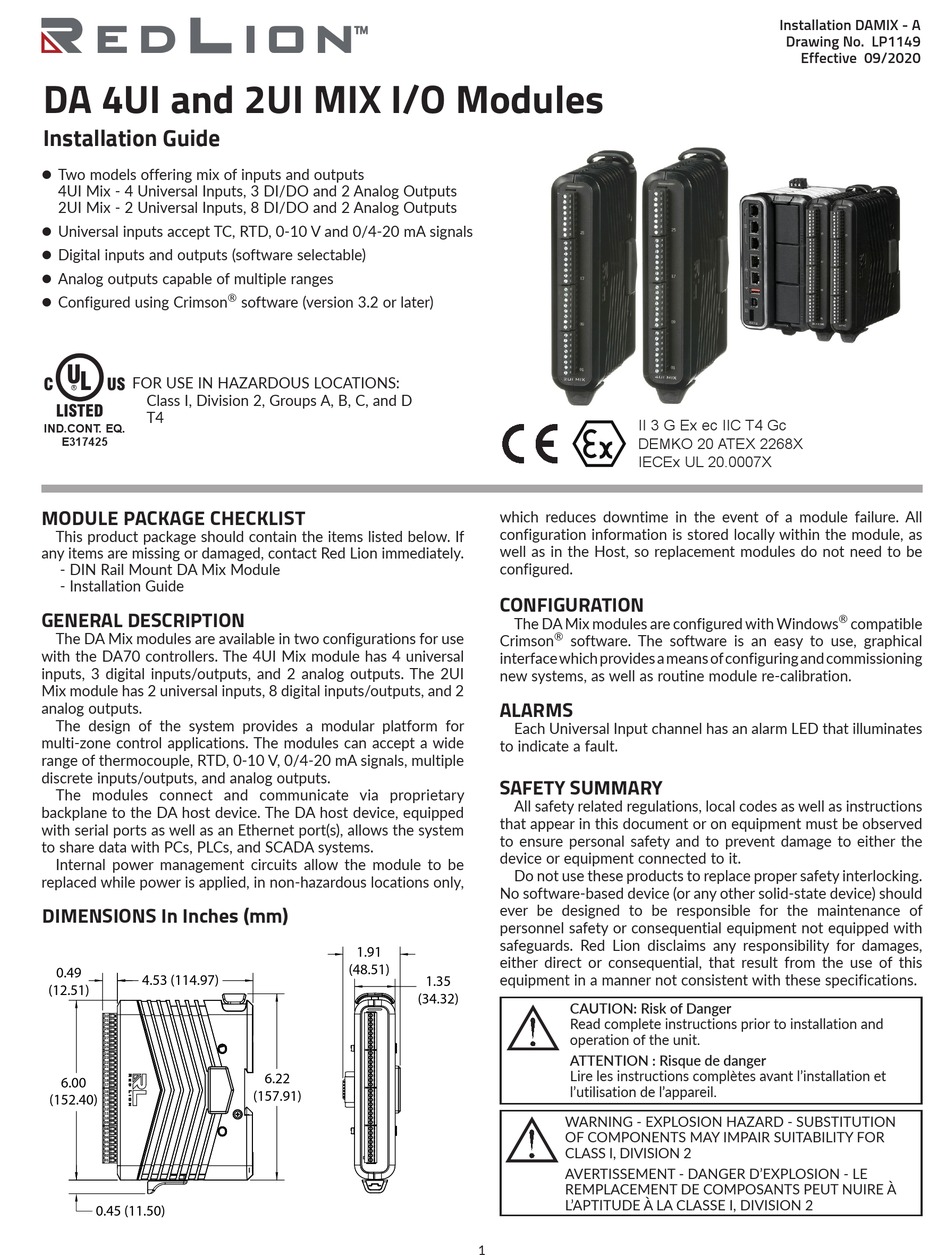

Redlion DA 4UI MIX Installation Manual

DA 4UI and 2UI MIX I/O Modules
Installation Guide
z Two models offering mix of inputs and outputs
4UI Mix - 4 Universal Inputs, 3 DI/DO and 2 Analog Outputs
2UI Mix - 2 Universal Inputs, 8 DI/DO and 2 Analog Outputs
z Universal inputs accept TC, RTD, 0-10 V and 0/4-20 mA signals
z Digital inputs and outputs (software selectable)
z Analog outputs capable of multiple ranges
z Configured using Crimson
U L
FOR USE IN HAZARDOUS LOCATIONS:
C C US US
R
Class I, Division 2, Groups A, B, C, and D
LISTED
T4
IND.CONT. EQ.
E317425

MODULE PACKAGE CHECKLIST

This product package should contain the items listed below. If
any items are missing or damaged, contact Red Lion immediately.
- DIN Rail Mount DA Mix Module
- Installation Guide

GENERAL DESCRIPTION

The DA Mix modules are available in two configurations for use
with the DA70 controllers. The 4UI Mix module has 4 universal
inputs, 3 digital inputs/outputs, and 2 analog outputs. The 2UI
Mix module has 2 universal inputs, 8 digital inputs/outputs, and 2
analog outputs.
The design of the system provides a modular platform for
multi-zone control applications. The modules can accept a wide
range of thermocouple, RTD, 0-10 V, 0/4-20 mA signals, multiple
discrete inputs/outputs, and analog outputs.
The modules connect and communicate via proprietary
backplane to the DA host device. The DA host device, equipped
with serial ports as well as an Ethernet port(s), allows the system
to share data with PCs, PLCs, and SCADA systems.
Internal power management circuits allow the module to be
replaced while power is applied, in non-hazardous locations only,
DIMENSIONS In Inches (mm)
0.49
4.53 (114.97)
(12.51)
32
31
30
29
28
27
26
25
24
23
22
21
20
19
6.00
18
17
16
(152.40)
15
14
13
12
11
10
09
08
07
06
05
04
03
02
01
0.45 (11.50)
®
software (version 3.2 or later)
1.91
(48.51)
6.22
(157.91)
which reduces downtime in the event of a module failure. All
configuration information is stored locally within the module, as
well as in the Host, so replacement modules do not need to be
configured.

CONFIGURATION

The DA Mix modules are configured with Windows
®
Crimson software. The software is an easy to use, graphical
interface which provides a means of configuring and commissioning
new systems, as well as routine module re-calibration.

ALARMS

Each Universal Input channel has an alarm LED that illuminates
to indicate a fault.

SAFETY SUMMARY

All safety related regulations, local codes as well as instructions
that appear in this document or on equipment must be observed
to ensure personal safety and to prevent damage to either the
device or equipment connected to it.
Do not use these products to replace proper safety interlocking.
No software-based device (or any other solid-state device) should
ever be designed to be responsible for the maintenance of
personnel safety or consequential equipment not equipped with
safeguards. Red Lion disclaims any responsibility for damages,
either direct or consequential, that result from the use of this
equipment in a manner not consistent with these specifications.
1.35
(34.32)
CAUTION: Risk of Danger
Read complete instructions prior to installation and
operation of the unit.
ATTENTION : Risque de danger
Lire les instructions complètes avant l'installation et
l'utilisation de l'appareil.
WARNING - EXPLOSION HAZARD - SUBSTITUTION
OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2
AVERTISSEMENT - DANGER D'EXPLOSION - LE
REMPLACEMENT DE COMPOSANTS PEUT NUIRE À
L'APTITUDE À LA CLASSE I, DIVISION 2
1
Installation DAMIX - A
Drawing No. LP1149
Effective 09/2020
II 3 G Ex ec IIC T4 Gc
DEMKO 20 ATEX 2268X
IECEx UL 20.0007X
®
compatible
