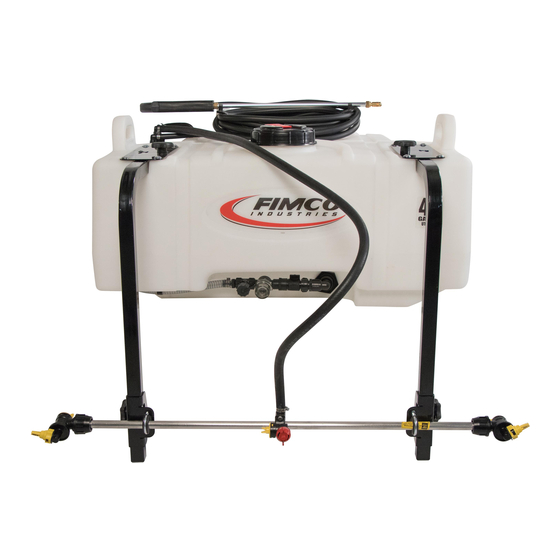

Fimco UTV-45-BL Owner's Manual

45 Gallon Lawn & Garden UTV Sprayer w/Boomless Boom)
(
Technical Specifications

45 Gal. Corrosion-Resistant Polyethylene Tank

Deluxe Pistol-Grip Handgun

25 Ft. Handgun Hose

28 Ft. max. vertical throw, 40 Ft. horizontal throw

30' Spray Coverage with Boom

Adjustable Boom Height

12 Volt, 4.5 GPM - 60 PSI Diaphragm Pump

Multi-Lid to accurately measure and pour chemicals
Caution: When fully filled with water, this sprayer will weigh
505 lbs.. Consult the owner's manual for your vehicle to verify
that you are within it's load carrying capacity.
Secure unit in your UTV, using tie-down straps
(NOT INCLUDED)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
UTV sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: UTV-45-BL (5302865)
Assembly Instructions
The sprayer is partially assembled at the factory. Follow the
assembly instructions on pages 2 and 3. and connect the
wiring to an existing 12 volt power source.
Read the operating instructions and then run the sprayer
using only water for testing. When everything tests all right,
add the desired chemical mixture and water combination and
start the spraying operation.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off valve located on your intake
line. You must make sure the valve is in the "open" position before
using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194845 (01/20)]
Page 1
