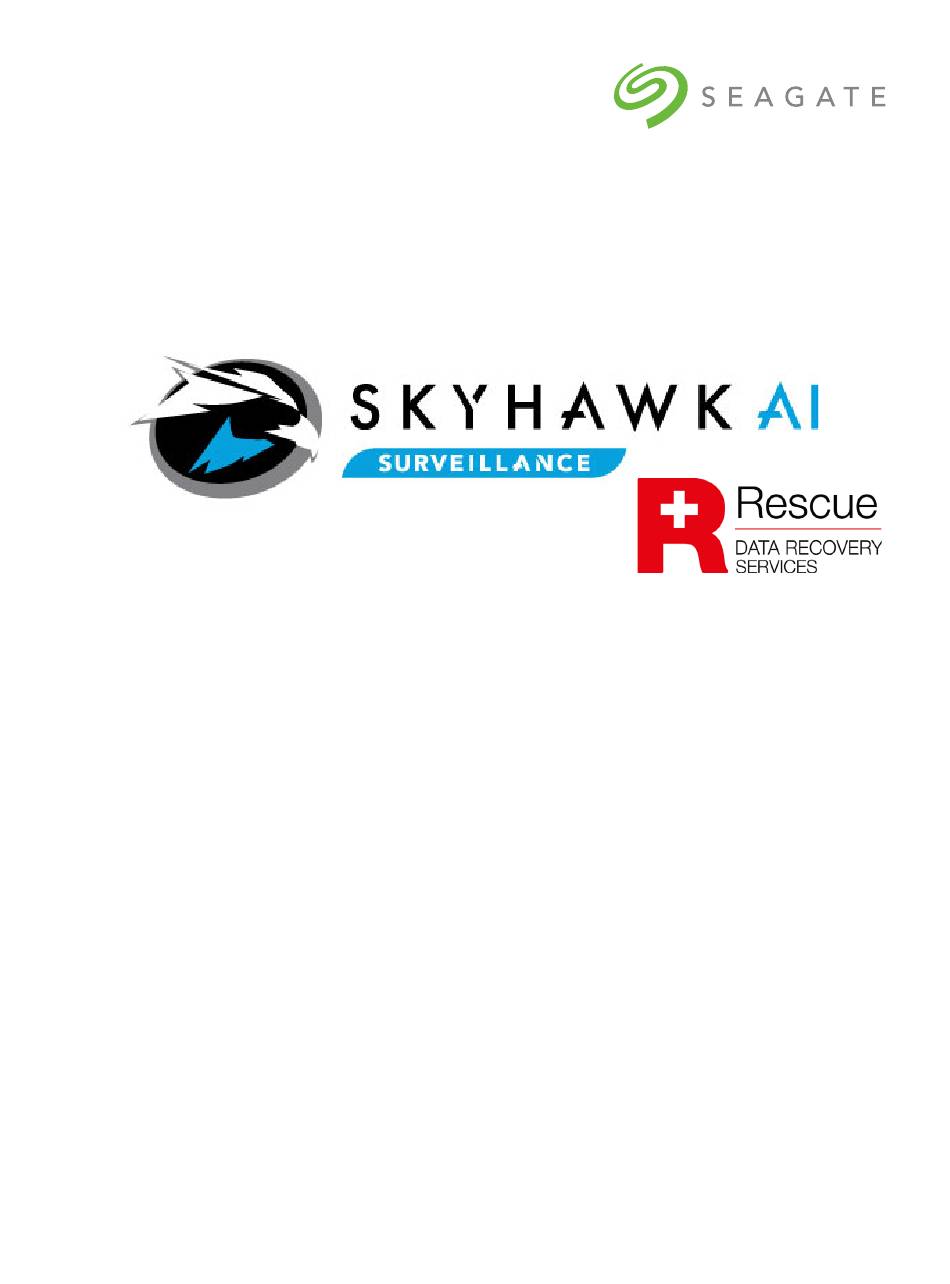

- Page 1 SATA Product Manual Standard 512E model ST8000VE001 200915700 Rev. B Gen 4 - March 2021...
- Page 2 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SkyHawk AI, PowerChoice and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a cer- tification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments.
-
Page 3: Table Of Contents
Seagate® Rescue™ Data Recovery Service ........ - Page 4 S.M.A.R.T. commands............. . 29 Seagate SkyHawk AI Serial ATA Product Manual, Rev. B...
-
Page 5: Seagate® Technology Support Services
For information regarding online support and services, visit: www.seagate.com/contacts/ For information regarding Warranty Support, visit: www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: www.seagate.com/services-software/recover/ For Seagate OEM and Distribution partner and Seagate reseller portal, visit: www.seagate.com/partners Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... -
Page 6: Introduction
Shadow Register Block. All Serial ATA devices behave like Device 0 devices. For additional information about how Serial ATA emulates parallel ATA, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. The specification can be downloaded from www.serialata.org. Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... -
Page 7: Drive Specifications
20°C (nonoperating) 5% to 95% (operating) Relative humidity 5% to 95% (nonoperating) Relative humidity gradient 20% per hour max –304.8 m to 3,048 m Altitude, operating (–1000 ft to 10,000+ ft) Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... -
Page 8: Formatted Capacity
When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above. Section 4.3.1, "Identify Device command" (words 60-61 and 100-103) for additional information about 48-bit addressing support of drives with capacities over 137GB. Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... -
Page 9: Recording And Interface Technology
0.003 During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Based on IDEMA 3 Stream workload Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... -
Page 10: Conducted Noise
• Using 5V power, the drive is expected to operate with a maximum of 100mV peak-to-peak square-wave injected noise at up to 10MHz. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. Note 2.5.3 Voltage tolerance Voltage tolerance (including noise): 5V ± 5% 12V ± 10% Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... -
Page 11: Extended Power Conditions - Powerchoice
• Saved enabled state, and timer value • Current enabled state, and timer value S.M.A.R.T. Read Data Reports • Attribute 192 - Emergency Retract Count • Attribute 193 - Load/Unload Cycle Count Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... - Page 12 Disable EPC Feature Set PowerChoice Supported Extended Power Condition Identifiers Power Condition Identifiers Power Condition Name Standby_z 01 - 80 Reserved Idle_a Idle_b Idle_c 84 - FE Reserved All EPC Power Conditions Seagate SkyHawk AI Serial ATA Product Manual, Rev. B...
-
Page 13: Environmental Limits
Non-operating –40° to 158°F (–40° to 70°C) package ambient with a maximum gradient of 36°F (20°C) per hour. This specification assumes that the drive is packaged in the shipping container designed by Seagate for use with drive. Temperature Check Point Figure 2. -
Page 14: Shock And Vibration
Linear Random Non-Operating Vibration The drive will not incur physical damage or have non-recoverable errors after being subjected to the power spectral density noise specified below. Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... -
Page 15: Acoustics
Test for Prominent Discrete Tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 16: Reliability
The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives. Seagate recommends that data centers be kept clean by monitoring and controlling the dust and gaseous contamination. Gaseous contamination should be within ANSI/ISA S71.04-2013 G2 classification levels (as measured on copper and silver coupons), and dust contamination to ISO 14644-1 Class 8 standards, and MTBF rated conditions as defined in the Annualized Failure Rate (AFR) and Mean Time Between Failure (MTBF) section. -
Page 17: Reference Documents
Seagate’s option and at no charge to the customer, if returned by customer at customer’s expense to Seagate’s designated facility in accordance with Seagate’s warranty procedure. -
Page 18: Seagate® Rescue™ Data Recovery Service
Data Recovery Service If you suffer a data loss event within the Seagate Rescue Data Recovery warranty period, and you are eligible to participate in and submit a case under the Rescue program, contact SRS at (1-800-723-1183) in the US, or if you are calling from outside the US please visit our... - Page 19 Seagate reserves the right to refuse service to or the return of any storage devices that have been determined to violate these regulations.
-
Page 20: Configuring And Mounting The Drive
For installations which require cables, users can connect the drive as illustrated in Figure Figure 3. Attaching SATA cabling Each cable is keyed to ensure correct orientation. SkyHawk AI Serial ATA drives support latching SATA connectors. Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... -
Page 21: Drive Mounting
C L OF DRIVE 2.000 .138±.015 1.028 MAX [26.10MM] Figure 4. Mounting configuration dimensions 8TB models (Option 1) Note The image is for mechanical dimension reference only and may not represent the actual drive. Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... - Page 22 Figure 5. Mounting configuration dimensions 8TB models (Option 2) Note The image is for mechanical dimension reference only and may not represent the actual drive. Seagate SkyHawk AI Serial ATA Product Manual, Rev. B...
-
Page 23: Serial Ata (Sata) Interface
For detailed information about the Serial ATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. Hot-Plug compatibility SkyHawk AI Serial ATA drives incorporate connectors which enable users to hot plug these drives in accordance with the Serial ATA Revision 3.2 specification. This specification can be downloaded from www.serialata.org. -
Page 24: Supported Ata Commands
Sanitize Device - Freeze Lock Ext / 0020 Sanitize Device - Status Ext / 0000 Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Security Set Password Security Unlock Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... - Page 25 Write DMA FUA Extended Write FPDMA Queued Write Log DMA Ext Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate SkyHawk AI Serial ATA Product Manual, Rev. B...
-
Page 26: Identify Device Command
Minimum multiword DMA transfer cycle time per word (120 ns) 0078 Recommended multiword DMA transfer cycle time per word (120 ns) 0078 Minimum PIO cycle time without IORDY flow control (120 ns) 0078 Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... - Page 27 NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support. 112–118 ATA-reserved 0000 Commands and feature sets supported 43DE Commands and feature sets supported or enabled 409C 121-127 ATA-reserved 0000 Security status 0021 129–159 Seagate-reserved xxxx 160–205 ATA-reserved 0000 Seagate SkyHawk AI Serial ATA Product Manual, Rev. B...
- Page 28 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate SkyHawk AI Serial ATA Product Manual, Rev. B...
-
Page 29: Set Features Command
Enable read look-ahead (read cache) feature (default). Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above. Note Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... -
Page 30: S.m.a.r.t. Commands
S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x 04 (abort) is written to the Error register. Seagate SkyHawk AI Serial ATA Product Manual, Rev. B... - Page 31 Seagate Technology LLC 47488 Kato Road, Fremont, California 94538, United States, 510-661-1000 AMERICAS Seagate Technology LLC Publication Number: 200915700, Rev. B March 2021...
