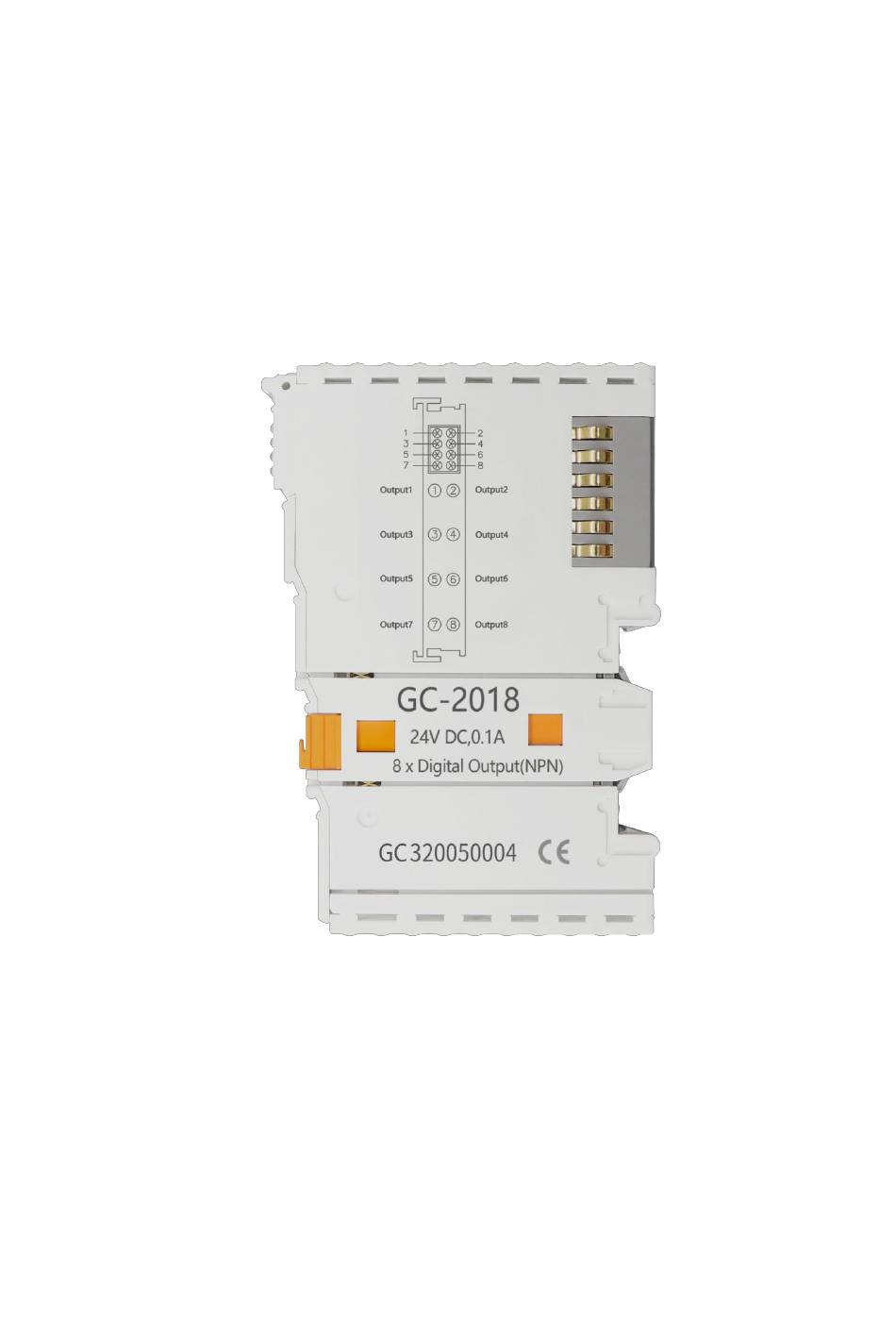

- Page 1 GC-2018 8-channel digital output module (NPN) User manual Document version 3.02（2020/10/27）...
- Page 2 Vhandy technology GC-2018 user manual Revision History Version Date Reason V1.00 2015/09/16 Create V2.01 2015/12/20 Modify device parameters V3.01 2017/10/22 Add parameters V3.02 2020/10/27 Modify device appearance picture...
-
Page 3: Table Of Contents
GC-2018 user manual Contents 1 Introduction......................... 4 1.1 Overview......................4 1.2 Properties ata glance..................4 1.3 Typicalapplication....................4 2 Installation........................5 2.1 Modulefixing....................5 2.2 Wiringmethod....................5 2.3 Systemstatusindicator..................7 2.4 Combined withGCAN-PLC-400series.............7 2.5 Combined with GCAN-8000series..............8 3 TechnicalSpecifications 4 Disclaimer 5 Sales and Service... -
Page 4: Introduction
GC-2018 user manual 1. Introduction 1.1 Overview The GC-2018 module has integrated 8 digital output channels, which acquires digital signals in real-time and transmits them to the GCAN-PLC coupler. This module can be used with any other GC Series IO module to capture and process digital data in industrial automation or distributed control systems. -
Page 5: Installation
GC-2018 user manual 2. Installation This chapter will describe the installation method, wiring method, meaning of the indicator and meaning of the interface of the GC-2018 module. 2.1 Module fixing The installation method of GC-2018 module as shown in Figure 2.1 and a flat-blade screwdriver is needed for auxiliary installation. - Page 6 Vhandy technology GC-2018 user manual Figure 2.2 Wiring method of GC-2018 module Figure 2.3 GC-2018 module terminal definition...
-
Page 7: Systemstatusindicator
For example: "DI0 AT%I0.0:BOOL;" "0.0"represents the position of the output point, and "0.0"~"0.7" respectively define the 1-8 output points in the first GC-2018 module. When the user uses more than one gc-2018 module, the second gc-2018 shall be defined from "1.0"... -
Page 8: Combined With Gcan-8000Series
For example,when GCAN-8000 module node number is1,the output state of channel 8 and channel 4 of the first GC-2018 module is logic "1", and the output state of other channels is logic "0", the CAN data frame ID sent by the GCAN-IO-8000 module is 0x181,the data length (DLC) is 8,and the frame data is 0x88,0x00,0x00,0x00,0x00, 0x00,0x00,0x00.Please note that when only one... -
Page 9: Technicalspecifications
Electrical isolation 120mA Current consumption Bit width output 1 byte in the process image Installation position In sequential order Power supply Powered by GCAN-PLC, current consumption 100mA Environmental testing -40℃~+85℃ Operating temperature Permissible relative 95%RH，no condensation humidity EN 55024:2011-09 EMC test... -
Page 10: Disclaimer
Vhandy technology GC-2018 user manual 4. Disclaimer Thank you for purchasing GCAN's GCAN series of hardware and software products. GCAN is a registered trademark of Shenyang Vhandy Technology Co., Ltd. This product and manual are copyrighted by Vhandy Technology. Without permission, it is not allowed to reproduce in any form. - Page 11 Vhandy technology GC-2018 user manual 5. Module selection table GCAN-PLC-400 series products consist of a programmable main control module, several GC series IO modules and a terminal resistance module. GC series IO modules currently include five categories: digital input, digital output, analog input, analog output, and communication extension.
- Page 12 Vhandy technology GC-2018 user manual GC-3844/3854/3 K type / S type / T type Thermocouple 4-channel thermocouple GC-4602 Voltage output, 16 bits -5V~+5V 2-channel GC-4622 Voltage output, 16 bits -10V~+10V 2-channel GC-4642 Current output, 16 bits 0-20mA 2-channel Analog GC-4652...
-
Page 13: Sales And Service
Vhandy technology GC-2018 user manual Sales and service Shenyang Vhandy Technology Co., Ltd. Address: Room 401, D11 Block, SISP., Hunnan District, Shenyang, Liaoning, China E-mail: sygckj@gmail.com Tel/ Whatsapp: +86 13644001762 Skype：live:sygckj WeChat : gckj777 Website: gcanbus.com...
