- Page 1 GC-2302 2-channel pulse output module User manual Document version V3.03 （2019/12/22）...
- Page 2 Guangcheng Technology GC-2302 user manual Revision History Version Date Reason V1.00 2015/09/16 Create V2.01 2015/12/20 Modify device parameters V3.01 2018/07/27 Add parameters V3.02 2019/11/13 Amend the new version parameters V3.03 2020/12/22 Modify product appearance...
-
Page 3: Table Of Contents
Guangcheng Technology GC-2302 user manual Contents 1. Introduction......................4 1.1 Overview......................4 1.2 Properties at a glance..................4 1.3 Typical application..................4 2. Installation........................5 2.1 Module fixing....................5 2.2 Wiring method....................5 2.3 System status indicator...................7 2.4 Method ofuse....................7 3. Technical Specifications..................11 4. Disclaimer......................12 5. -
Page 4: Introduction

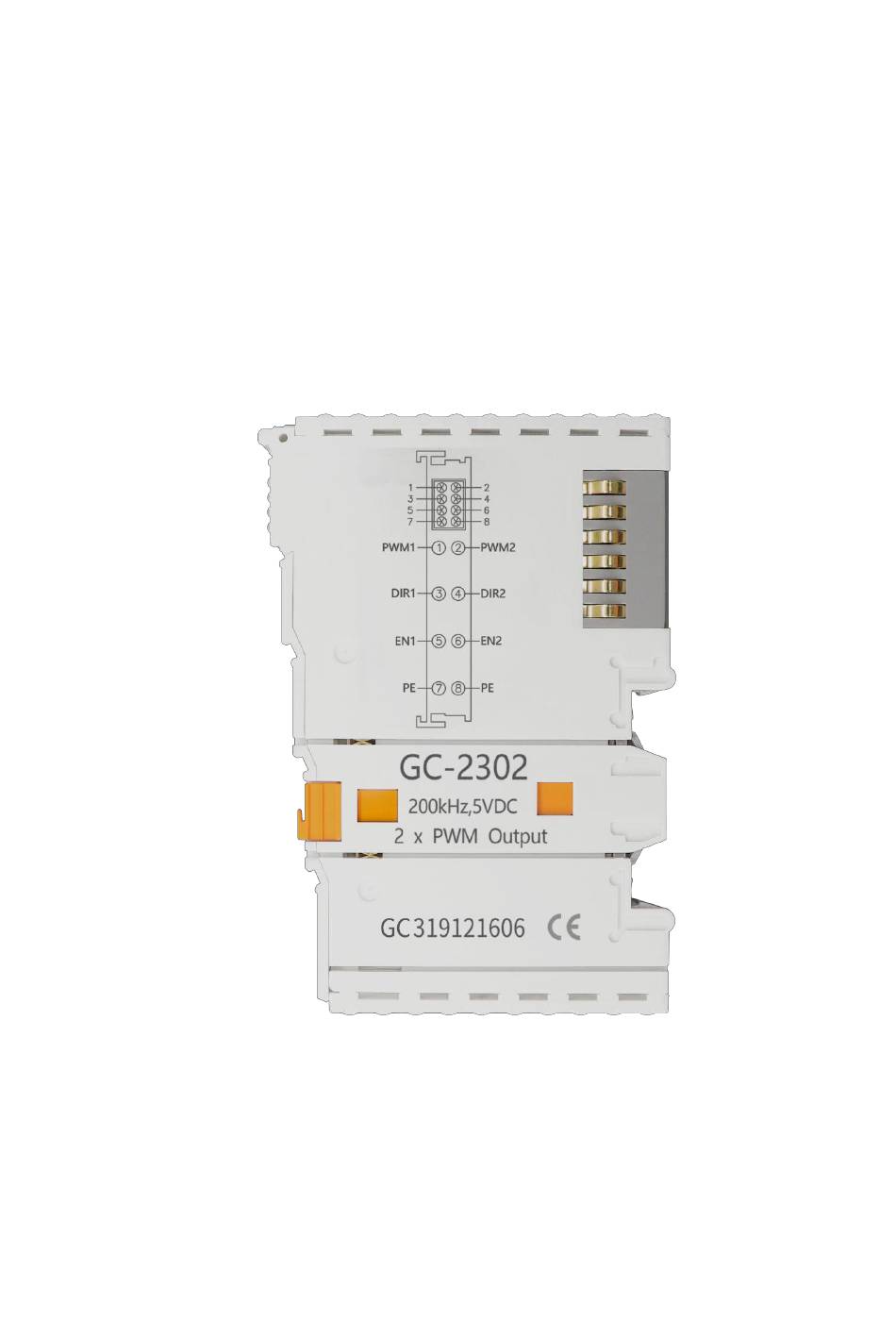

The GC-2302 module has integrated 2 pulse output channels, which can send PWM signals and receive control signal from the GCAN-PLC-400/510 or GCAN-IO-8000 coupler. This module can be used with any other GC Series IO module to capture and process digital data in industrial automation or distributed control systems. -
Page 5: Installation
GC-2302 user manual 2. Installation This chapter will describe the installation method, wiring method, meaning of the indicator and meaning of the interface of the GC-2302 module. 2.1 Module fixing The installation method of GC-2302 module as shown in Figure 2.1 and a flat-blade screwdriver is needed for auxiliary installation. - Page 6 Guangcheng Technology GC-2302 user manual Figure 2.2 Wiring method of GC-2302 module Figure 2.3 GC-2302 module terminal definition...
-
Page 7: System Status Indicator
Guangcheng Technology GC-2302 user manual GC-2302 contains 2 sets of pulse output, and the meaning of indicators are shown in table 2.1 Definition Module power indicator, the green light is always on to indicate that the power supply of the module is normal, if it is... - Page 8 EN_IN: Function block enable signal NETNUMBER: Which GC-2302 module from the PLC MOTOR_CH: The pulse output of the GC-2302, the value is 1 or 2 ENABLE: Enable signal of the motor The output pin definition of the function block:...
- Page 9 Guangcheng Technology GC-2302 user manual 2. The following describes the situation when the GC-2302 module is used for pure pulse output: The variable declaration area of the program is defined as follows: Pwm_Duty1 at%Q0.0:int; (*Define the duty cycle of the first pulse output, unit %*) Pwm_FQ1 at%Q2.0:dint;...
- Page 10 ：1000*0.1=100rad/min For example: GCAN-8000 is connected to a GC2302 module, CANopenID is 1, the speed of the first channel is 1000, and the speed of the second channel is 2000 Send PDO data: 0x201 E8 03 D0 07 00 00 00 00...
-
Page 11: Technical Specifications
Guangcheng Technology GC-2302 user manual 3. Technical Specifications Interface characteristics Number of inputs Pulse voltage 500 V（GC-bus/ Signal voltage） Electrical isolation Counter bit 32-bit Installation position In sequential order Powered by GCAN-PLC series, Power supply current consumption 50mA Environmental testing -40℃~+85℃... -
Page 12: Disclaimer
Guangcheng Technology GC-2302 user manual 4. Disclaimer Thank you for purchasing GCAN's GCAN series of hardware and software products. GCAN is a registered trademark of Shenyang Guangcheng Technology Co., Ltd. This product and manual are copyrighted by Guangcheng Technology. Without permission, it is not allowed to reproduce in any form. -
Page 13: Module Selection Table
Guangcheng Technology GC-2302 user manual 5. Module selection table GCAN-PLC-400 series products consist of a programmable main control module, several GC series IO modules and a terminal resistance module. GC series IO modules currently include five categories: digital input, digital output, analog input, analog output, and communication extension. - Page 14 Guangcheng Technology GC-2302 user manual GC-3844/3854/3 K type / S type / T type Thermocouple 4-channel thermocouple GC-4602 Voltage output, 16 bits -5V~+5V 2-channel GC-4622 Voltage output, 16 bits -10V~+10V 2-channel GC-4642 Current output, 16 bits 0-20mA 2-channel Analog GC-4652...
-
Page 15: Sales And Service
