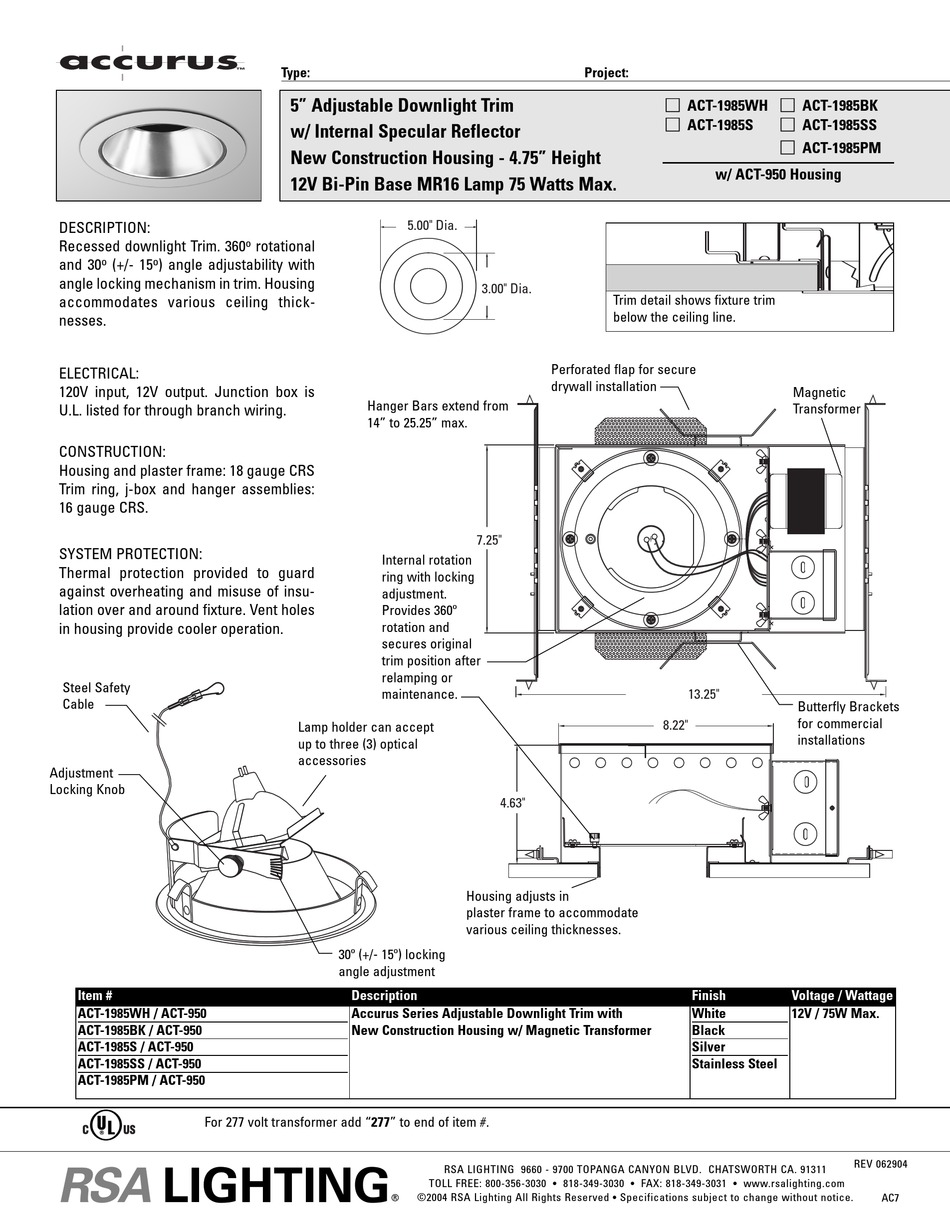

RSA Lighting Accurus ACT-1985BK Specification Sheet

DESCRIPTION:

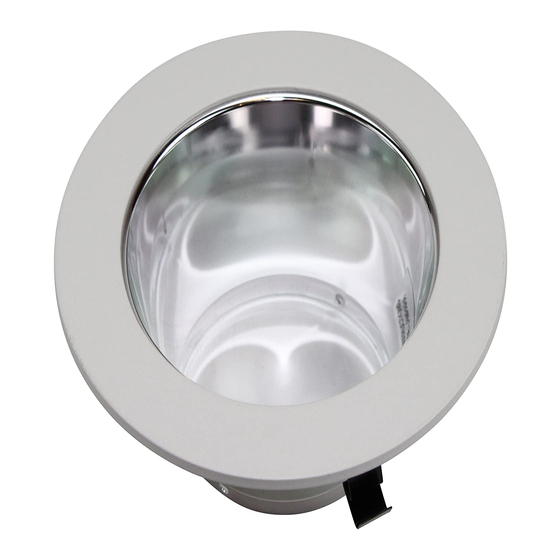

Recessed downlight Trim. 360
o o
and 30 (+/- 15 ) angle adjustability with
angle locking mechanism in trim. Housing
accommodates various ceiling thick-
nesses.

ELECTRICAL:

120V input, 12V output. Junction box is
U.L. listed for through branch wiring.

CONSTRUCTION:

Housing and plaster frame: 18 gauge CRS
Trim ring, j-box and hanger assemblies:
16 gauge CRS.

SYSTEM PROTECTION:

Thermal protection provided to guard
against overheating and misuse of insu-
lation over and around fixture. Vent holes
in housing provide cooler operation.
Steel Safety
Cable
Adjustment
Locking Knob
Item #
ACT-1985WH / ACT-950
ACT-1985BK / ACT-950
ACT-1985S / ACT-950
ACT-1985SS / ACT-950
ACT-1985PM / ACT-950
For 277 volt transformer add "277" to end of item #.
Suitable for Damp Location.
Type:
5" Adjustable Downlight Trim
w/ Internal Specular Reflector
New Construction Housing - 4.75" Height
12V Bi-Pin Base MR16 Lamp 75 Watts Max.
5.00" Dia.
o
rotational
Hanger Bars extend from
14" to 25.25" max.
Internal rotation
ring with locking
adjustment.
Provides 360º
rotation and
secures original
trim position after
relamping or
maintenance.
Lamp holder can accept
up to three (3) optical
accessories
30º (+/- 15º) locking
angle adjustment
Description
Accurus Series Adjustable Downlight Trim with
New Construction Housing w/ Magnetic Transformer
For 277 Volt Transformer, add '277' to the end of the catalog number.
©2004 RSA Lighting All Rights Reserved • Specifications subject to change without notice.
Project:
3.00" Dia.
Perforated flap for secure
drywall installation
7.25"
4.63"
Housing adjusts in
plaster frame to accommodate
various ceiling thicknesses.
RSA LIGHTING 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
ACT-1985WH
ACT-1985S
w/ ACT-950 Housing
Trim detail shows fixture trim
below the ceiling line.
Magnetic
Transformer
13.25"
8.22"
Finish Voltage / Wattage
White 12V / 75W Max.
Black
Silver
Stainless Steel
ACT-1985BK
ACT-1985SS
ACT-1985PM
Butterfly Brackets
for commercial
installations
REV 062904
AC7
