Dynamic Output
Both the CMCP420VT‐01 and CMCP420VT‐02 are supplied with a 100mV/g Dynamic
Output, available on the D+ and D‐ terminals. Vibration analyzers should be set to not
provide constant current power when used.
Calibration
The CMCP420VT/Ex is factory calibrated prior to shipment to meet the specifications
published in the datasheet. Calibration certificates are available upon request.
Maintenance
The CMCP420VT/Ex is non‐serviceable as all electronics are epoxy encapsulated. General
routine maintenance should be done as required to verify the sensor is firmly mounted
and all connections to the sensor are secure. The cover of the housing must remain closed
during normal operation. A set screw is provided to secure the cover to prevent
unauthorized access.

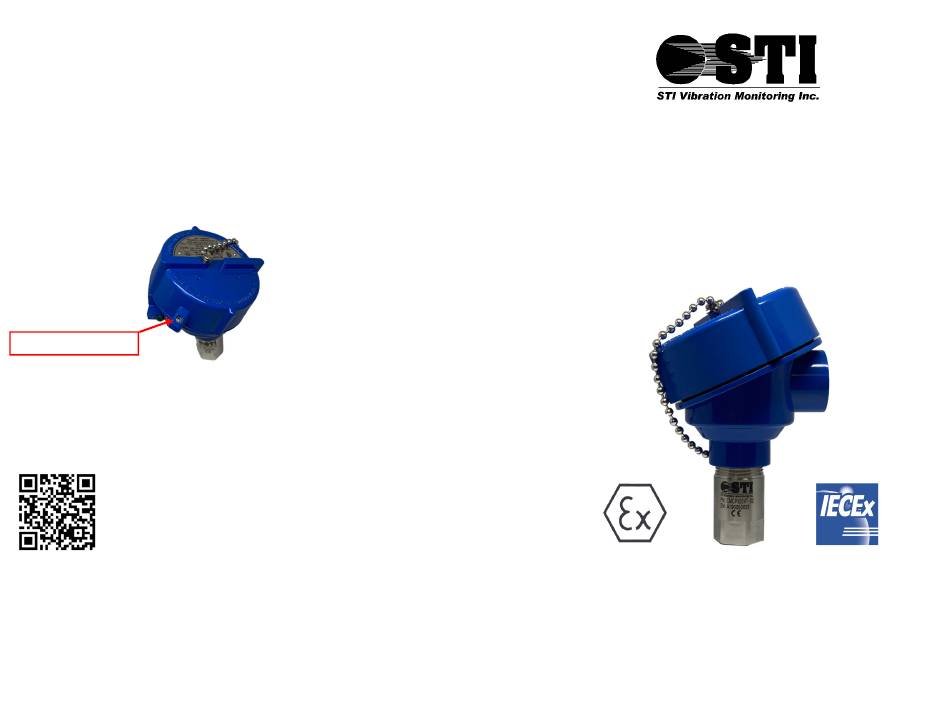

Tighten to Secure Cover
**Installation Note**
The equipment is not covered by the ATEX and IECEx certificates if the sensor is not
correctly installed in the flameproof enclosure provided with the sensor.
Downloaded CMCP420VT/Ex Certificates
https://www.stiweb.com/v/vspfiles/certificates/CMCP420/Ex

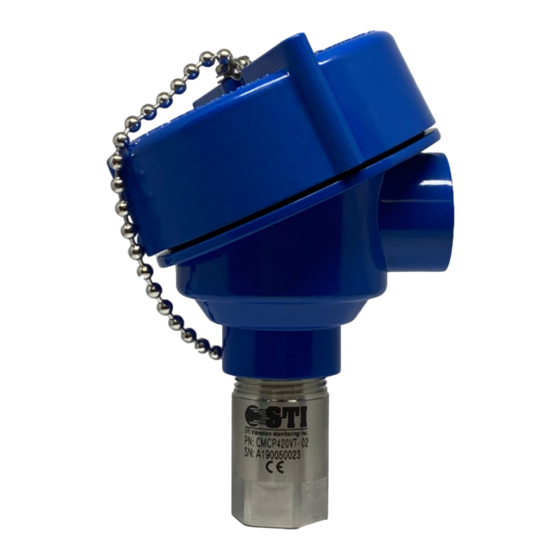

CMCP420VT/Ex Series
ATEX/IECEx Approved
4‐20mA Vibration Sensors
User's Guide
Release: January 2020
Manufactured By
STI Vibration Monitoring Inc.
1010 East Main Street
League City, Texas 77573 USA
Toll Free: 888.777.7213
Direct: +1 281 334 0766
www.stiweb.com
