STI -34401 Installation And Operation Manual

MAGNETIC SENSOR CABLE
(18 INCHES)
APPROXIMATE GAP (1 INCH)
GAP MAY BE EFFECTED
IF MOUNTED ON METAL.
Thank you for purchasing the STI Universal Sensor. Your satisfaction is very important to us. Please take
the time to read this manual carefully to get the most from your new product.

How The Product Works

The STI Universal Sensor is a wireless transmitter that can be configured to initiate a transmission to any
STI Receiver three different ways: internal magnetic sensor, internal tilt sensor or external switch.

Plan Your Installation

1) Refer to the Operation section on the following pages to determine which sensor configuration is
best for your application.
2) Refer to the Sensor Supervision section to understand the use of this feature. It is recommended
to leave the sensor in the supervised state (J3 uncut) until false trouble signals are displayed on the
receiver. If you need to disable sensor supervision, the sensor must be deleted from the receiver
and reprogrammed into the receiver. Refer to your receiver's installation instructions.

Universal Sensor Setup

1. Open sensor case using a flat head screwdriver in side case slot.
2. Configure the jumpers for the desired application (see Jumper Configurations Fig. 1).
3. Activate battery by removing the red tape.
4. Program the STI Universal Sensor into the STI receiver. Refer to the STI receiver installation
instructions for programming instructions.
5. Snap base into lid. Tamper switch spring automatically seats within the locator ring on the lid. Tamper
alert is triggered when the spring releases identifying when case is opened/broken/ajar.
6. Test the sensor for proper operation before permanently mounting.
7. Select mounting option.
OPTION 1: Mount with double sided foam tape provided to the back of the case (Fig. 2).
OPTION 2: Remove the circuit board from the case bottom. Drill 1/8 inch holes through the case
and use the screws (provided). For added protection, cover metal screw heads on the inside of
the case bottom with electrical tape (Fig. 2) to isolate the circuit board. Replace the circuit board
in the case bottom.

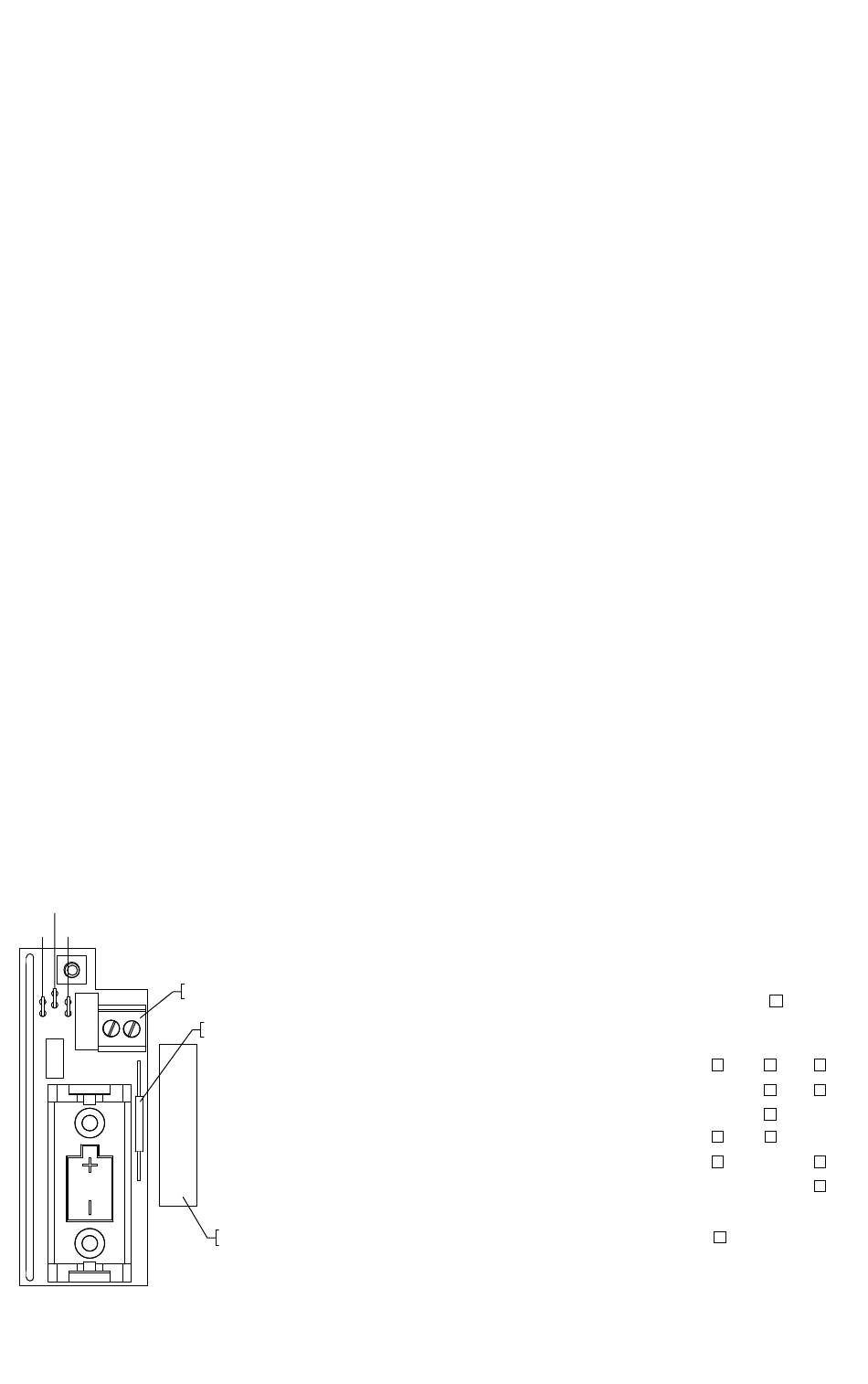

Jumper Configurations
J3
J2
J1
Fig. 1
Installation and Operation Manual
STI Universal Sensor
Model:
EXTERNAL SWITCH
CONNECTION BLOCK
ONBOARD
MAGNETIC SENSOR
MAGNET LOCATION
FOR MAGNETIC SENSOR
STI-34401
"ALERT"
OPENED
Cut jumpers with "X", do not cut jumpers with " ".
*Magnetic Sensor (supervised)
Tilt Sensor (supervised)
External Terminals (supervised) N.O.
External Terminals (supervised) N.C.
Magnetic Sensor (not supervised)
Tilt Sensor (not supervised)
External Terminals (not supervised) N.O.
External Terminals (not supervised) N.C.
NOTE: After cutting jumpers, tape each of the cut ends with
electrical tape to prevent wires from shorting.
*Factory Setting
— 1 —
