Summary of Contents for Asus VY279HGE Series

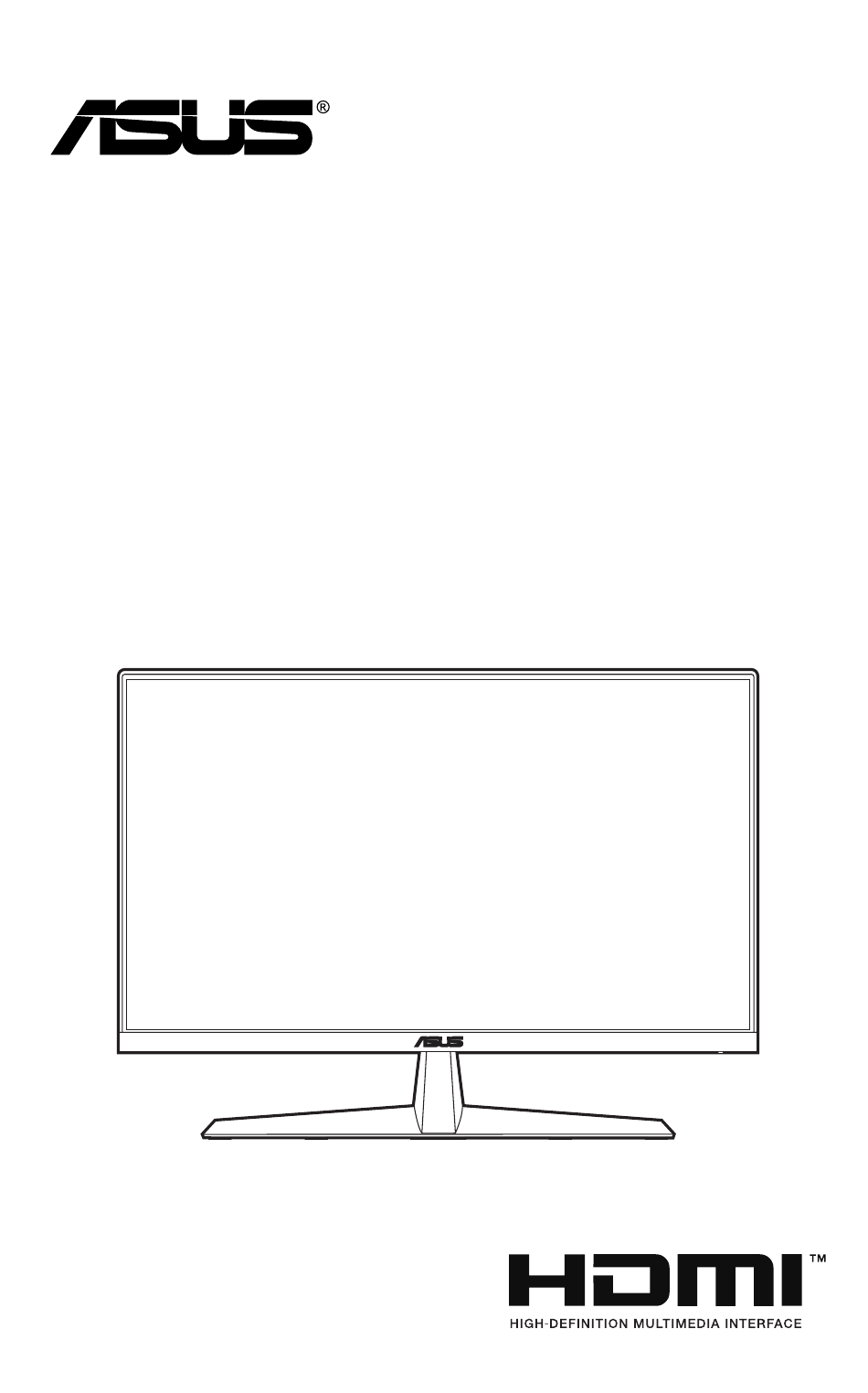

- Page 1 VY279HGE Series LCD Monitor User Guide...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Contents Notices ......................iv TCO certified ....................vi Safety information ..................vii Care & Cleaning ..................viii Takeback Services ..................ix Product information for EU energy label ..........ix Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 1.3.1 Front view ............... -
Page 4: Notices
All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity. - Page 5 NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating system. This product implements power management functionality. In case of no signal input after 10 seconds, the product automatically goes to sleep/ standby mode. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
-
Page 6: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 7: Care & Cleaning
AEEE yönetmeliğine uygundur Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. -
Page 8: Takeback Services
About Flicker https://www.asus.com/Microsite/display/eye_care_technology/ Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. -
Page 9: Welcome
Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Front View
Monitor introduction 1.3.1 Front view Brightness Exit Power Energy Saving Brightness Exit Power Energy Saving Power indicator • The color definition of the power indicator is as the below table. Status Description White Amber Standby mode Central button: • Press this button to turn the monitor on during standby mode. •... -
Page 11: Back View
AC-IN port. This port connects the power cord. HDMI port. This port is for connection with an HDMI compatible device. Earphone jack. This port is only available when an HDMI/DisplayPort cable is connected. Kensington lock slot. ASUS LCD Monitor VY279HGE Series... - Page 12 Chapter 1: Product introduction...
-
Page 13: Assembling The Monitor Arm/Base
Fix the base to the arm by fastening the bundled screw. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Base screw size: M6 x 12 mm. Hinge screw size: M4 x 10 mm. ASUS LCD Monitor VY279HGE Series... -
Page 14: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. •... -
Page 15: Detaching The Arm (For Vesa Wall Mount)
• The VESA wall mount kit (100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 22.7kg (Screw size: M4 x 10 mm) ASUS LCD Monitor VY279HGE Series... -
Page 16: Connecting The Cables
HDMI signal is fed. If you need to replace the power cord or the connection cable(s), please contact ASUS customer service. Turning on the monitor Press any button to turn on the monitor . See page 1-2 for the location of the power button. -
Page 17: Osd (On-Screen Display) Menu
Press the Up and Down keys to select the desired parameter. Press the Central key to enter the slide bar and then use the Up, Down, Left, right keys, according to the indicators on the menu, to make your changes. ASUS LCD Monitor VY279HGE Series... -
Page 18: Osd Function Introduction
3.1.2 OSD function introduction Splendid This function contains 8 sub-functions you can select for your preference. VY279HGE Splendid Brightness 1920x1080 60Hz Standard Mode Standard Mode Splendid sRGB Mode Scenery Mode Eye Care Theater Mode Game Mode Color Night View Mode Reading Mode Image Darkroom Mode... - Page 19 High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome) when the user adjusts blue light filter bar to maximum level. ASUS LCD Monitor VY279HGE Series...
- Page 20 • Rest Reminder: This function provides you a rest reminder according to how long you set for your working time. For example, if you set a 30-minute working time and there will be a pop up reminder appeared on the upper left corner of the monitor for 5 seconds when time is up. Press any key to make this reminder OSD disappear.
- Page 21 Aspect Control: Adjusts the aspect ratio to Full or 4:3. 4:3 is only available when input source is in 4:3 format. • ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. • Motion Sync: Offers a more clear mode while displaying motion pictures.
- Page 22 Settings Allows you to adjust the system. VY249HGE Splendid Brightness 1920x1080 60Hz Standard Mode Splendid Demo Mode Splendid Volume GamePlus Eye Care QuickFit Energy Saving Color OSD Setup Language Image Key Lock Settings Back/Exit Enter • Splendid Demo Mode: Splits the screen into two for Splendid modes comparison.
- Page 23 Splendid mode is fixed at “Standard Mode”. • OSD Setup: Adjusts the OSD timeout from 10 to 120 seconds. Enables or disables the DDC/CI function. Adjusts the OSD background from opaque to transparent. ASUS LCD Monitor VY279HGE Series...
- Page 24 • Language: There are 22 languages for your selection, including English, French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatian, Polish, Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesian, Persian, Ukrainian. • Key Lock: To disable all function keys. Press the Down key for over 5 seconds to cancel the key lock function.
-
Page 25: Specifications Summary
Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatian, Polish, Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesian, Persian, Ukrainian) Accessories Quick start guide, warranty card, power cord, HDMI cable, L-shaped screwdriver (optional), 4 screws ASUS LCD Monitor VY279HGE Series... - Page 26 Compliance and Standards CE, CB, CU, RCM, cTUVus, UKrSEPRO, KC (EK)/ MSIP (KCC)/ E-Standby (E-Boy), PSE, VCCI, Energy Star, HDMI, Windows 10 & 11 WHQL, MEPS, EU Energy Label, CEC, RoHS, WEEE, EuP (Power Saving Only), EPEAT Silver, PC Recycle, J-MOSS, TUV Low Blue Light, TUV Flicker Free, ISO 9241-307, Ukraine Energy, Sdoc, Vietnam Energy Efficiency *Specifications are subject to change without notice.
-
Page 27: Outline Dimensions
3.3 Outline dimensions 366.17 [14.42] 336.15 [13.23] Active Area 168.08 [6.62] 90.97 [3.58] 55.99 [2.2] 92.04 [3.62] 199.26 [7.85] 436.83 [17.2] 145.71 [5.74] 70.65 [2.78] 55.86 [2.2] [3.94] ASUS LCD Monitor VY279HGE Series 3-11... -
Page 28: Troubleshooting (Faq)
3.4 Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. The power LED lights amber and there is •... -
Page 29: Supported Operating Mode
1280 x 720P 59.94/60Hz 44.955KHz/45KHz 1440 x 480P 59.94/60Hz 31.469KHz/31.5KHz 1440 x 576P 50Hz 31.25KHz 1920 x 1080P 50Hz 56.25KHz 1920 x 1080P 59.94/60Hz 67.433KHz/67.5KHz 1920 x 1080P 100Hz 112.5KHz 1920 x 1080P 120Hz 135KHz ASUS LCD Monitor VY279HGE Series 3-13...
