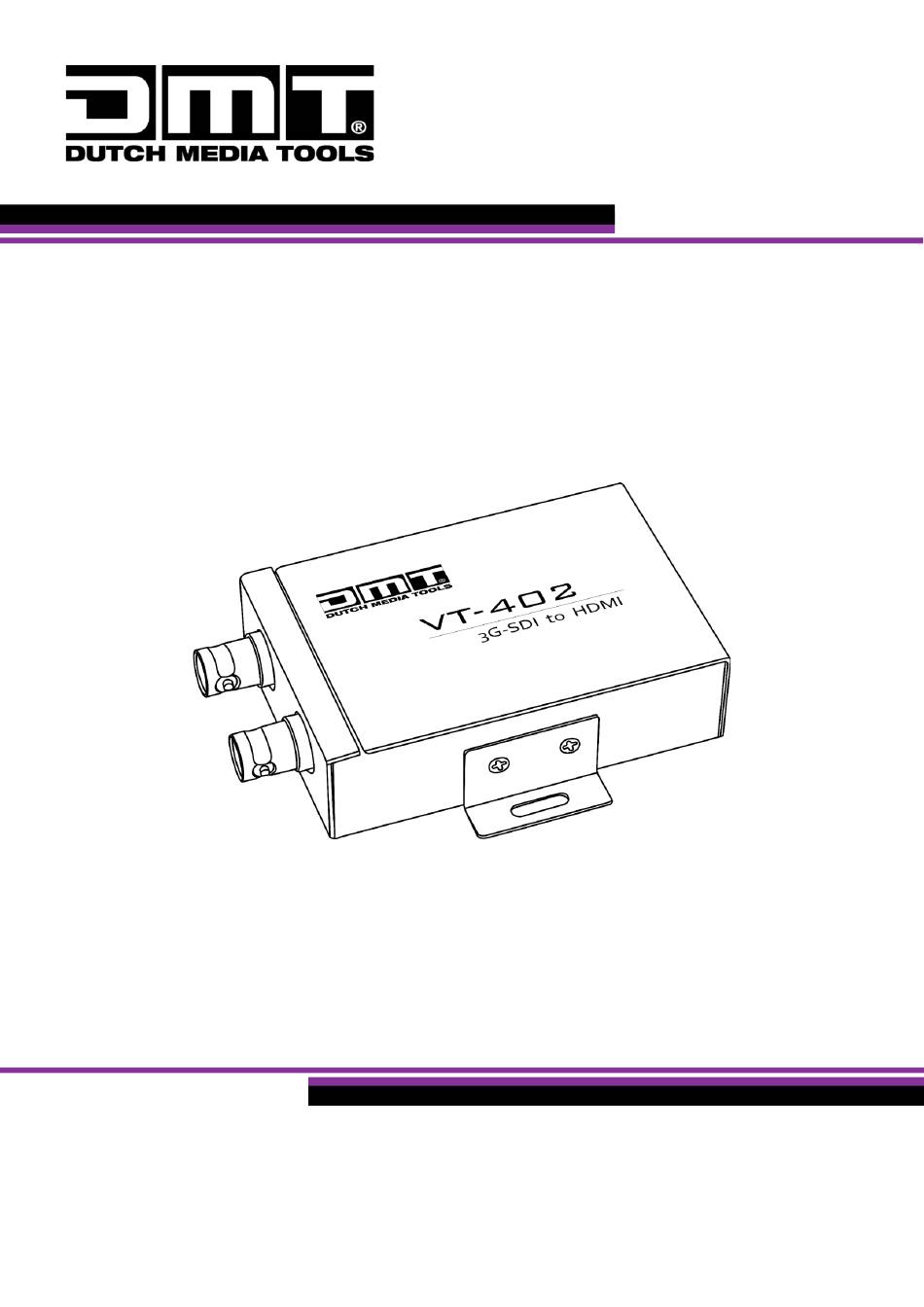

- Page 1 USER MANUAL ENGLISH VT 402 – 3G SDI to HDMI Converter Product code: 101272 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 VT 402 – 3G SDI to HDMI Converter Preface Thank you for purchasing this DMT product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
VT 402 – 3G SDI to HDMI Converter Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Product Lifespan ..............................3 Text Conventions ..............................3 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
VT 402 – 3G SDI to HDMI Converter Introduction Before Using the Product Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. -
Page 5: Symbols And Signal Words
VT 402 – 3G SDI to HDMI Converter Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 6: Safety
VT 402 – 3G SDI to HDMI Converter Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. -
Page 7: Requirements For The User
VT 402 – 3G SDI to HDMI Converter Attention This device shall be used only for the purposes it is designed for. This device is designed to be used as a 3G SDI to HDMI converter. Any incorrect use may lead to hazardous situations and result in injuries and material damage. -
Page 8: Description Of The Device
Description of the Device The VT 402 is a compact 3G SDI to HDMI signal converter. You can use the SDI loop to send SDI signals to other devices. The VT 402 is powered with a micro USB connector. You can use the 2 supplied mounting brackets to mount the device. -
Page 9: Product Specifications
VT 402 – 3G SDI to HDMI Converter Product Specifications Model: VT 402 – 3G SDI to HDMI Converter Electrical: Input voltage: 5 V DC (via USB) Power consumption: Impedance: 75 Ω Physical: Dimensions: 97 x 74 x 23 mm (LxWxH) -
Page 10: Setup And Operation
VT 402 – 3G SDI to HDMI Converter Setup and Operation Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Installation Site Requirements The device must be installed only indoors. -
Page 11: Connecting To Power Supply
VT 402 – 3G SDI to HDMI Converter To connect the device to other devices, follow the steps below: Insert 2 screws into the 2 x mounting brackets (06) and tighten them, to mount the device on a display or a monitor. See Fig. 07. -
Page 12: Led Statuses
VT 402 – 3G SDI to HDMI Converter 4.5. LED Statuses There are 2 LED indicators: lock LED indicator (Green) (02) and power LED indicator (Red) (03). The LED indicators have the following functions: ● LOCK: ● If the light is on, the device is receiving a correct SDI signal and the HDMI output is connected. -
Page 13: Corrective Maintenance
VT 402 – 3G SDI to HDMI Converter Attention ● Do not immerse the device in liquid. ● Do not use alcohol or solvents. ● Make sure that the connections are fully dry before connecting the device to the power supply and to other devices. - Page 14 VT 402 – 3G SDI to HDMI Converter Product code: 101272...
- Page 15 VT 402 – 3G SDI to HDMI Converter Product code: 101272...
- Page 16 ©2022 DMT...
