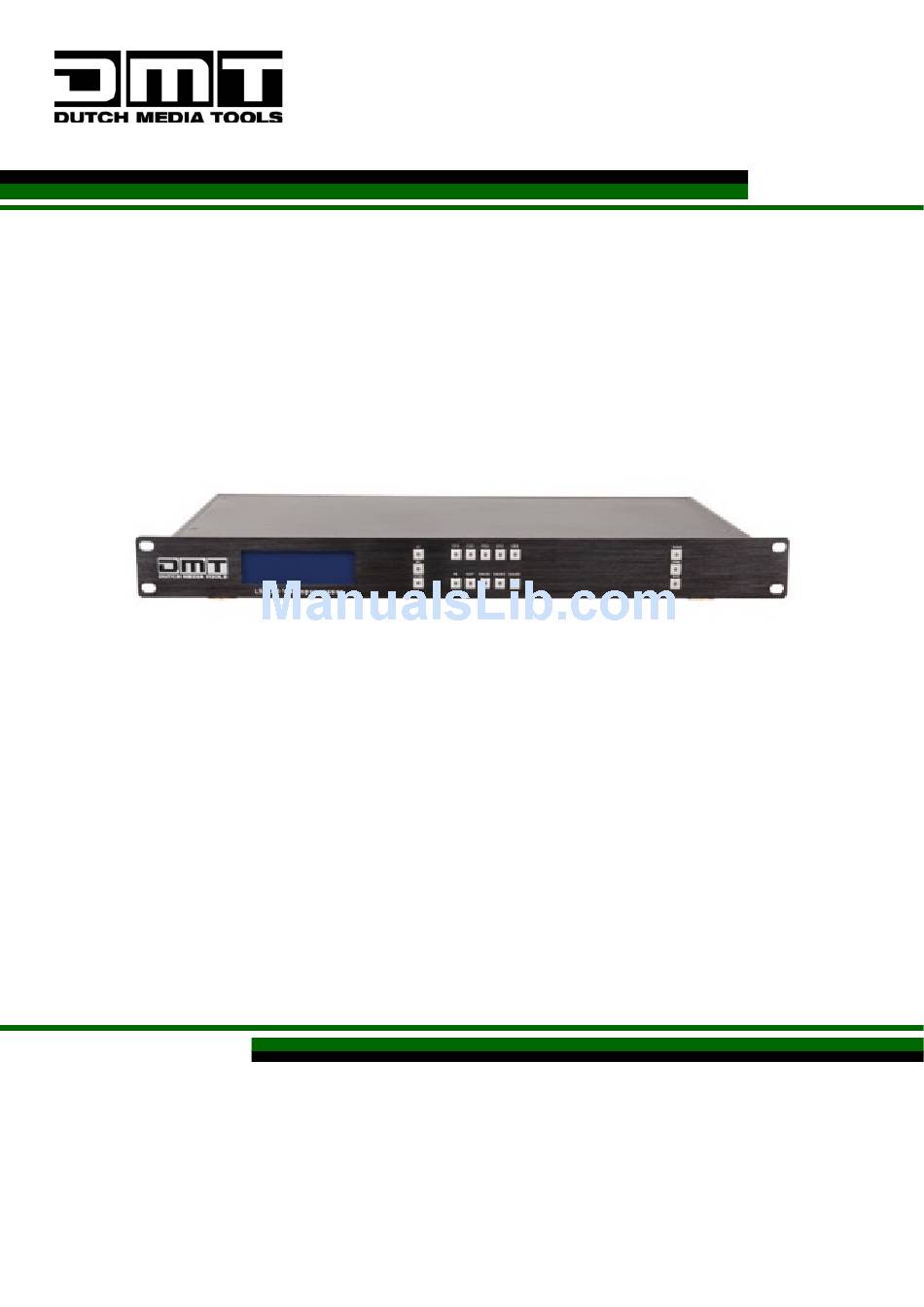

- Page 1 MANUAL NARROW CAST FUNCTION EXPLAINED 101414 - LS-120 Videoprocessor Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Double click the LS-120 icon to start the software Now set the proper ip of the LS-120. In able to do this you need to click the following button: The following screen will open and you can set the IP adress of your LS-120: set the ip address of the LS-120 here, you can find the ip adress by clicking the...
- Page 3 101414 - LS 120 how to upload content Next you need to open the communcation with the LS-120, to do so push this button: When communication with the LS-120 is estabilist, you need to open the “Red Player Editor” software to create the “program” which contains the video or image files you want to upload. To...
- Page 4 101414 - LS 120 how to upload content First step in the Red Player Editor is to import files, in this manual we only use images. Click the icon to open the import screen: Look for the images that you want to use in your program, select and import them:...
- Page 5 101414 - LS 120 how to upload content Now start a new “program” by clicking “Add Program” Click on “Program1” and change the resolution settings on the right hand side of the screen:...
- Page 6 101414 - LS 120 how to upload content Click on “Global Page” and change the resolution to 1024x768 Next step is to add a “Play Window” - Click on “Window1” and change the resolution to 1024 x 768, you can do this on the right hand side of the screen...
- Page 7 Window” just like we did for “Window1” Last step we need to do before uploading the program to the LS-120, is add an item to “Page1”. Without, the program cannot be uploaded. The item we add will not show on the output because it’s “underneath”...
- Page 8 - Inside “Window2” we add a “clock” as said before, this will not show on the output and is only be need for programming reasons. After this we are ready to send the program to the LS-120. To do so, click the “globe” icon in the menu bar;...
- Page 9 101414 - LS 120 how to upload content Click on the button “Search Device” to search for the LS-120 in the network - When all network settings are correct, the program will show the following screen...
- Page 10 101414 - LS 120 how to upload content Click on the found LS-120 and select “SD Card” or “USB Disk”, then click the “Publish” button When the upload was succesful, the following message will show and the LS-120 will start to...
