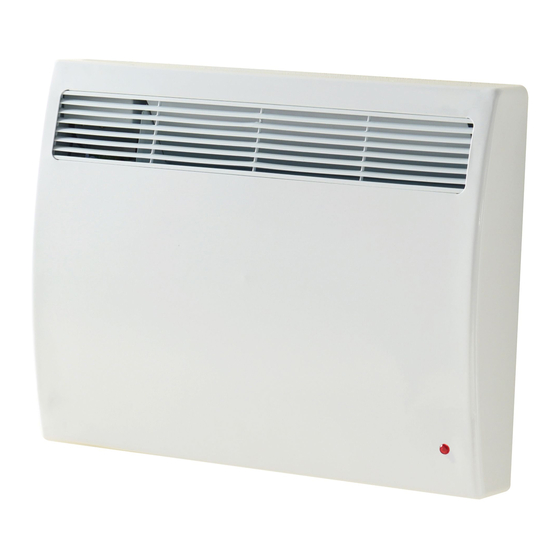

Summary of Contents for Prokonian SPCT-500-P
-
Page 2: Installation
15.3 cm distance (6 in) to ground BLACK (L) Fig. 1 THERMAL MAIN PCB CUT-OFF PROTECTION MODEL (cm) (cm) (cm) (cm) (cm) SPCT-500-P 44.5 34.0 21.5 WHITE (N) SPCT-1000-P 54.0 33.7 12.5 24.8 HEATER SPCT-1500-P 58.2 33.7 10.3 14.7 20.8... -
Page 3: Operation
OPERATION 3. Activate the back light – Press any button on the control panel to activate the blue-colour back light. The light will automatically turn off if no button is being pressed again. 4. Work mode – Under this mode the convector will operate under the pre-set temperature. -
Page 4: Maintenance
6. Override mode – This mode allows you to temporarily CHANGE the preset 8. Resume factory setting for P1 – P4 – To restore the factory setting of P1 to temperature in WORK MODE or PROGRAMMING MODE. P4, press the UP button for 10 seconds (the current time and week will not be changed). -
Page 8: Opération
OPÉRATION Lorsque l’appareil est branché pour la première fois, tous les éléments (symboles et chiffres) dans l’écran ACL pendant trois (3) secondes, comme montré dans le schéma ci-dessus. Après trois (3) secondes, le thermostat fonctionnera selon le mode de programmation à... -
Page 9: Entretien
Affichage de la durée de fonctionnement totale – Appuyer sur la touche MODE 9. En été, ou lorsque le convecteur ne sera pas utilisé pendant une longue période pendant cinq secondes pour faire afficher la durée de chauffage totale de la journée de temps, mettez le convecteur hors tension à... -
Page 12: Instalación
(15.3 cm) el piso CABLE NEGRO CON CORRIENTE (L) Fig. 1 PROTECCIÓN DE PRIMARIA DESCONEXIÓN TÉRMICA MODEL (cm) (cm) (cm) (cm) (cm) SPCT-500-P 44.5 34.0 21.5 CABLE BLANCO NEUTRO (N) SPCT-1000-P 54.0 33.7 12.5 24.8 CALEFACTOR SPCT-1500-P 58.2 33.7 10.3 14.7... - Page 13 5. Modo de programación: existen 4 valores programables (P1 a P4). El calefactor 1. Valores de tiempo – presione los botones UP (Arriba) y DOWN (Abajo) a la vez. trabajará con la temperatura, la hora y los ciclos preconfigurados de P1 a P4 todos Presione el botón ARRIBA o ABAJO para la “HORA”.
-
Page 14: Mantenimiento
MANTENIMIENTO Consulta del tiempo de calefacción continua – presione el botón MODO durante 5 segundos; la pantalla mostrará el tiempo de calefacción total para el día actual. ADVERTENCIA: PARA DISMINUIR EL RIESGO DE INCENDIO O DESCARGA ELÉCTRICA, SIEMPRE DESCONECTE LA UNIDAD EN EL CIRCUITO DE DISTRIBUCIÓN PRINCIPAL/TABLERO DE DESCONEXIÓN PRINCIPAL Y ESPERE 10 MINUTOS PARA QUE SE ENFRÍE LA UNIDAD ANTES DE HACERLE EL MANTENIMIENTO O LIMPIARLA.
Need help?
Do you have a question about the SPCT-500-P and is the answer not in the manual?
Questions and answers
where do i find the model number of unit on wall it has one window one line of 2 choices or may be choices came with the house. Problem is that the unit is heating and it is hot in the house what manual do I choose and where do I find the model number. there is a red button on the very bottom right hand side and the screen is on the narrow top right hand section. At 85 is is hard to see the display and what it is saying. I am having a vision problem being corrected hopefully in July but the letters or numbers in a line move up and down, the lines move up or down and everything right now is blurry. help me find the button to shut the heat off.
The model number "SPCT-500-P" is part of the product name and may be found on the unit’s label or manual. To turn off the heat, switch off the convector at the main switch panel or circuit breaker.
This answer is automatically generated
I have recently bought a returned heater prokonian 2000w but has no brakets.can we perchase bracket alone?
