MTD Bolens BL100 Operator's Manual

2-Cycle Trimmer
BL100/150

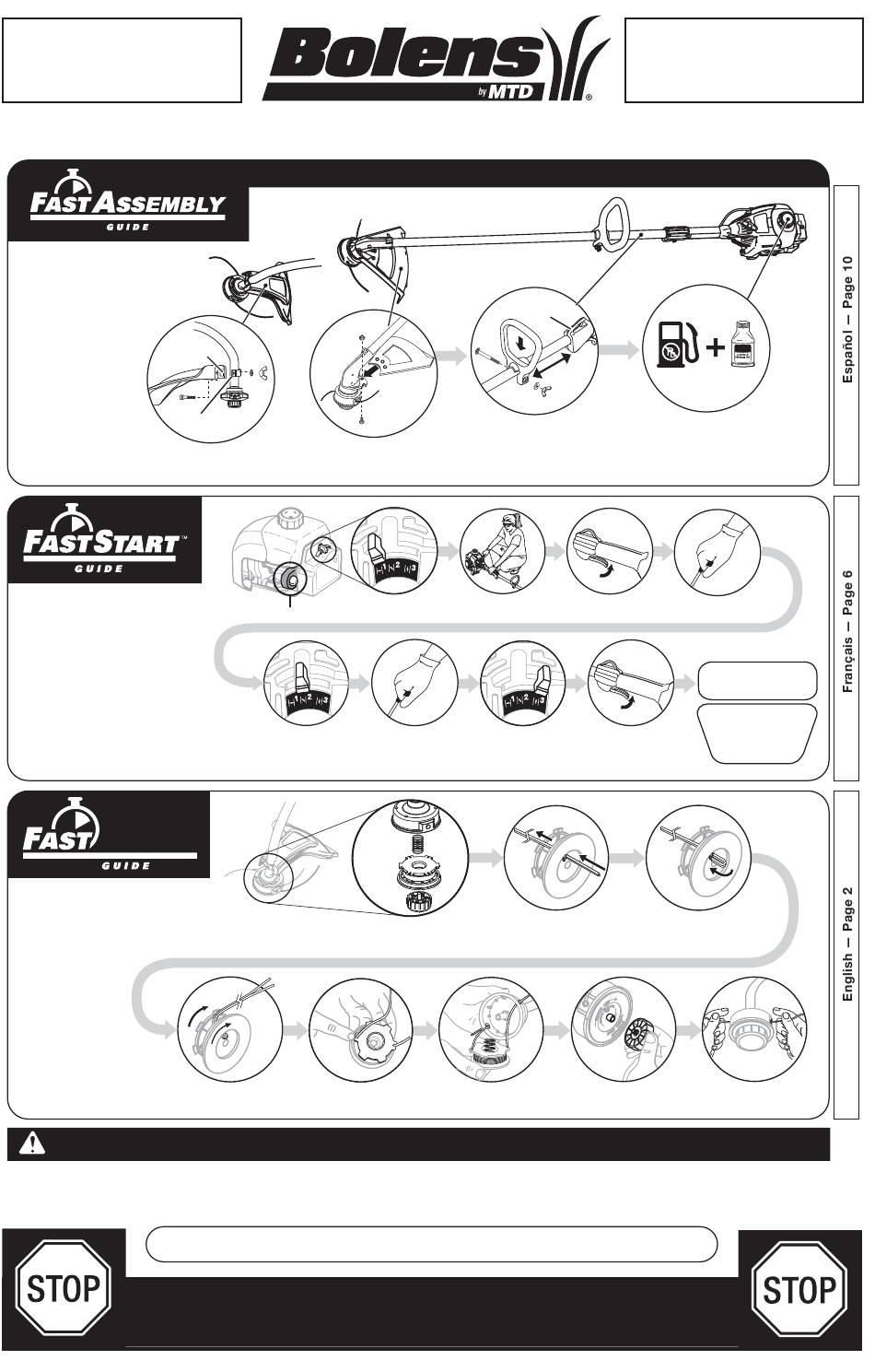

Quick Instructions to
Assemble Curved
Shaft or Straight
Shaft String
Trimmers
for complete instructions
see page 3.
Slide the shield's slot onto the mounting bracket. Rotate
the shield onto the shaft. Push square bolt through shield
and bracket. Tighten washer and wing nut onto bolt.
Quick Instructions
to Start Engine
for complete instructions see page 3.
LINE
RELOAD
Quick Instructions to
®
Replace SplitLine
Trimmer Line
®
Replacement SplitLine
Part #49U2134K953
For single line installation,
see page 4.
For replacement spool
installation, see page 4.
Wind line tightly in direction of arrow.
Split other end of SplitLine
IMPORTANT: READ OPERATOR'S MANUAL THOROUGHLY AND FOLLOW THE SAFE OPERATION PRACTICES BEFORE OPERATING THE UNIT.
PART NO. 769-04619 P00
Read and understand all instruction, warning and danger labels on the unit.
BL100
Curved Shaft
Slot
OR
Bracket
Slide the shield onto the shield mount.
Place hex lock nuts into the 3 holes.
Insert screws from the bottom. Tighten.
Press primer bulb 10 times.
Move choke lever to
Position 2.
Push 6-7" ends into
® 0.080" holding slots.
back 6-7".
Call 1–888–TO–HELP–U (1–888–864–3578)
DO NOT RETURN THIS PRODUCT
For Assistance please call 1-888-864-3578 (U.S.) or 1-800-668-1238 (Canada)
or visit www.bolens.com or www.bolens.ca
BL150
Straight Shaft
Put handle on shaft so that it
tips toward engine. Move handle
6 inches away from shaft grip.
Insert bolt. Tighten washer and
wing nut onto bolt.
Put choke lever in Crouch in starting
Position 1. position.
Pull the rope until engine Move choke lever
starts. Run engine for 30 to Position 3.
to 60 seconds to warm up.
Spool
Spring
Inner
Reel
Bump
Knob
Insert 10' of 0.080" SplitLine
Unscrew Bump Knob™
counterclockwise.Remove hole in top of reel. Pull most of line
inner reel and spring. through hole until 3-4" remains.
Insert lines through eyelets in spool.
Insert spring and reel into spool.
Need help?
Operator's
Manual
Grip
6" 1 Gallon
Mix thoroughly in a separate fuel can:
– 3.2 oz of 2-cycle engine oil
– 1 gallon of unleaded gasoline
Place the unit on a level surface. Fill fuel tank.
NOTE: Do not mix directly in the engine fuel tank.
SQUEEZE and HOLD throttle Pull the rope
control for ALL further steps. 5 times.
Continue squeezing the
throttle control and run engine
for additional 60 seconds to
complete warm up.
®
through Bend short end and push it
into the other hole. Pull tight.
Hold the inner reel in place.
Tighten Bump Knob clockwise.
40:1
3.2 oz
5 X
DIDN'T START?
Repeat these instructions.
If engine still fails to start, refer
to Starting Instructions or
Troubleshooting for
additional starting
information.
Pull lines firmly to release
from holding slots.
(11/07)
