DO NOT CONNECT BOTH RJ 45 AND XLR CONNECTORS AT THE SAME RDNET
PORT!
RJ 45 CONNECTOR
Pin
1 – available for other functions (for example: audio signal +, hot)
2 – available for other functions (for example: audio signal –, cold)
3 – vailable for other functions (for example: analogue ground)
4 – digital ground
5 – digital ground
6 – available for other functions (for example: power supply)
7 – RS 485 A
8 – RS 485 B
XLR SOCKET
Pin
1 – digital ground
2 – RS 485 A
3 – RS 485 B
21)
or a 3-pole XLR socket (see point 20).
22)
or a 3-pole XLR socket (see point 20).
23)
or a 3-pole XLR socket (see point 20).
24)
or a 3-pole XLR socket (see point 20).
25)
or a 3-pole XLR socket (see point 20).
26)
or a 3-pole XLR socket (see point 20).
27)
or a 3-pole XLR socket (see point 20).

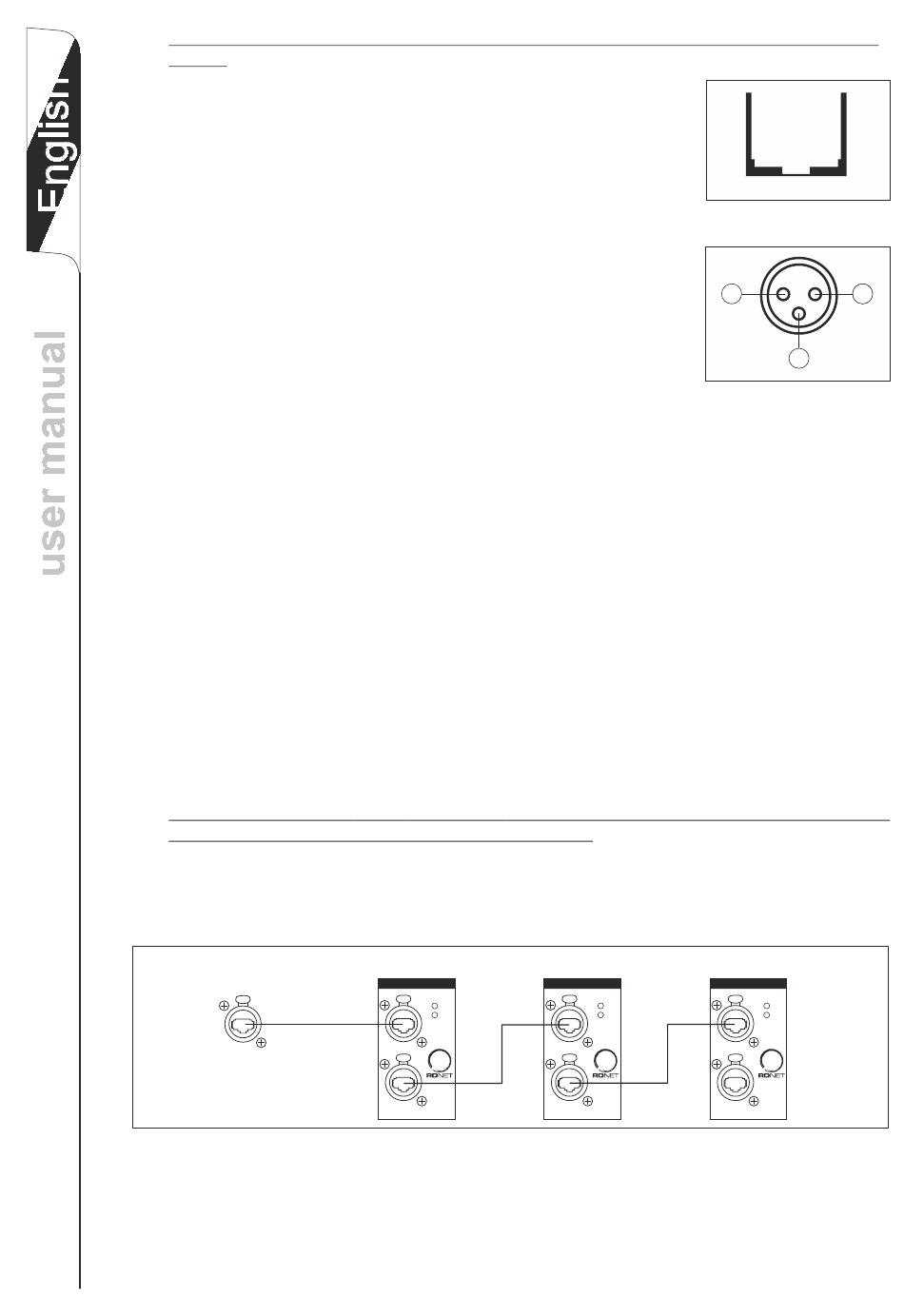

SUBNET CONNECTION
Each of the 8 available RDNet ports of the RDNet Control 8 unit can be connected to max.
32 compatible audio devices (linked in 'daisy-chain').
Example: the RDNet Control 8 port 1 is connected to the DATA IN input of a DVA T12
loudspeaker, of which DATA LINK parallel output is linked to the input of the following DVA
T12 loudspeaker.
CONTROL 8
In the example above, [n] is a number from 3 to 32 (max. quantity of audio devices that can
be connected to a subnet).
The total CAT 5 cable length of a subnet cannot exceed 900 metres (c. 2950 feet).
7
CH2
Subnet 2 RDNet port, through either an RJ 45 connector (CAT5 cable)
CH3
Subnet 3 RDNet port, through either an RJ 45 connector (CAT5 cable)
CH4
Subnet 4 RDNet port, through either an RJ 45 connector (CAT5 cable)
CH5
Subnet 5 RDNet port, through either an RJ 45 connector (CAT5 cable)
CH6
Subnet 6 RDNet port, through either an RJ 45 connector (CAT5 cable)
CH7
Subnet 7 RDNet port, through either an RJ 45 connector (CAT5 cable)
CH8
Subnet 8 RDNet port, through either an RJ 45 connector (CAT5 cable)
RDNET
DVA T12 [1]
PUSH
CH 1
DVA T12 [2]
RDNET
RDNET
PUSH
PUSH
Link
Active
Data
Input
PUSH
PUSH
Data
Link
|1|2|3|4|5|6|7|8|
RJ 45
2
XLR
DVA T12 [n]
RDNET
PUSH
Link
Active
Data
Data
Input
Input
PUSH
Data
Data
Link
Link
1
3
Link
Active
