CONTROL 8
Master Control Unit
MANUALE D'USO - Sezione 1
USER MANUAL - Section 1
BEDIENUNGSANLEITUNG - Abschnitt 1
CARACTERISTIQUES TECHNIQUES - Section 1
Made in Italy
COD. 420120183
Rev 4.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RDNET CONTROL 8 and is the answer not in the manual?

Questions and answers

Related Manuals for dB Technologies RDNET CONTROL 8

Summary of Contents for dB Technologies RDNET CONTROL 8

  • Page 1 CONTROL 8 Master Control Unit MANUALE D’USO - Sezione 1 USER MANUAL - Section 1 BEDIENUNGSANLEITUNG - Abschnitt 1 CARACTERISTIQUES TECHNIQUES - Section 1 Made in Italy COD. 420120183 Rev 4.2...

  • Page 2: Installazione

    Il collegamento tra il PC e l’unità di controllo RDNet Control 8 può avvenire mediante porta USB o porta ETHERNET (connessione utilizzabile quando, per esigenze d’installazione, il PC è distante o si vuole collegare l’unita di controllo RDNet Control 8 ad una rete ETHERNET già cablata).

  • Page 3: Card Reader

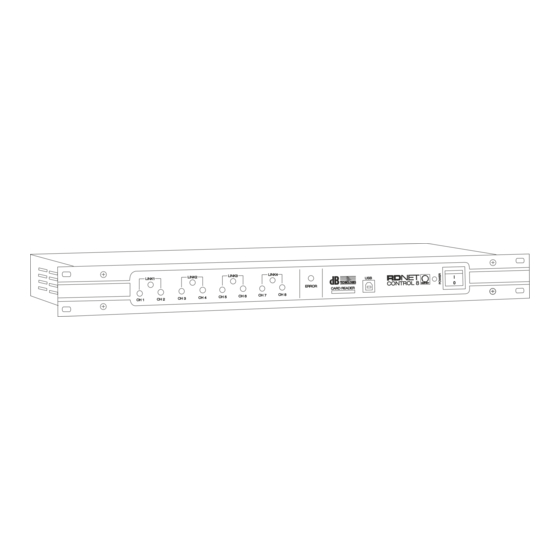

    PANNELLO FRONTALE (fare riferimento a pag. 9) CH 1 LED indica, tramite lampeggio, la trasmissione o ricezione dei dati nella sottorete 1. CH 2 LED indica, tramite lampeggio, la trasmissione o ricezione dei dati nella sottorete 2. CH 3 LED indica, tramite lampeggio, la trasmissione o ricezione dei dati nella sottorete 3.
  • Page 4 32 dispositivi audio compatibili posti in cascata. Ad esempio: la porta nr.1 dell'unità di controllo RDNet Control 8 è collegata all'ingresso DATA IN di un diffusore DVA T12, la cui uscita parallela DATA LINK è inviata all'ingresso del successivo diffusore DVA T12.

  • Page 5: Dati Tecnici

    NOTE SUL SOFTWARE RDNET Il software RDNet è utilizzabile per la sola configurazione del sistema dB Technologies RDNet ed è protetto dalle leggi sul copyright. È fatto divieto di modificare, cambiare, ricercare di risalire al codice sorgente decompilando il software.

  • Page 6: Installation

    The link between the PC and the RDNet Control 8 unit can be made through USB port or ETHERNET port (useful when the PC is far or it is necessary to link the RDNet Control 8 unit to an ETHERNET net already wired).
  • Page 7 FRONT PANEL (refer to page 9) CH 1 LED indicating (when flashing) data transmission / reception in the subnet 1. CH 2 LED indicating (when flashing) data transmission / reception in the subnet 2. CH 3 LED indicating (when flashing) data transmission / reception in the subnet 3.
  • Page 8 3-pole XLR socket (see point 20). SUBNET CONNECTION Each of the 8 available RDNet ports of the RDNet Control 8 unit can be connected to max. 32 compatible audio devices (linked in ‘daisy-chain’). Example: the RDNet Control 8 port 1 is connected to the DATA IN input of a DVA T12 loudspeaker, of which DATA LINK parallel output is linked to the input of the following DVA T12 loudspeaker.

  • Page 9: Notes About The Rdnet Software

    The foregoing provision is effective even if dB Technologies has been advised of the possibility of such damages. Even if the software has any material, verifiable and reproducible program errors, dB Technologies shall have no obligation to modify such errors.

  • Page 10: Fcc Certification

    WARNING This equipment is compliant with class A of CISPR 32. In a residential environment this equipment may cause radio interference. FCC CERTIFICATION This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 11 PANNELLI - PANELS Pannello Frontale - Front Panel Pannello Retro - Rear Panel PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH PUSH DIMENSIONI / DIMENSIONS...
