INSTALLATION, OPERATION and MAINTENANCE
1000-CH-SS-D
1000-CH-AL-D
Cabinet model number:
Cabinet serial number:
Authorized Service Agency:
Ph:
Keep this manual for future reference.
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
MANUAL for Cres Cor

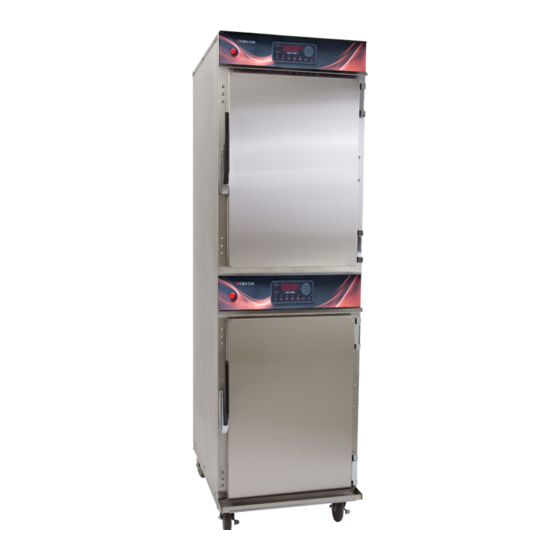

RADIANT OVENS
Models:
1000-CH-D SERIES
Fax:
Ovens
Rev. 0 (5/13)
1000-CH-SS-SPLIT-D
1000-CH-AL-SPLIT-D
1000-CH-SS-SPLIT-D120
FL-2340-D
Page 1 of 12
Advertisement
Related Manuals for Cres Cor 1000-CH-D Series
Summary of Contents for Cres Cor 1000-CH-D Series
- Page 1 MANUAL for Cres Cor RADIANT OVENS 1000-CH-SS-SPLIT-D 1000-CH-SS-D 1000-CH-AL-SPLIT-D 1000-CH-AL-D 1000-CH-SS-SPLIT-D120 Models: 1000-CH-D SERIES Cabinet model number: Cabinet serial number: Authorized Service Agency: Fax: Keep this manual for future reference. Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
-
Page 2: Table Of Contents
DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com... -
Page 3: Installation Instructions
Flip the switch “UP” for 208 Volts Flip the switch “DOWN” for 240 Volts MAKE SURE THE SWITCH POSITION MATCHES YOUR POWER SOURCE. Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com... - Page 4 4. Re-mount the hinges to the opposite side of the cabinet and door. Air is VERY HOT when door is opened. 5. Remount the latch and strike to the opposite side Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
-
Page 5: Operating Instructions
“COOK” (Probe): shows Home screen, set point, count up time, actual cabinet temperature. 3. The control automatically goes to the TIME mode. • “HOLD”: shows Home screen, set point, count up time, actual cabinet temperature. Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com... - Page 6 “RECF” allows you set how often (in minutes) a datapoint will be recorded. “RECD” allows you to set how long (in days) you would like the data to be stored in memory. Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
-
Page 7: How To Clean The Unit
Mild abrasive cleaner. Apply with soft, clean cloth. Oily or waxy cleaner. Water Spots Mild abrasive cleaner. Wipe with damp cloth. *Mild detergents include soaps and non-abrasive cleaners. Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com... -
Page 8: Trouble Shooting Guide
Refer to our Service Agency list, FL-1400 (found in the back of this manual), of authorized service centers. Instructions for replacing parts are included in replacement parts list. Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com... -
Page 9: Replacement Parts
REPLACEMENT PARTS Include all information on nameplate when ordering parts INSULATION 11 12 SIDE PANEL HEATER WIRE COVER Model 1000-CH-SS-D is shown. Model 1000-CH-SPLIT-D is half-size single door oven. FL-2340D 1000CHSSSPLITD Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com... - Page 10 28. Fuse Holder (1000-SS-D) 0807-151 0807-151 14. Door Gasket 0861-267 29. Strainer 1052-094 0861-267 15. Door Hinge 0519-109 Probe-Food 6” 0848-103 16. Casters, Rigid 0569-306-R Probe Connector 0848-106-02 0569-306-R 0848-106-02 Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
- Page 11 FL-2340-D Ovens Rev. 0 (5/13) Page 11 of 12 5925 Heisley Road • Mentor, OH 44060-1833 WIRING DIAGRAM FOR 1000-CH-D SERIES Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
- Page 12 FL-2340-D Ovens Rev. 0 (5/13) Page 12 of 12 5925 Heisley Road • Mentor, OH 44060-1833 WIRING DIAGRAM FOR 1000-CH-SS-SPLIT-D and 1000-CH-SS-SPLITD120 Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com...
