OPERATING and MAINTENANCE INSTRUCTIONS
Models: 120-PH and 121-PH Series Proof/Hot Cabinets
Model No.
120-PH-1836
121-PH1816
120-PH1836 240
121-PH-1816 240
All are designed for AC service.
HOW TO INSTALL UNIT:
1. Place cabinet near warm ovens. Do
drafty areas or near ventilating systems.
2. Plug power cord into proper wall outlet.
3. Fill water pan (following steps a-c).
CAUTION
operation and to maintain warranty.
a. Lift off cover.
b. Fill with 3.5 qts. (3.3 liters) of water. Replace cover.
c. Adjust vents on cover to half open.
HOW TO PROOF:
1. Push switch to "HUMIDITY". Yellow power light
will come on.
2. Turn "RESERVOIR THERMOSTAT" to #10. Red
heater light will come on.
3. Preheat cabinet for 30 minutes.
4. Put fresh or fully thawed dough into cabinet.
NOTE: The cabinet temperature will drop temperature
inside cabinet if cold dough is added.
Do NOT put frozen dough into cabinet
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
Volts Watts
120 2025
240 1925
NOT put in
Use of treated or
soft water may be
required for proper
Rev. 20 (3/10)
Amps Hertz
16.8 60
8 60
HOW TO PROOF, continued:
5. Turn "RESERVOIR THERMOSTAT" to #9 and
close the door.
NOTE: No. 9 setting will give you an approximately
90-95% humidity at 95°F (35°C). Experiment
with different settings to get the exact
temperature and humidity you need.
Thermometer shows the temperature inside the cabinet.

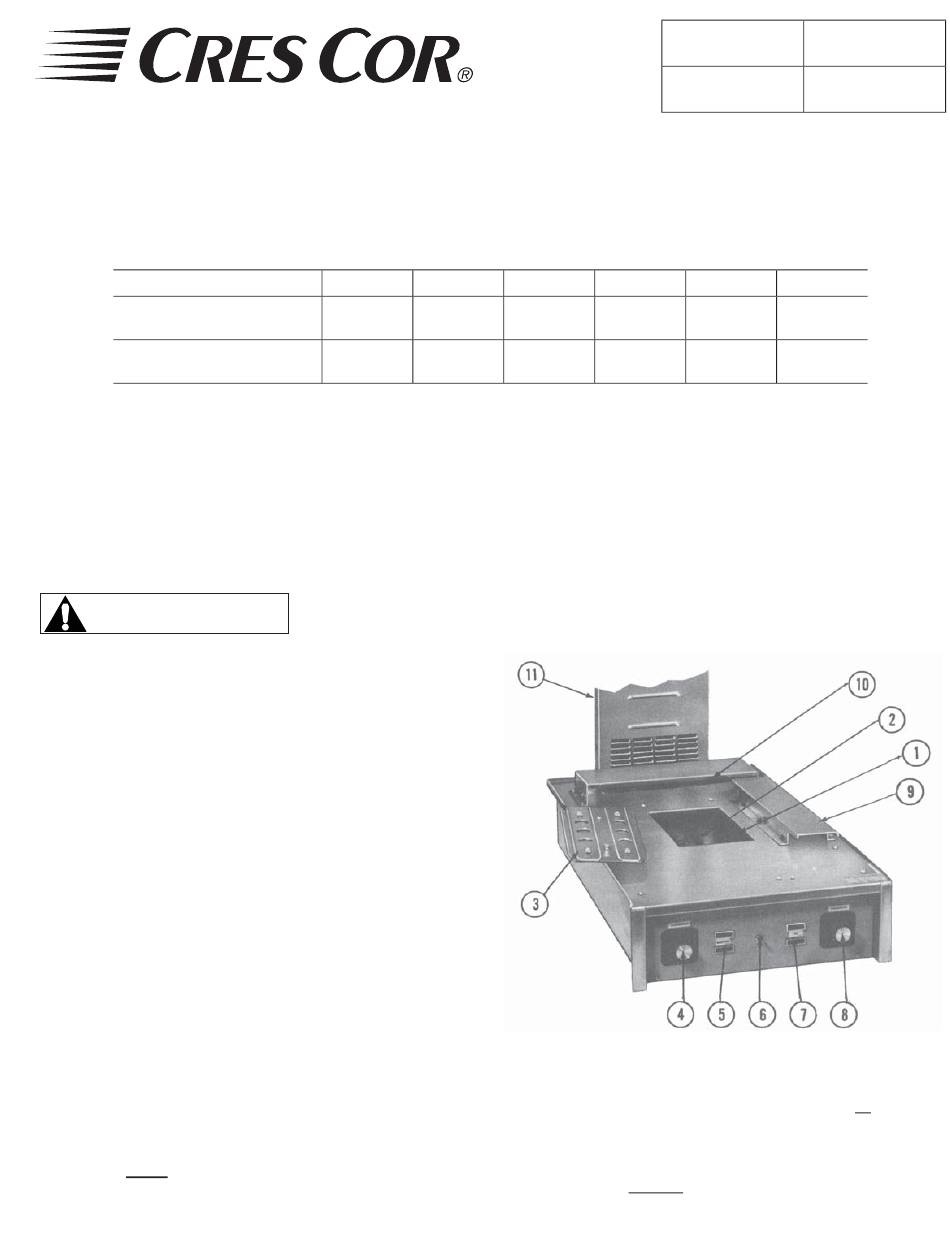

PARTS IDENTIFICATION
1. Water Pan (Reservoir)
2. Reservoir Heater & Probe
3. Water Pan Cover
4. Reservoir Thermostat
5. Yellow POWER light; Red
HEATER light for Reservoir
Proof/Hot
FL-0604
Cabinets
Page 1 of 4
Phase NEMA
1 5-20P
1 5-15P
6. Switch: ON/OFF
7. Yellow POWER light; Red
HEATER light for Air
8. Air Thermostat
9. Air Probe
10. Air Heater
11. Tunnel Heater
