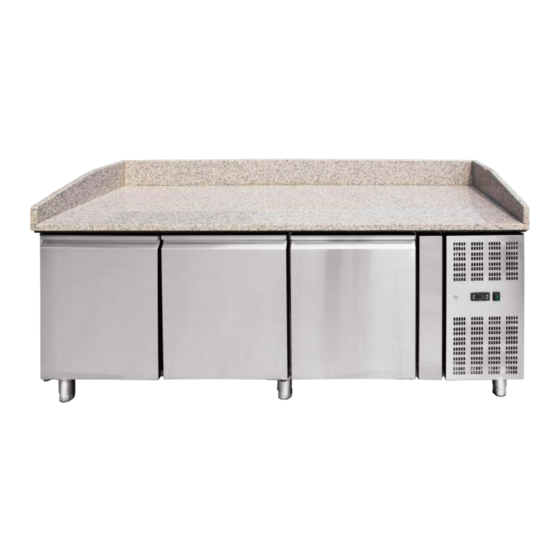

- Page 1 Refrigerated Prep Tables Models PT-CN-0390, 0580-2, 0580 Items 39592, 48621, 41145 Instruction Manual Revised - 05/10/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model PT-CN-0390 / Model PT-CN-0580-2 / Model PT-CN-0580 Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Installation --------------------------------------------------------------------------------------- 8 - 9 Operation --------------------------------------------------------------------------------------- 9 - 10... -
Page 3: Disclaimer
Disclaimer OMCan Is nOT ResPOnsIble fOR any DaMages Due TO waTeR leaks. waRRanTy fOR waTeR leaks Is vOID If The aMbIenT ROOM TeMPeRaTuRe exCeeDs 75°f anD 55% RelaTIve huMIDITy, anD The aPPlIanCe DRaIn Is nOT COnneCTeD DIReCTly TO a flOOR DRaIn. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 • DO NOT attempt to service the item yourself. • DO NOT use damaged appliances. If you are in any doubt, consult Omcan. • DO NOT use electrical appliances inside the appliance (e.g. heaters, ice-cream makers etc.), unless they are of the type recommended by the manufacturer.
- Page 7 Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. Please see https://omcan.com/disclaimer for complete info.
-
Page 8: Technical Specifications
Check that the supply conforms to the requirements shown on the rating label. The connection must be grounded. The supply cable should never be stretched or pinched, keep the cable away from contact with liquids or heat sources. In the even of damage it must be replaced by Omcan. -
Page 9: Installation
Installation BrACkeT AssemBly fOr TOPPING rAIls (OPTIONAl) 1. Using the screws to fix the three pieces of brackets on the bottom of your refrigerated topping rail. 2. Put the topping rail unit on the granite top of the pizza prep table, and the brackets should be placed as following pictures. -
Page 10: Operation
Operation • Place the merchandise into the unit only after it has achieved the desired operating temperature on the display. • Do not place uncovered hot foods or liquids inside the unit. • Package or protect foods when possible. • Do not block the air circulation with the foodstuffs. -
Page 11: Troubleshooting
Cover the cabinet with a cloth that allows air circulation in the interior. Troubleshooting Often, the malfunction of the unit is due to a simple cause and can be easily fixed without contacting Omcan for technical support. Please check the following: If the cabinet does not operate, make sure that: •... -
Page 12: Parts Breakdown
Parts breakdown Model PT-Cn-0390 39592... - Page 13 Parts breakdown Model PT-Cn-0390 39592 Item No. Description Position Item No. Description Position Item No. Description Position AF205 Body for 39592 AF221 Front Support Right for 39592 AF235 Filter Drier for 39592 AF206 Door Right for 39592 AF222 Back Support Right for 39592...
- Page 14 Parts breakdown Model PT-Cn-0580-2 48621...
- Page 15 Parts breakdown Model PT-Cn-0580-2 48621 Item No. Description Position Item No. Description Position Item No. Description Position AM476 Foaming Cabinet for 48621 AM485 Shelf Support Strip - Right Rear for 48621 AF237 Filter for 48621 Installation Board of Compressor Set AM477 Foaming Door - Right for 48621 AF223...
- Page 16 Parts breakdown Model PT-Cn-0580 41145...
- Page 17 Parts breakdown Model PT-Cn-0580 41145 Item No. Description Position Item No. Description Position Item No. Description Position AF248 Body for 41145 AF221 Front Support Right for 41145 AF235 Filter Drier for 41145 AF249 Door Right for 41145 AF222 Back Support Right for 41145 AF236 Capillary for 41145 AF250...
-
Page 18: Electrical Schematics
Model PT-Cn-0390 39592 Model PT-Cn-0580-2 48621 Model PT-Cn-0580 41145... -
Page 19: Warranty Registration
Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
