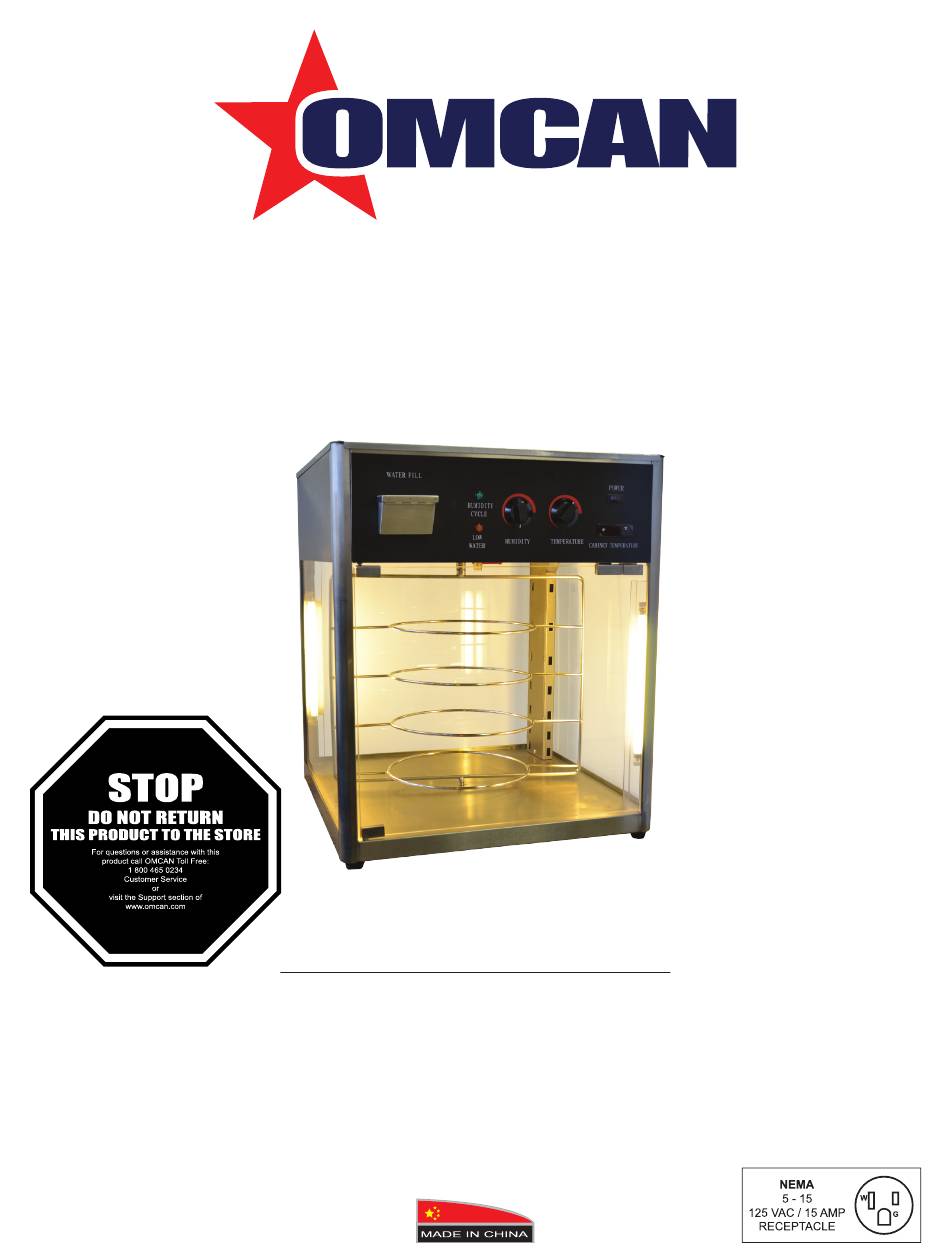

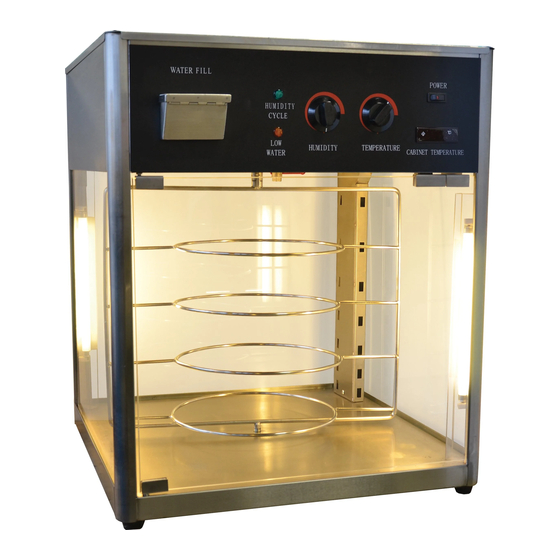

- Page 1 Pizza Warmer Model DW-CN-0457 Item 20427 Instruction Manual Revised - 08/01/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model DW-CN-0457 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications ---------------------------------------------------------------------- 5 - 6 Assembly Instructions ------------------------------------------------------------------------- 6 - 8 Installation --------------------------------------------------------------------------------------- 8 - 9 Function and Operation... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Safety and Warranty WARNING 1. If the supply cord is damaged it must be replaced by Omcan, or a qualified service agent in order to avoid any electrical hazards. 2. This appliance shall not be cleaned with any type of liquid pressurized cleaning equipment. -
Page 5: Technical Specifications
1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. -
Page 6: Assembly Instructions
The unit also features adjustable humidity and heat controls which allow greater flexibility to improve overall product freshness and consistency. • The unit thermostat control allows for even heat during the warming period on all food surfaces. TECHNICAL SPECIFICATIONS Model DW-CN-0457 Power 1.38 KW Temperature 30° - 85°C / 86° - 185°F Electrical... - Page 7 Assembly Instructions 2. Remove any plastic protective film prior to assembling. Place the complete secured lower left side door and hinge assembly into the lower left side of the cabinet. 3. Place the left side top door hinge assembly into the upper frame left hole slot and proceed to slide and insert the complete glass door into the top door hinge.
-
Page 8: Installation
Assembly Instructions 5. Installing the magnet door catch/release along with the separate magnet interlock catch is similar to the door hinges; only difference is they do not swivel. They must however mate up and align facing the magnetic door latch, and separate magnet door interlock switch. It is located on the top inside right side of the display warmer case. -
Page 9: Function And Operation
Installation ELECTRICAL INSTALLATION: When first installed ensure proper power requirements are met. A standard 15A/110-120V receptacle with ground must be utilized. Function and Operation • Water tray reservoir must be filled to the correct amount until low water level indicator turns off. •... -
Page 10: Troubleshooting
REFERENCE Item Number Model Number Description Manufacturer Model Number Display Warmer Pizza 18” / 457mm 20427 DW-CN-0457 DH18 Diameter 1680W 110V/60/1 Parts Breakdown Model DW-CN-0457 20427 Item No. Description Position Item No. Description Position Item No. Description Position... - Page 11 Parts Breakdown Model DW-CN-0457 20427...
-
Page 12: Electrical Schematics
Electrical Schematics Model DW-CN-0457 20427 K - Power Switch L2 - Heating Light H1 - Relay L3 - Flourescent Tube H2 - Relay L4 - Flourescent Tube W1 - Heater H3 - Micro Switch W2 - Heater T1 - Temperature Display... -
