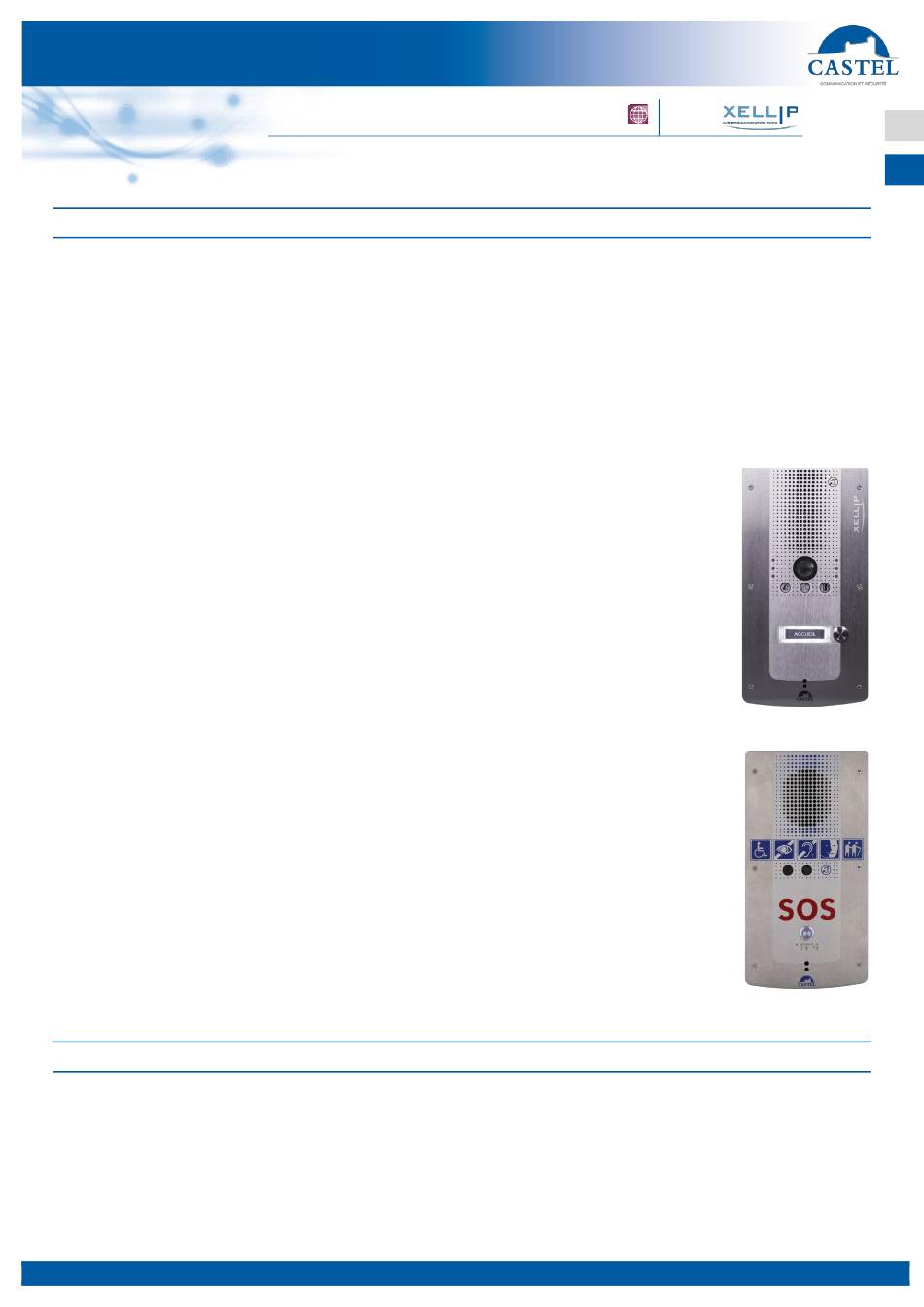

AUDIO VIDEO IP WITH 1-6 PB DOOR ENTRY STATION
PRESENTATION
Product references: 590.0000 (XE AUDIO 1B) - 590.2000 (XE VIDEO 1B) - 590.0100 (XE AUDIO 2B) - 590.2100
(XE VIDEO 2B) - 590.0200 (XE AUDIO 3B) - 590.2200 (XE VIDEO 3B) - 590.0300 (XE AUDIO 4B) - 590.2300 (XE
VIDEO 4B) - 590.0400 (XE AUDIO 6B) - 590.2400 (XE VIDEO 6B) - 590.9920 (XE AUDIO 1B HELP) - 590.9910 (XE
AUDIO 2B HELP) - 591.0000 (XE AUDIO 1B DO) - 591.2000 (XE VIDEO 1B DO) - 591.2100 (XE VIDEO 2B DO) -
591.2200 (XE VIDEO 3B DO) - 591.0300 (XE AUDIO 4B DO) - 591.2300 (XE VIDEO 4B DO) - 590.9930 (XE AUDIO
1B S) - 590.9940 (XE AUDIO 1B LIAISON)
The door entry station is a SIP intercom which integrates the following functions (depending on the version):
•
Establish an audio / video communication with the other devices from the Castel IP
intercom range, softphones, or any other equipment compatible with the SIP
standard:
↘ By peer to peer
↘ By registering on a SIP server with the capacity to configure up to 2 backups
servers and multiple SIP account
•
Establish an audio communication with the other devices from the Castel digital and
analog intercom range (requires the use of an additional M-HYB-IP gateway)
•
Full HD wide-angle camera, protected by a removable window (depending on
model)
•
1 to 6 programmable buttons to configure actions of your choice
•
2 "All or Nothing" inputs
•
2 dry contacts to control a strike or any other equipment
•
Complies with the "Disability accessibility law": workstations equipped with
pictograms, colored LED, voice synthesizers, an integrated magnetic induction loop
•
Profile management, selectable by time slot or via automation
•
Management of advanced automation (logical and time relationships) on its
interfaces
•
Self-tests that can be performed automatically or on demand
•
ONVIF (Open Network Video Interface Forum) compatibility
•
Integration of RTSP (Real Time Streaming Protocol)
•
Integration of SNMP (Simple Network Management Protocol)
•
Integration of an ASCII string notification protocol
•
QRCode and barcode reading for automation
•
Management of two 10/100/1000MB Ethernet port with bridge function (allows
connection of another IP system) or independent interfaces
•
PoE (Power Over Ethernet), PoE+ (Power Over Ethernet Plus)
•
VLAN support
•
Securing Ethernet connections via the 802.1X protocol (RADIUS)
•
Supported languages: French/English/Spanish/Polish
•
Thanks to its embedded Web server, it can be configured, tracked and operated
from any browser
VERSIONS
•
AUDIO version with 1, 2, 3, 4 or 6 PB version: audio only
•
VIDEO version with 1, 2, 3, 4 or 6 PB version: audio and video
•

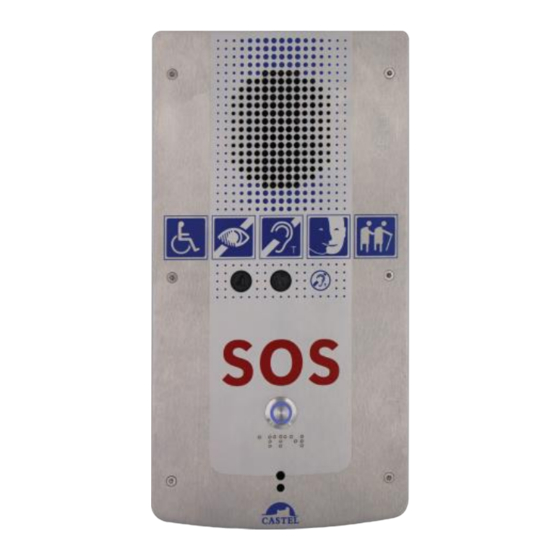

HELP version with 1 or 2 PB: audio only, illuminated call button and SOS braille inscription
•
DO version with 1, 2, 3 or 4 PB: audio and video, opening detection sensor
•
S version with 1 PB: audio only, no color LED
•
LIAISON version with 1 PB: audio only, only one colored LED
Technical data sheet no. 604-0090I
Presentation
Versions
Maintenance
Functions
www.castel.fr
Range:
INTERCOM OVER IP
Options
Connection
Technical characteristics
Series:
Installation
Use
FR
EN
Page 13 / 24
Advertisement
Related Manuals for Castel XELL IP Series
Summary of Contents for Castel XELL IP Series
- Page 1 The door entry station is a SIP intercom which integrates the following functions (depending on the version): • Establish an audio / video communication with the other devices from the Castel IP intercom range, softphones, or any other equipment compatible with the SIP standard: ↘...
- Page 2 Two digital inputs allow the connection of a dry contact (do not apply voltage). To be activated, the input must be grounded. The contact can be deported up to 1Km. Technical data sheet no. 604-0090I www.castel.fr Page 14 / 24...
- Page 3 C and NO or C and NC depending on use (diode supplied). Protection against electrostatic discharges Connect the device to the ground using the terminal provided (Mounted on the fixing of the microphone) Connection of the opening detection contact (DO version) Technical data sheet no. 604-0090I www.castel.fr Page 15 / 24...
-
Page 4: Installation
Set the entry station base in the recess using the clamps then connect the entry station. Attach the front panel with the 6 FX teat screws (TORX) M3 x 10. Technical data sheet no. 604-0090I www.castel.fr Page 16 / 24... - Page 5 Attach the front panel with the 6 FX teat screws (TORX) M3 x 10. To ensure that your intercom is watertight, it is necessary that the front panel, once mounted, rests on the entire seal between the bottom and the front panel. Technical data sheet no. 604-0090I www.castel.fr Page 17 / 24...
- Page 6 Attach the front panel with the 6 FX teat screws (TORX) M3 x 10. To ensure that your intercom is watertight, it is necessary that the front panel, once mounted, rests on the entire seal between the bottom and the front panel. Technical data sheet no. 604-0090I www.castel.fr Page 18 / 24...
- Page 7 IMPORTANT! The entry station is mounted without a base, the post must be watertight (IP 65). 6 trous taraudésM3 6 M3 drilled holes ATTENTION!!! IMPORTANT! CE PLAN N’EST THIS DRAWING IS PAS UN GABARIT NOT A TEMPLATE Découpe Technical data sheet no. 604-0090I www.castel.fr Page 19 / 24...
-
Page 8: Maintenance
MAINTENANCE Your CASTEL product must only be cleaned using a mild cleaning product (water or soapy water) that is non- abrasive, non-foaming and above all free from any type of solvent or alcohol. For regular maintenance, only use water, without detergent. - Page 9 AUDIO VIDEO IP WITH 1-6 PB DOOR ENTRY STATION FUNCTIONS The station is designed to communicate with all the devices from the Castel IP intercom range (XELLIP, CAP IP…), softphones, SIP phones or any other equipment compatible with the SIP standard.
- Page 10 Configure system data (sysContact and sysLocation) • Configure notifications (recipient, community, etc.) • Download MIB Castel It supports the SNMPv1 and SNMPv2c versions. ASCII notification function The station incorporates a notification mechanism through ASCII strings. From web pages, it is possible to: •...
- Page 11 The entry stations have a wide-angle colour camera. Rule: ‘When they are installed or renewed, the intercom devices have a magnetic induction loop.’ Entry stations have an integrated magnetic loop. Technical data sheet no. 604-0090I www.castel.fr Page 23 / 24...
-
Page 12: Technical Characteristics
Page 24 / 24 CASTEL: ZAC de La Ronde – 10 route du Bois de La Casse – 49680 NEUILLE – France Tel.: +33 (0)2.41.40.41.40 - Fax: +33 (0)2.41.40.41.49 Non-contractual photos and document. Concerned with achieving continuous improvement, CASTEL reserves the possibility of making any modification...
