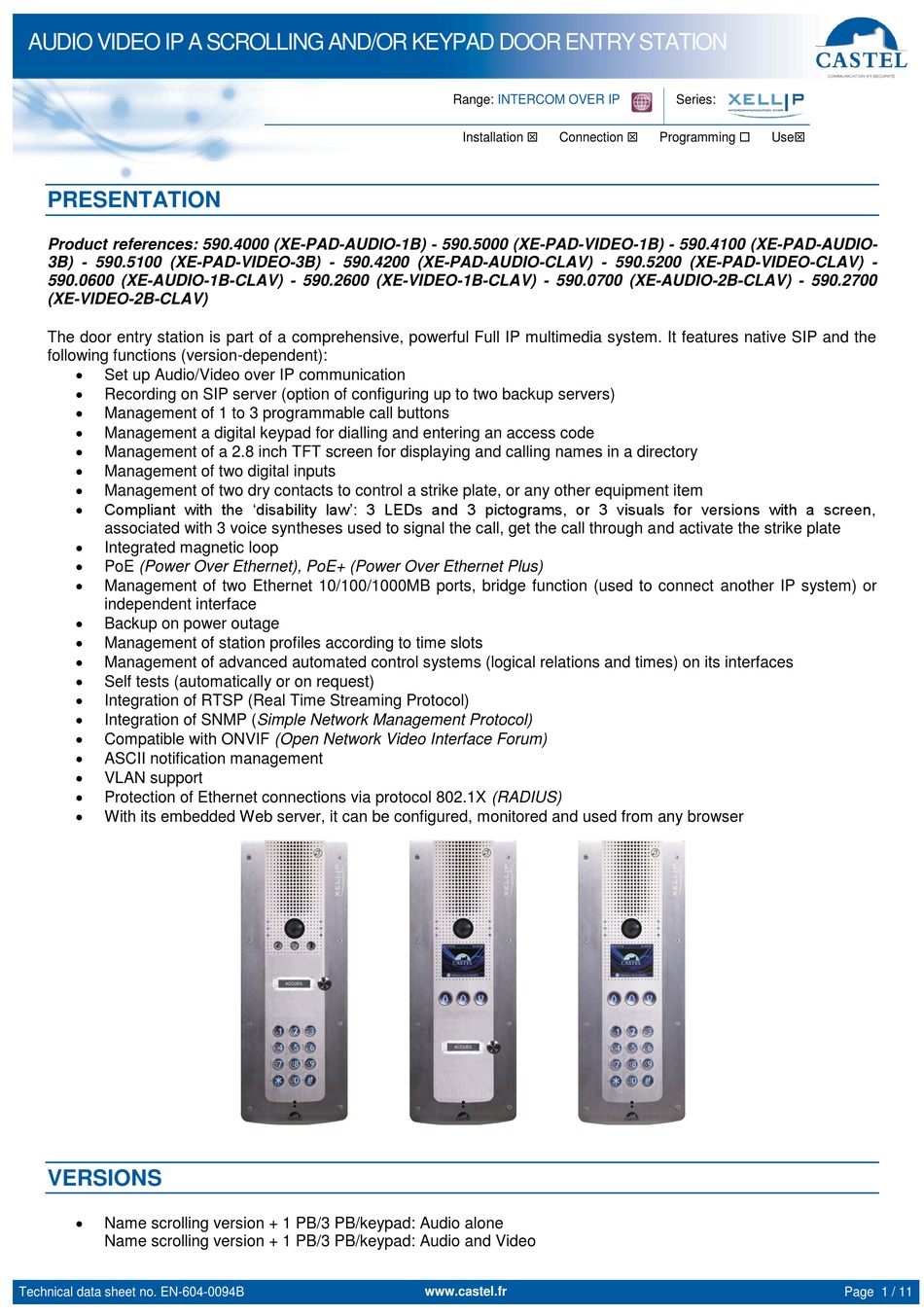

AUDIO VIDEO IP A SCROLLING AND/OR KEYPAD DOOR ENTRY STATION
PRESENTATION
Product references: 590.4000 (XE-PAD-AUDIO-1B) - 590.5000 (XE-PAD-VIDEO-1B) - 590.4100 (XE-PAD-AUDIO-
3B) - 590.5100 (XE-PAD-VIDEO-3B) - 590.4200 (XE-PAD-AUDIO-CLAV) - 590.5200 (XE-PAD-VIDEO-CLAV) -
590.0600 (XE-AUDIO-1B-CLAV) - 590.2600 (XE-VIDEO-1B-CLAV) - 590.0700 (XE-AUDIO-2B-CLAV) - 590.2700
(XE-VIDEO-2B-CLAV)

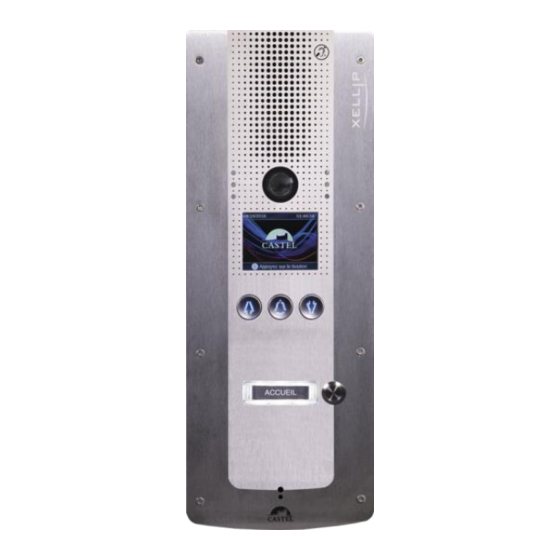

The door entry station is part of a comprehensive, powerful Full IP multimedia system. It features native SIP and the
following functions (version-dependent):
Set up Audio/Video over IP communication
Recording on SIP server (option of configuring up to two backup servers)
Management of 1 to 3 programmable call buttons
Management a digital keypad for dialling and entering an access code
Management of a 2.8 inch TFT screen for displaying and calling names in a directory
Management of two digital inputs
Management of two dry contacts to control a strike plate, or any other equipment item
Compliant with the 'disability law': 3 LEDs and 3 pictograms, or 3 visuals for versions with a screen,
associated with 3 voice syntheses used to signal the call, get the call through and activate the strike plate
Integrated magnetic loop
PoE (Power Over Ethernet), PoE+ (Power Over Ethernet Plus)
Management of two Ethernet 10/100/1000MB ports, bridge function (used to connect another IP system) or
independent interface
Backup on power outage
Management of station profiles according to time slots
Management of advanced automated control systems (logical relations and times) on its interfaces
Self tests (automatically or on request)
Integration of RTSP (Real Time Streaming Protocol)
Integration of SNMP (Simple Network Management Protocol)
Compatible with ONVIF (Open Network Video Interface Forum)
ASCII notification management
VLAN support
Protection of Ethernet connections via protocol 802.1X (RADIUS)
With its embedded Web server, it can be configured, monitored and used from any browser
VERSIONS
Name scrolling version + 1 PB/3 PB/keypad: Audio alone
Name scrolling version + 1 PB/3 PB/keypad: Audio and Video
Technical data sheet no. EN-604-0094B
Range:
INTERCOM OVER IP
Installation
Connection
www.castel.fr
Series:
Programming
Use
Page 1 / 11
Advertisement
Related Manuals for Castel XELLIP XE-PAD-AUDIO-1B
Summary of Contents for Castel XELLIP XE-PAD-AUDIO-1B
- Page 1 With its embedded Web server, it can be configured, monitored and used from any browser VERSIONS Name scrolling version + 1 PB/3 PB/keypad: Audio alone Name scrolling version + 1 PB/3 PB/keypad: Audio and Video Technical data sheet no. EN-604-0094B www.castel.fr Page 1 / 11...
- Page 2 A Loop output connects the audio induction loop. Possibility of connecting the loop ref.: 590.9040 for better range. Protection against electrostatic discharge Connect the door entry station by using the terminal supplied (mounted on microphone mount). Technical data sheet no. EN-604-0094B www.castel.fr Page 2 / 11...
-
Page 3: Installation
Mount the clamping kit (Option ref. 590.9600) on the entry station base. Set the entry station base in the recess using the clamps then connect the entry station. Attach the front panel with the 8 FX teat screws (TORX) M3-10. Technical data sheet no. EN-604-0094B www.castel.fr Page 3 / 11... - Page 4 Attach the front panel with the 8 FX teat screws (TORX) M3-10. (non-contractual image but in the correct mechanical format) Frame (Option) Flush-mounted base Front panel Screw for mounting the base on the frame Technical data sheet no. EN-604-0094B www.castel.fr Page 4 / 11...
- Page 5 Attach the front panel with the 6 FX teat screws (TORX) M3-10. Flush-mounted base Fond encastrable Casquette (Option) Hood (Option) Face avant Front panel Vis de fixation de la casquette sur le fond Screw for mounting the hood on the base Technical data sheet no. EN-604-0094B www.castel.fr Page 5 / 11...
- Page 6 IMPORTANT! The entry station is mounted without a base, the post must be watertight (IP 65). 8 M3 drilled holes 8 trous taraudés M3 IMPORTANT! ATTENTION!!! THIS DRAWING IS CE PLAN N’EST PAS UN GABARIT NOT A TEMPLATE Découpe Technical data sheet no. EN-604-0094B www.castel.fr Page 6 / 11...
-
Page 7: Maintenance
Web browser from any PC on the network and typing: ‘https://’ followed by the IP address of the entry station ([https://entry_station_ip_adresse]). You will then be directly connected to the entry station's Web page. You only have to type in your login (by default: castel) and your password (by default: castel) to access the Web server functions. - Page 8 Output interface functions Relay output type configuration: monostable, bistable or flashing Normally Open/Normally Closed contact configuration On/Off output control Open/Closed override output control Output time parameter configuration Technical data sheet no. EN-604-0094B www.castel.fr Page 8 / 11...
- Page 9 Configure different communities (read/write) Configure system data (sysContact and sysLocation) Configure notifications (recipient, community, etc.) Download MIB Castel It supports the SNMPv1 and SNMPv2c versions. Self-test function The station has several tests to validate its operation: ...
- Page 10 The entry stations have a wide angle colour camera. Rule: ‘When they are installed or renewed, the intercom devices have a magnetic induction loop. ’ Entry stations have an integrated magnetic loop. Technical data sheet no. EN-604-0094B www.castel.fr Page 10 / 11...
-
Page 11: Technical Characteristics
Page 11 / 11 CASTEL: ZAC de La Ronde – 10 route du Bois de La Casse – 49680 NEUILLE – France Tel.: +33 (0)2.41.40.41.40 - Fax: +33 (0)2.41.40.41.49 Non-contractual photos and document. Concerned with achieving continuous improvement, CASTEL reserves the possibility of making any modification...
