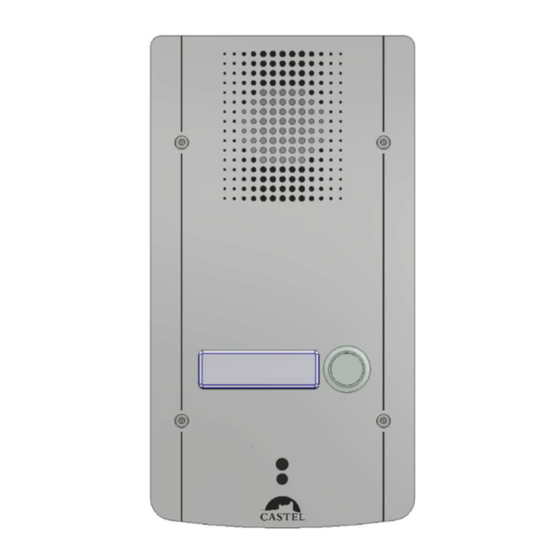

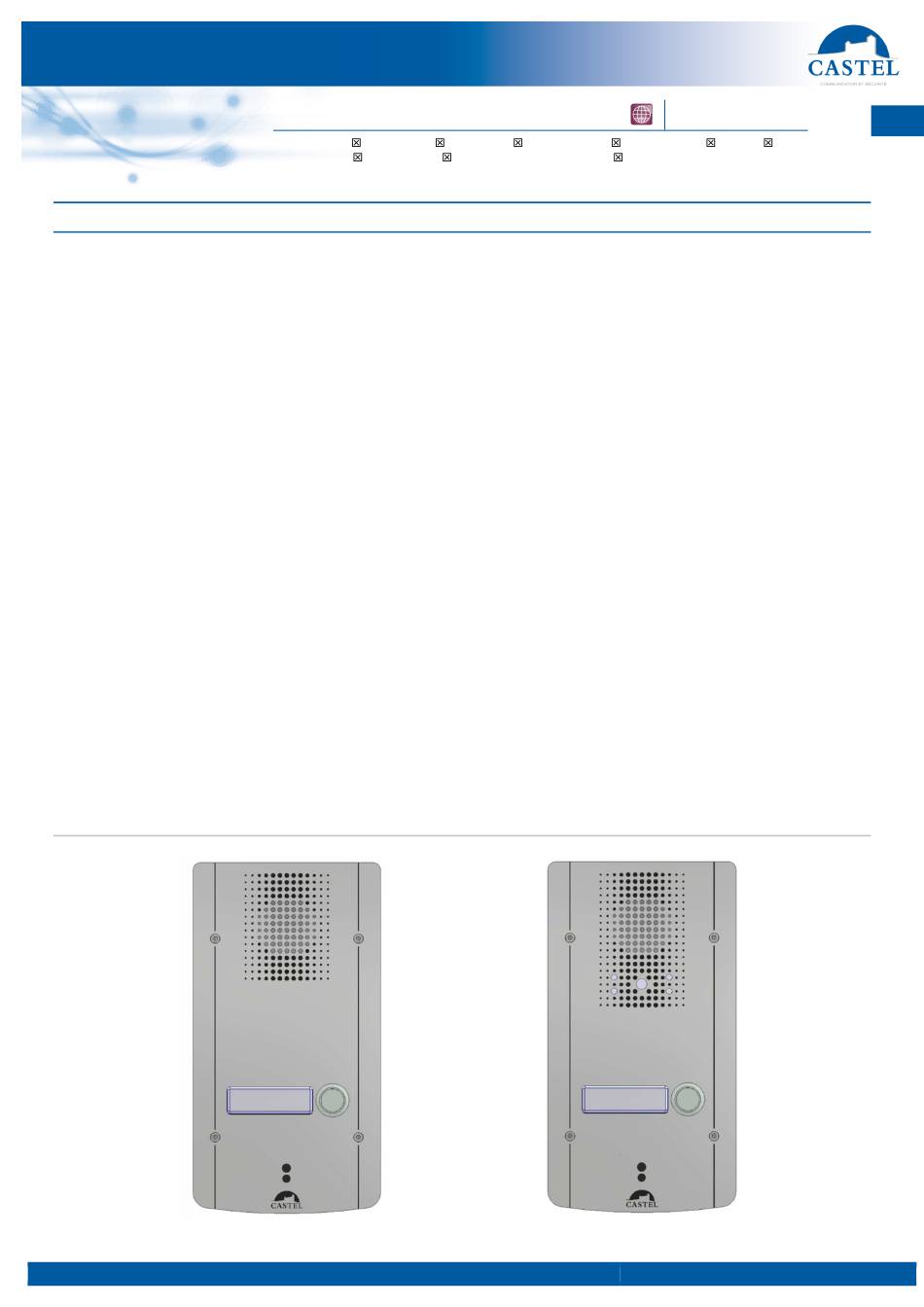

AXESS AUDIO VIDEO IP INTERCOM FROM 1 TO 4 PB
PRESENTATION
Product references: 690.0000 (AXESS AUDIO INTERCOM 1B) - 690.0100 (AXESS AUDIO INTERCOM 2B) -
690.0200 (AXESS AUDIO INTERCOM 3B) - 690.0300 (AXESS AUDIO INTERCOM 4B) - 690.2000 - (AXESS VIDEO
INTERCOM 1B) - 690.2100 (AXESS VIDEO INTERCOM 2B) - 690.2200 (AXESS VIDEO INTERCOM 3B) - 690.2300
(AXESS VIDEO INTERCOM 4B) - 690.3000 (AXESS AUDIO KIT 1B) - 690.3500 (AXESS VIDEO KIT 1B)
The door entry station is a SIP intercom which integrates the following functions (depending on the version):
•
Establish an audio / video communication with the other devices from the Castel IP intercom range,
softphones, or any other equipment compatible with the SIP standard:
↘ By peer to peer
↘ By registering on a SIP server with the possibility of configuring up to 2 backup servers and multiple
SIP accounts
•
Establish an audio communication with the other devices from the Castel digital and analog intercom range
(requires the use of an additional M-HYB-IP gateway)
•
Full HD camera (depending on model)
•
1 to 4 programmable buttons to configure the actions of your choice
•
0 to 2 "All or Nothing" inputs
•
1 dry contact to control a strike or any other equipment
•
Management of profiles, selectable by time slot or via automatisms
•
Management of advanced automation (logical and time relationships) on its interfaces
•
Self-tests that can be performed automatically or on demand
•
Integration of SNMP (Simple Network Management Protocol)
•
Integration of an ASCII string notification protocol
•
Supports of one 10/100/1000MB Ethernet port
•
PoE (Power Over Ethernet)
•
VLAN support
•
Securing Ethernet connections via the 802.1X protocol (RADIUS)
•
Supported languages: French/English/Spanish/Polish
•
With its embedded web server, it can be configured, monitored and operated from any browser
Doors entry stations
Technical data sheet no. 600-0206B
Presentation
Versions
Maintenance
Functions
www.castel.fr
Range:
INTERCOM OVER IP
Options
Connection
Technical charactéristics
Serie: aXess
Installation
Use
EN
Page 1 / 12
Advertisement
Related Manuals for Castel AXESS Series
Summary of Contents for Castel AXESS Series
- Page 1 The door entry station is a SIP intercom which integrates the following functions (depending on the version): • Establish an audio / video communication with the other devices from the Castel IP intercom range, softphones, or any other equipment compatible with the SIP standard: ↘...
- Page 2 Reference 690.2500: Belt Reference 690.2600: Claw kit (plasterboard mounting) Reference 690.2700: VL post - RAL9006 Reference 690.2800: PL post - RAL9006 Reference 690.2900: Post for cars and trucks - RAL9006 Technical data sheet no. 600-0206B www.castel.fr Page 2 / 12...
- Page 3 COM and NO or COM and NC depending on use (diode supplied). Protection against electrostatic discharges Connect the intercom to earth using the supplied lug (mounted on the front panel). Technical data sheet no. 600-0206B www.castel.fr Page 3 / 12...
-
Page 4: Installation
Fix the bottom of the intercom in the recess with the claws and connect the intercom. Fix the front panel with the 4 FX (TORX) screws with M3 x 10 studs. Technical data sheet no. 600-0206B www.castel.fr Page 4 / 12... - Page 5 Fix the front panel with the 4 FX (TORX) screws screws M3 x 10. To ensure that your intercom is watertight, it is necessary that the front panel, once mounted, rests on the entire seal between the bottom and the front panel. Technical data sheet no. 600-0206B www.castel.fr Page 5 / 12...
- Page 6 Fix the front panel to the post with the 6 FX (TORX) M3 x 10 studscrews. ATTENTION!!! As the doorkeeper is mounted without its bottom, the post must be waterproof (IP 65). Technical data sheet no. 600-0206B www.castel.fr Page 6 / 12...
-
Page 7: Maintenance
MAINTENANCE Your CASTEL product must only be cleaned using a mild cleaning product (water or soapy water) that is non-abrasive, non-foaming and above all free from any type of solvent or alcohol. For regular maintenance, only use water, without detergent. - Page 8 AXESS AUDIO VIDEO IP INTERCOM FROM 1 TO 4 PB FUNCTIONS The station is designed to communicate with all the devices from the Castel IP intercom range (XELLIP, CAP IP…), softphones, SIP phones or any other equipment compatible with the SIP standard.
- Page 9 Configure system data (sysContact and sysLocation) • Configure notifications (recipient, community...) • Download the Castel MIB It supports SNMPv1 and SNMPv2c. ASCII notification function The station incorporates a notification mechanism through ASCII strings. From the web pages, it is possible to: •...
- Page 10 When a power failure occurs, the station can save the following information: • The values of the counters • History • The backed-up events (these events are defined from CastelServeur) • Interface states Technical data sheet no. 600-0206B www.castel.fr Page 10 / 12...
-
Page 11: Technical Characteristics
Page 11 / 12 CASTEL : ZAC de La Ronde – 10 route du Bois de La Casse – 49680 NEUILLE – France Tél. : (+33) 02.41.40.41.40 - Fax : (+33) 02.41.40.41.49 Non-contractual photos and document. Concerned with achieving continuous improvement, CASTEL reserves the possibility of making any modification... - Page 12 CASTEL : ZAC de La Ronde - 10 route du Bois de La Casse - 49680 NEUILLE - France Tel: +33 (0)2.41.40.41.40 - Fax: +33 (0)2.41.40.41.49 Photos et document non contractuels. Dans un souci constant d’amélioration, CASTEL se réserve la possibilité d’apporter toute modification jugée utile.
