Recycle Disassemble Instruction
(Dismantled Information)
Requirements according to ANNEX VII of DIRECTIVE 2012/19/EU
on waste electrical and electronic equipment (WEEE)
Materials and components with hazardous content
LCDs may contain hazardous substances like Pb and BFRs which are covered by
exemptions under the RoHS directive. However, the majority is present in the printed
circuit boards assembly. In order to reduce emissions as much as possible, a complete
disposal of the old appliance is required. This treatment may only be performed in
authorized handling plants.

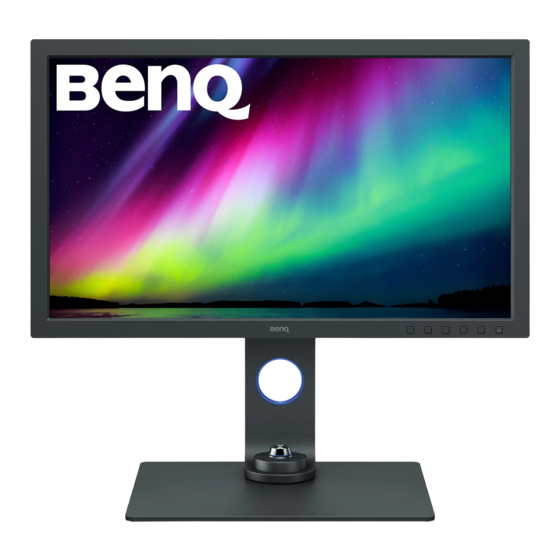

Product Name: LCD Monitor
Model No.: SW271C

Advertisement

loading
Need help?

Need help?

Do you have a question about the SW271C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BenQ SW271C

Summary of Contents for BenQ SW271C

  • Page 1 RoHS directive. However, the majority is present in the printed circuit boards assembly. In order to reduce emissions as much as possible, a complete disposal of the old appliance is required. This treatment may only be performed in authorized handling plants. Product Name: LCD Monitor Model No.: SW271C...

  • Page 2: Disassembly Tools

    Disassembly Tools Tool picture Philips Screwdriver for M3 Screw Nosed Pliers Diagonal Cutting Pliers Slotted screwdriver Six Point Sockets Philips Screwdriver for M2.5 Screw Knife...

  • Page 3: Disassembly Process

    Disassembly process 1. Disassemble process 1.1 Disassembly of the monitor head. 1.2 Disassemble the stand from the head. 1.3 Remove the mylar from the head.
  • Page 4 1.4 Remove the screws from the RC.
  • Page 5 1.5 Disassemble the RC from the FC. 1.6 Remove the tapes and mylars from the SHD and PNL.
  • Page 6 1.7 Remove the mylar and the tape from the PNL and the SHD. 1.8 Take the conductive tape away from the PNL. 1.9 Unscrew the screws from the SHD.
  • Page 7 1.10 Take the PCABs out of the SHD. 1.11 Remove the sponge and the screws from the FC. 1.12 Uninstall the CTRL BD from the FC.
  • Page 8 Disassembly of the stand 1. Disassemble Column a. Remove VESA plate& VESA cover by loosing screws. b. Remove hinge cover front by loosing screws. c. Remove column cover by hand.
  • Page 9 d. Remove slider from column housing by loosing screws. e. Remove spring by loosing screw. f. Remove Lift BKT by loosing screw.
  • Page 10 g. Remove ASSY Rail by loosing screws. h. Remove ASSY Swivel by loosing screws. i. Remove Ring cover by knife.
  • Page 11 Disassemble Base Remove base cover by loosing screw and knife.
  • Page 12 Disassembly of the hood 1. Use the knife to remove the cloth and sponges from the hood side R. 2. Use the knife to remove the cloth and sponges from the hood side L. 3. Use the knife to remove the cloth and sponges from the hood extend R.
  • Page 13 4. Use the knife to remove the clothe and sponges from the hood extend L. 5. Remove the cloth and sponges from the hood top R by knife. 6. Remove the cloth and sponges from the hood top L by knife.
  • Page 14 7. Use the knife to remove the cloths from the hood brige H bkt and window. 8. Use the knife to remove the cloths from the hood brige V bkt and window. Disassembly Time Total time: 30 minutes...
